SECTION 3.DISASSEMBLY,INSPECTION,AND REASSEMBLY
Separate the rear axle housing from the rear transmission referring to paragraph 6 of SECTION 3.
SEPARATION OF MAJOR BLOCKS in Chapter 2
1) REAR AXLE HOUSING AND BRAKE SYSTEM
7-3

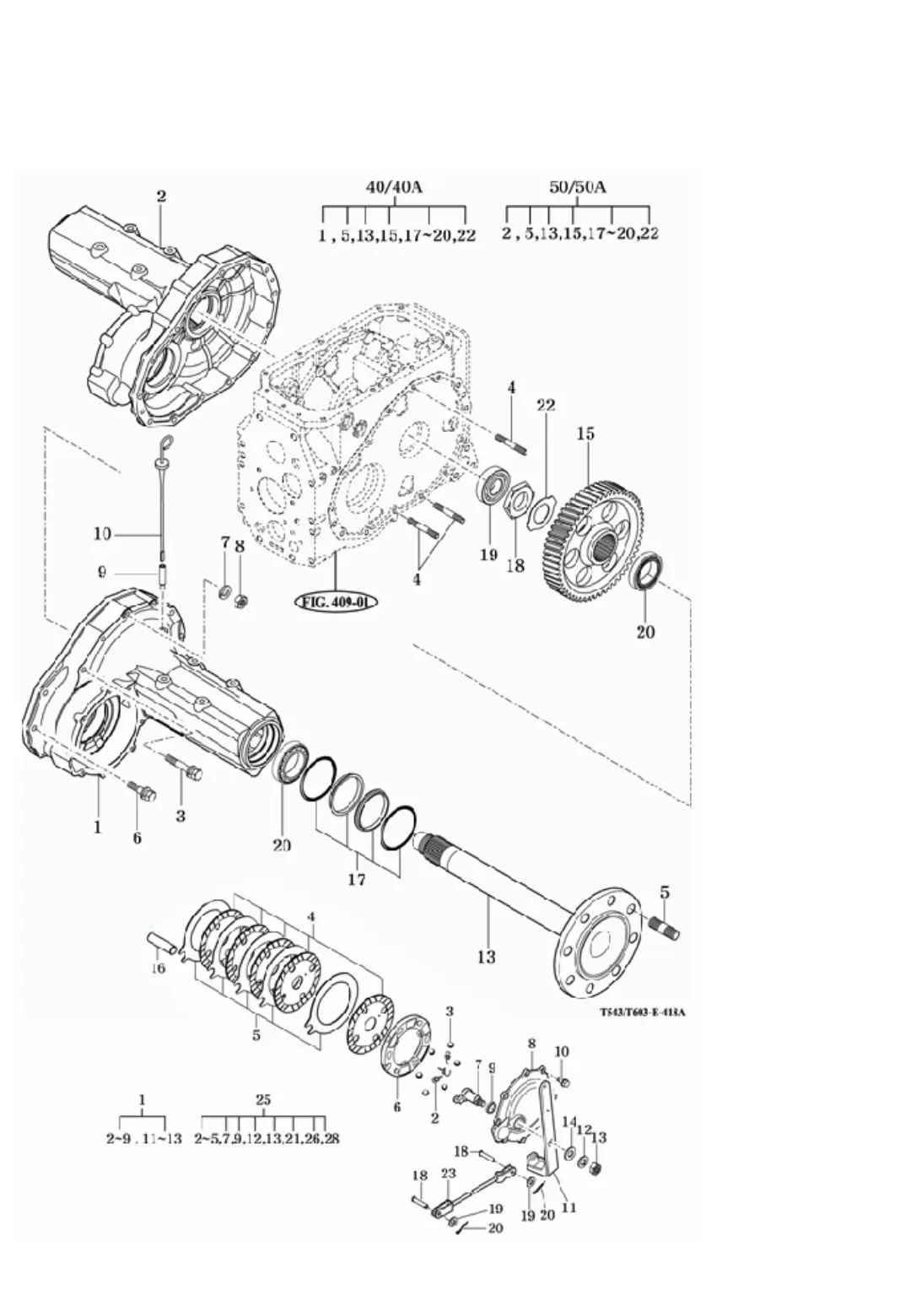

Fig.7-2
1.Housing(Axle,LH)
2.Housing(Axle,RH)
3.4.5.6.Bolt
7.Washer spring
8.Spring washer
9. Guide
10.Oil gauge
13.Wheel shaft
15.Helical gear(54T)
17.Mechanical seal
18.Nut(M50x1.5p)
19.Ball bearing
20.Taper roller bearing
22.Lock washer
1.Brake assy LH
2.Return spring
3.Steel ball
4.Brake disk comp
5.Separate plate
6.Brake metal LH
7.Brake cam
8.Cover LH
9.Oil seal
10.Bolt
11.Brake arm
12.Spring washer
13.Nut
14.Washer
16.Torque pin
18.Yoke pin
19.Washer
20.Split pin
21.Brake arm LH
23.Brake rod LH
24.Brake rod RH
25.Brake assy RH
26.Brake metal RH
28.Cover RH
