TYM T723 User Manual

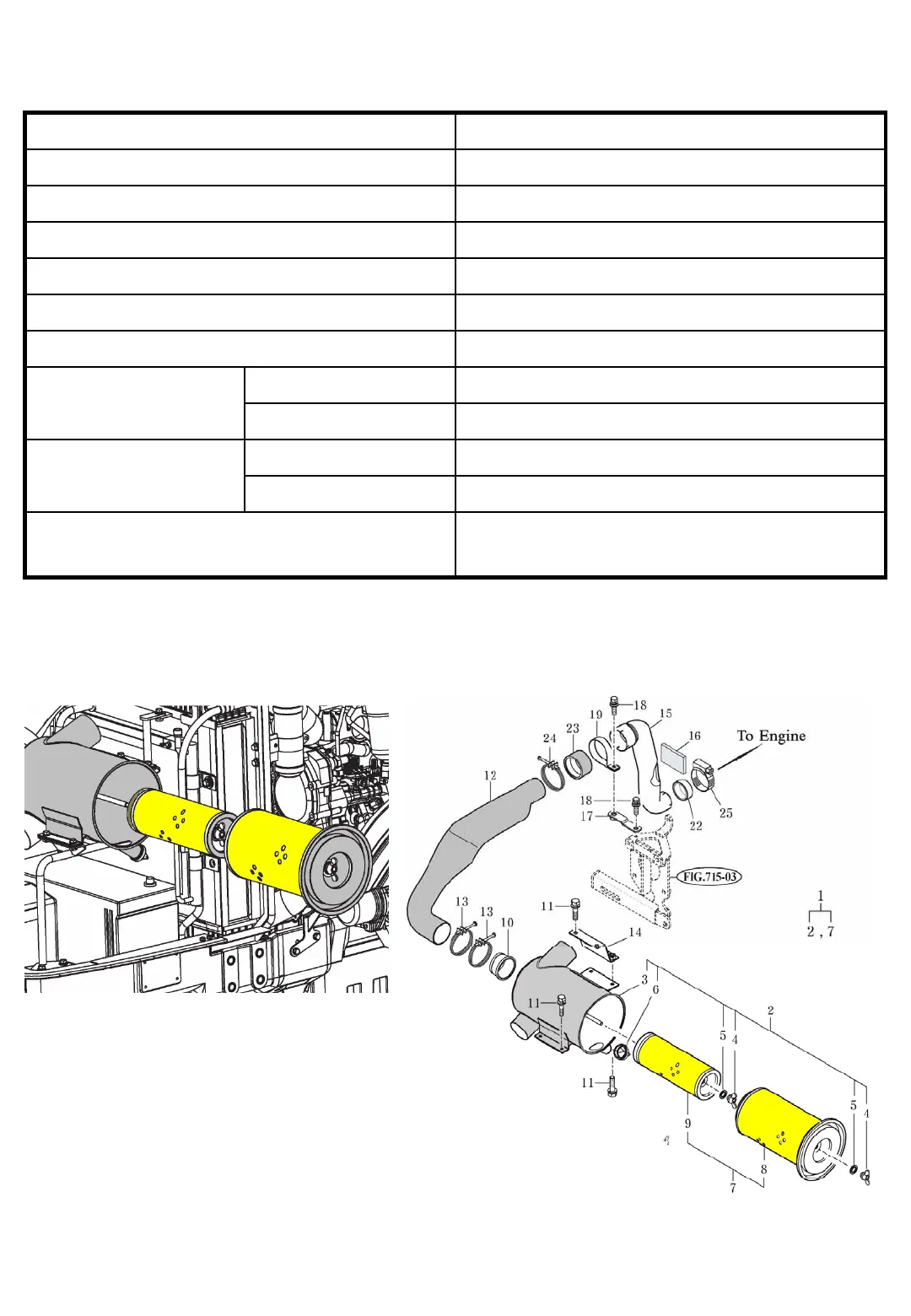

2.ELEMENT AIR CLEANER
1) SPECIFICATIONS.
2) DISASSEMBLY
(1) Element removal
Remove the wing bolt which clamps the paper
element and take out the element.
2.Air cleaner
3.Body ass’y
4.Wing Nut
5.Packing
6.Valve
7.Element set
8.Element(outlet)
9.Element(Inlet)
10.Gasket
12.Pipe(inlet)
15.Hose(inlet)
3-8
FIG.3-11
Model T723
Type Dry, paper element filtering type
Rated intake air volume (㎥/min) 3.9
air venting resistance (mmAq) 120 or less
Cyclone efficiency (%) 45 or over
Total filtering efficiency(%) 99.9 or Over
Push holding capacity (gr) 700
Filter area (㎡)(sq.in) Outer element 1.89±4%
Inner element 0.39±4%
Filter material Outer element AS 42
Inner element AS 42
Remarks Tested Dust :SAE Fine
Dust density :1.0 gr/㎡ (0.93 gr/sq.ft)
