SECTION 3. DISASSEMBLY AND ADJUSTMENT
1.HYDRAULIC SYSTEM

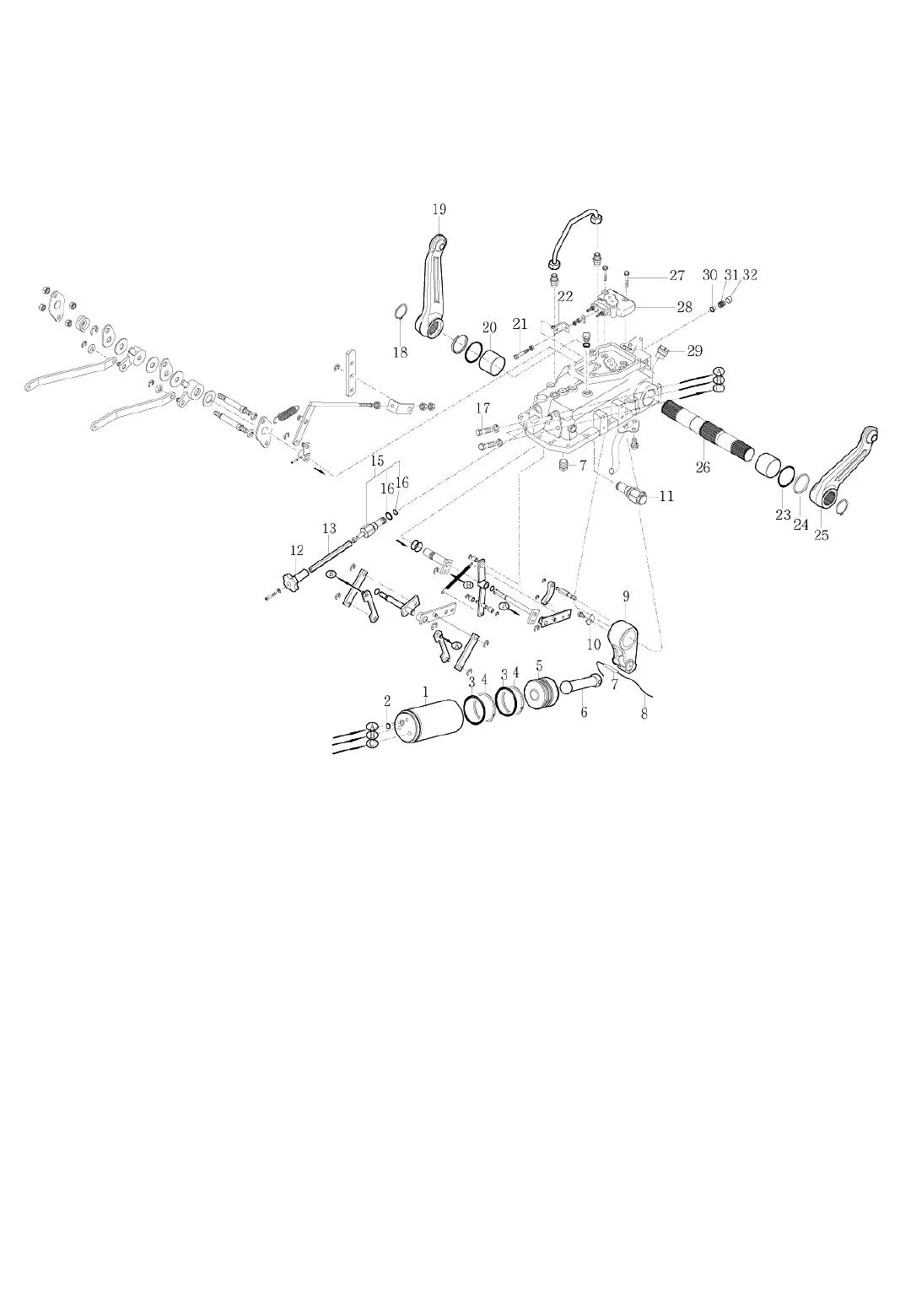

Fig.9-2
1.Cylinder 2. O-ring 3.O-ring 4.Ring 5.Piston,Hyd. 6.Rod piston 7. Pin 8. Wire.
9.Lift crank 10.Plate 11.Relief valve 12.Knob 13.Shaft 15.Valve flow control
16. O-ring 17.Bolt(M12) 18. C-ring(shaft) 19.Arm,Lift
20.Bush(50X55X44) 21.Bolt(M8X50) 22.Clevis 23.O-ring 24.Ring, back up
25.Arn,Lift 26.Bar 27.Bolt(M8X45) 28.Valve, Main control
29.Cap oil 30. Filter 31.Spring 32. Plug, PTO
