2-19
7. SEPARATION OF THE REAR RANSMISSION AND CYLINDER CASE
Parts which can be inspected during This operation
-Control valve
-Control linkage
-Piston and lift crank linkage
-PTO change gears.
-differential gear
Inspection and service of the rear transmission
should be performed following the instructions
in the paragraph : 4. SEPARATION OF THE
FRONT TRANSMISSION AND SPACER
TRANSMISSION
(1)Removal
1) Remove the the cabin referring to :
SECTION 3-4-(1)-11) A:Removal of the cabin”
2) When the tractor is equipped with an optional
auxiliary valve, remove the slow-return shaft,
the delivery pipe and the levers.
3) Remove the 3-point lift link and related
parts from the lift arm.
Delivery pipe
Slow-return valve

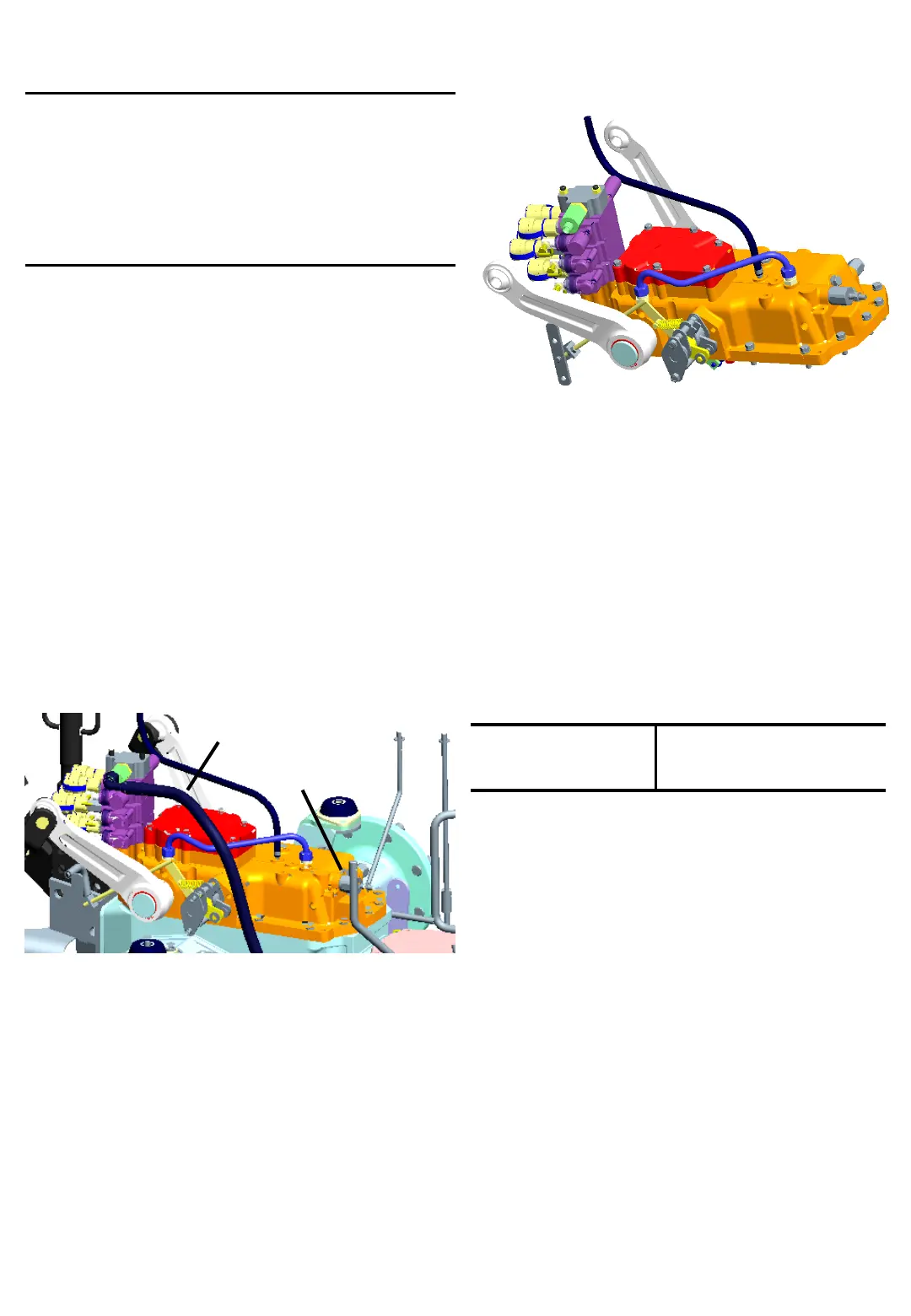

Fig.2-64 The state under removal
Fig.2-65 Cylinder case assembly
4) Remove the Cylinder case tightening bolts.
5) Detach the cylinder case assembly from the
rear transmission
(2) Installation
Reassemble the reverse order of disassemble.
1) Tighten the cylinder case on the rear
transmission case to the specified torque.
Tightening torque 550~700 Kgf-cm
(40.5~51.6 lb.fts)
2) After reassembly, make sure that the system
functions properly.
