7.GEAR PUMP
7.1 GENERAL DESCRIPTION
This pump induces fluid from one side and delivers it from the other side,by rotating two gears
meshed with each other. The actual delivery is as mentioned below,considering the consequences of
fluid temperature and volume efficiency in accordance with revolution speed. That is dual pump
system.
9-28
7. 2 OPERATIONS.
This pump induces fluid from one side and
delivers it from the other side,by rotating two
gears meshed with each other. The actual
delivery is as mentioned Fig.9-51,Considering
the consequences of fluid Temperature and
volume efficiency in accordance with revolution
speed.

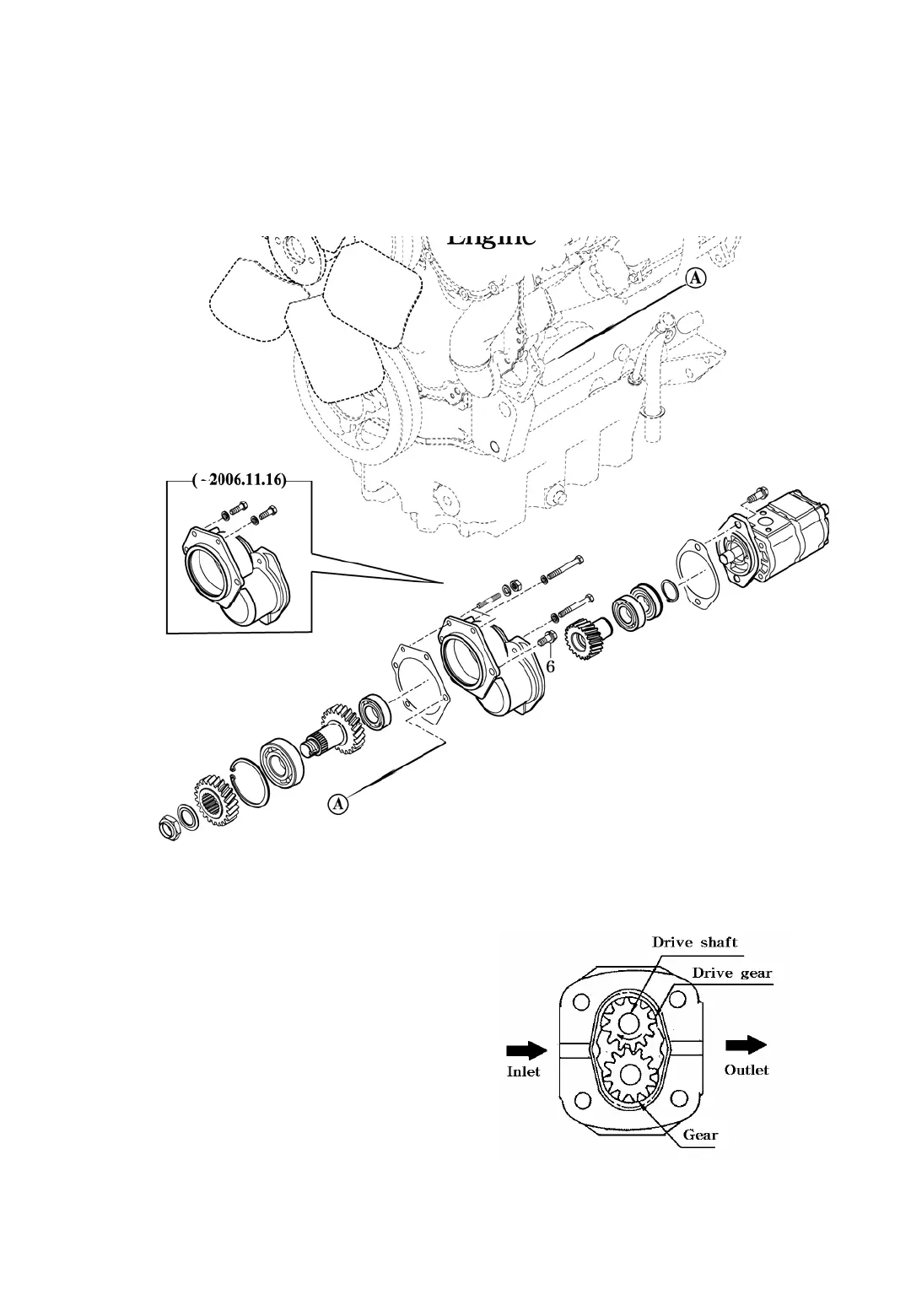

Fig. 9-51 Gear pump
Fig. 9-50 Gear pump
(Main Gear pump)
(Steering Gear pump)
