3-2. Front gear case 2.

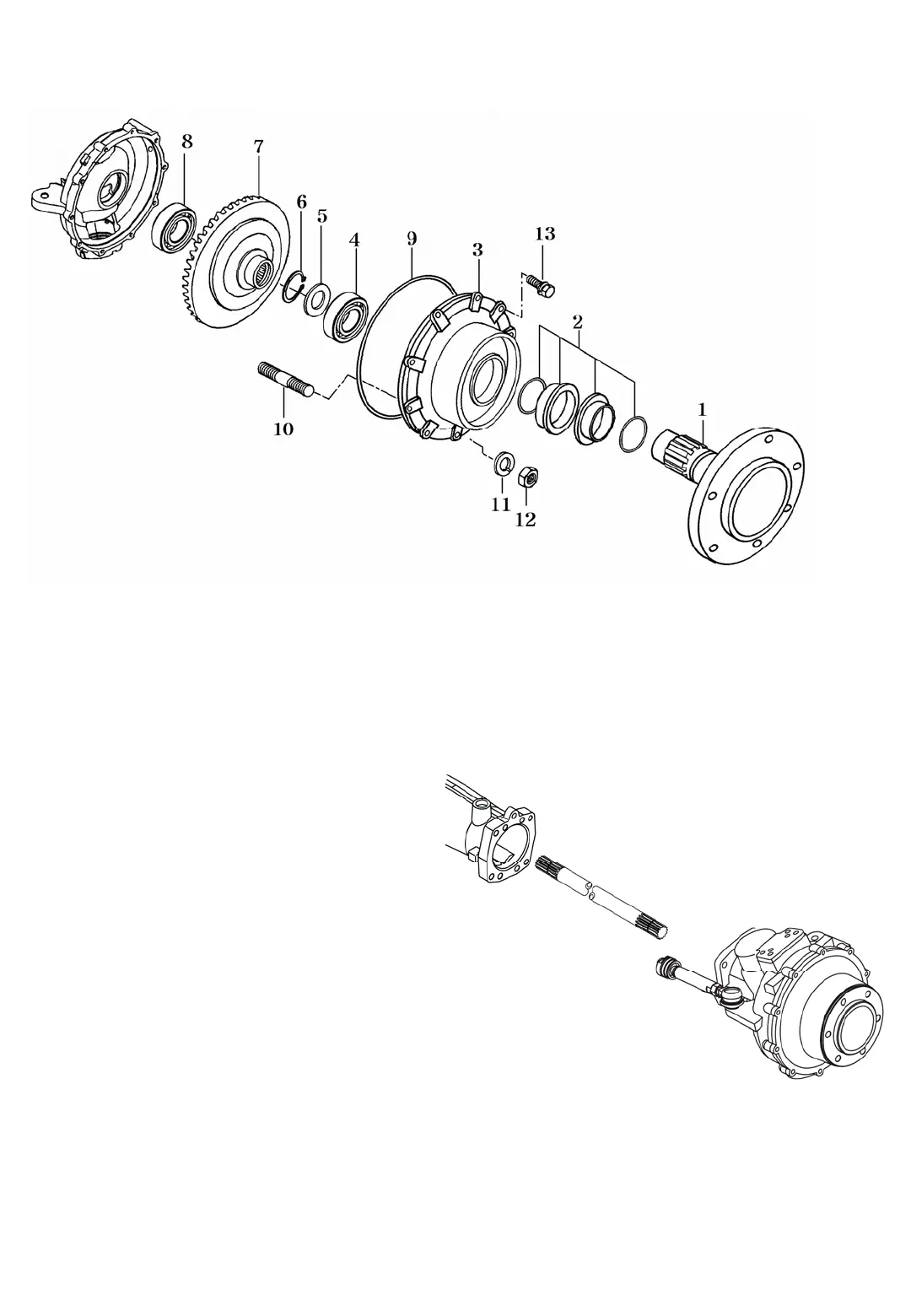

1.Shaft wheel 2. Mechanical seal 3.Cover 4.Ball bearing 5.Washer(50.5X60X3)
6.Snap ring 7.Gear(bevel 10-43) 8.Ball bearing 9.O-ring 10. Stud 11. Washer spring
12. Nut 13. Bolt
3.1 Disassembly
1) Drain oil from the final case by removing the
drain plug.
2) Remove the tie rod or the tie rod end.
3) Remove the final drive case clamping bolts and
take out the assembly of the wheel shaft,
4) Remove the wheel shaft cover clamping bolts
and cap (100)
Note:
Discard the removed Cap(100) and install a
new cap(100) when reassembled,because
this cap is apt to be damaged when removed.
5) Detach the snap ring C from the bevel gear.
6) Extract the wheel shaft bearing together with
the bevel gear,using a bearing puller
Fig.6-20
Fig.6-19
