8) Adjust backlash between gear bevel and
gear bevel (2) with collar
Back lash
mm(in)
0.1-0.2
(0.003-0.008 in)
9) Apply an adhesive to the Cap (100),and be
sure not to deform when installing.
Note: Refer to Fig.6-23

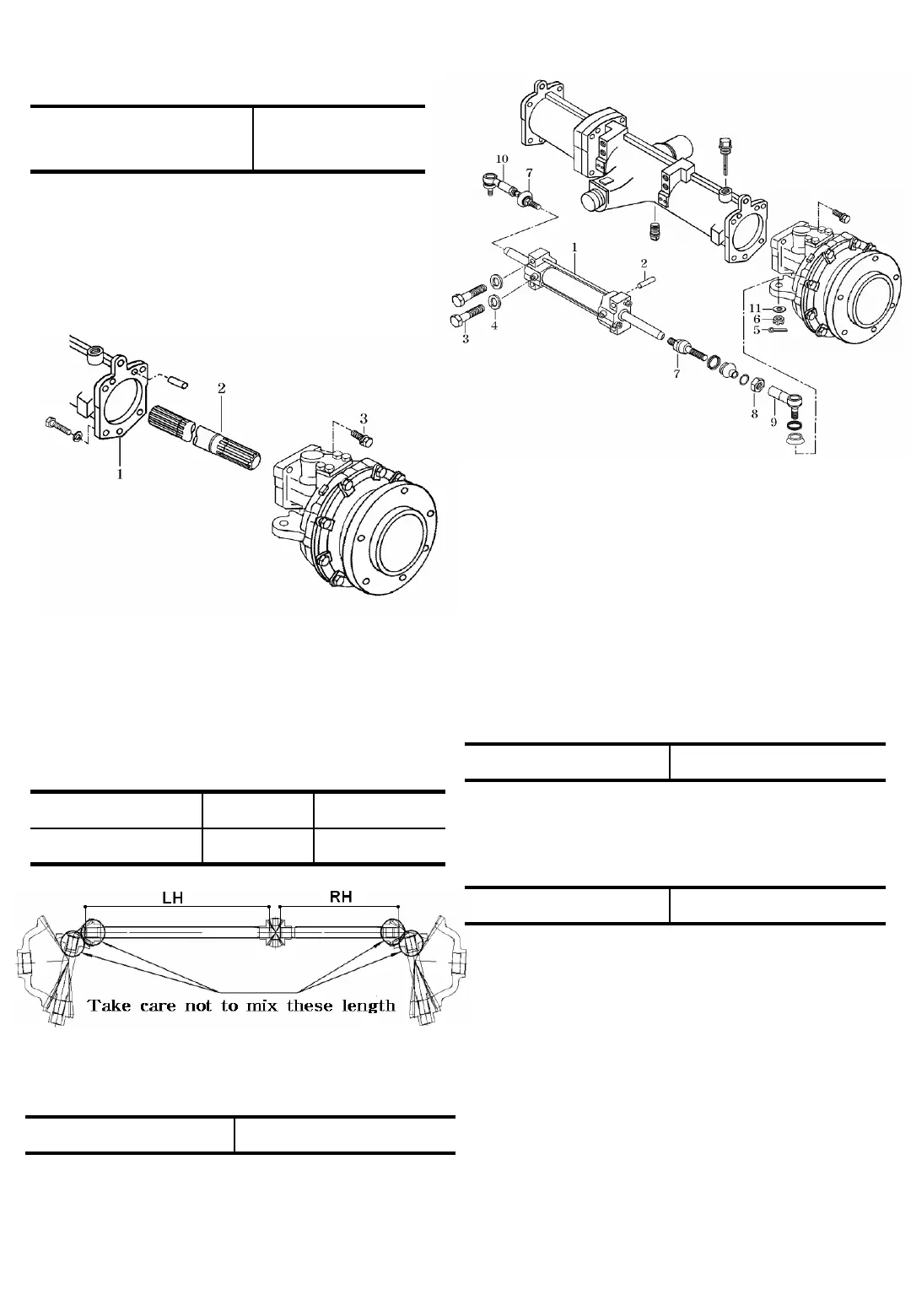

- FINAL DRIVE CASE AND HOUSING
1) When installing the shaft, Be sure that the gears
are not damaged.
2) Be sure the differences between the LH and
RH shaft.
LH RH
Specified length 603.3mm 382.3mm
Fig.6-29
3) Tighten the bolts to specified torque.
Tightening torque 1300-1500 Kgf.cm
- STEERING CYLINDER
1) When installing the steering cylinder,Be sure
that the rods are not damaged.
2) Install the pin(2) before assembling the cylinder.
3) Apply an adhesive Locktite and tighten the bolts
to specified torque
Tightening torque 900-1100 Kgf.cm
4) Apply an adhesive locktite to the ball joint (7)
and tighten the ball joint to specified torque
Tightening torque 2400-2600 Kgf.cm
5) Be sure to bend the split pin (5) after installing
the ball joint
Fig.6-28
Fig.6-30
