4) Replace the mechanical seal.
Install the taper roller bearing into the axle
housing, and the mechanical seal by the special
tool as shown in the figure(Fig.7-8)
5) Install the wheel gear and bearing on the
wheel shaft and retain them with nut.
6) Apply adhesive (THREE BOND 1215) to the
contact surfaces of the brake cover and the
housing and then retain the plates by tightening
the nuts to the specified torque or the specified
dimension.

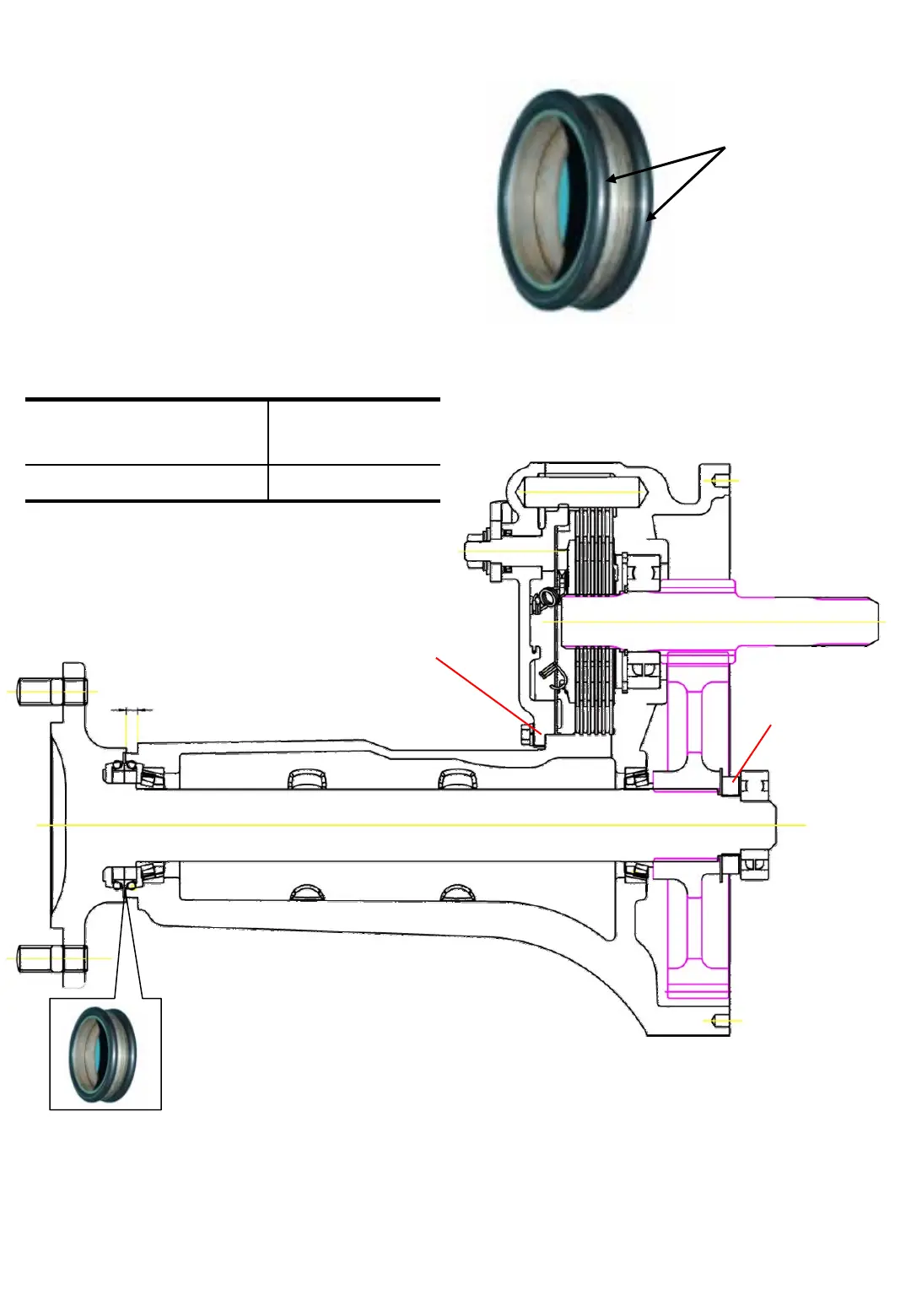

Fig.7-9
9.4±0.1
Mechanical seal
Apply adhesive
(TB 1215)
Lock nut
Wheel shaft
Tightening torque 0.6-0.8 Kgf.m
(4.3-5.8ft-lbs)
Dimension 9.4±0.1
Take care not to deform
these portions
