8-10
NOTE: Make sure the centering spring notches
locate correctly into the sleeve.

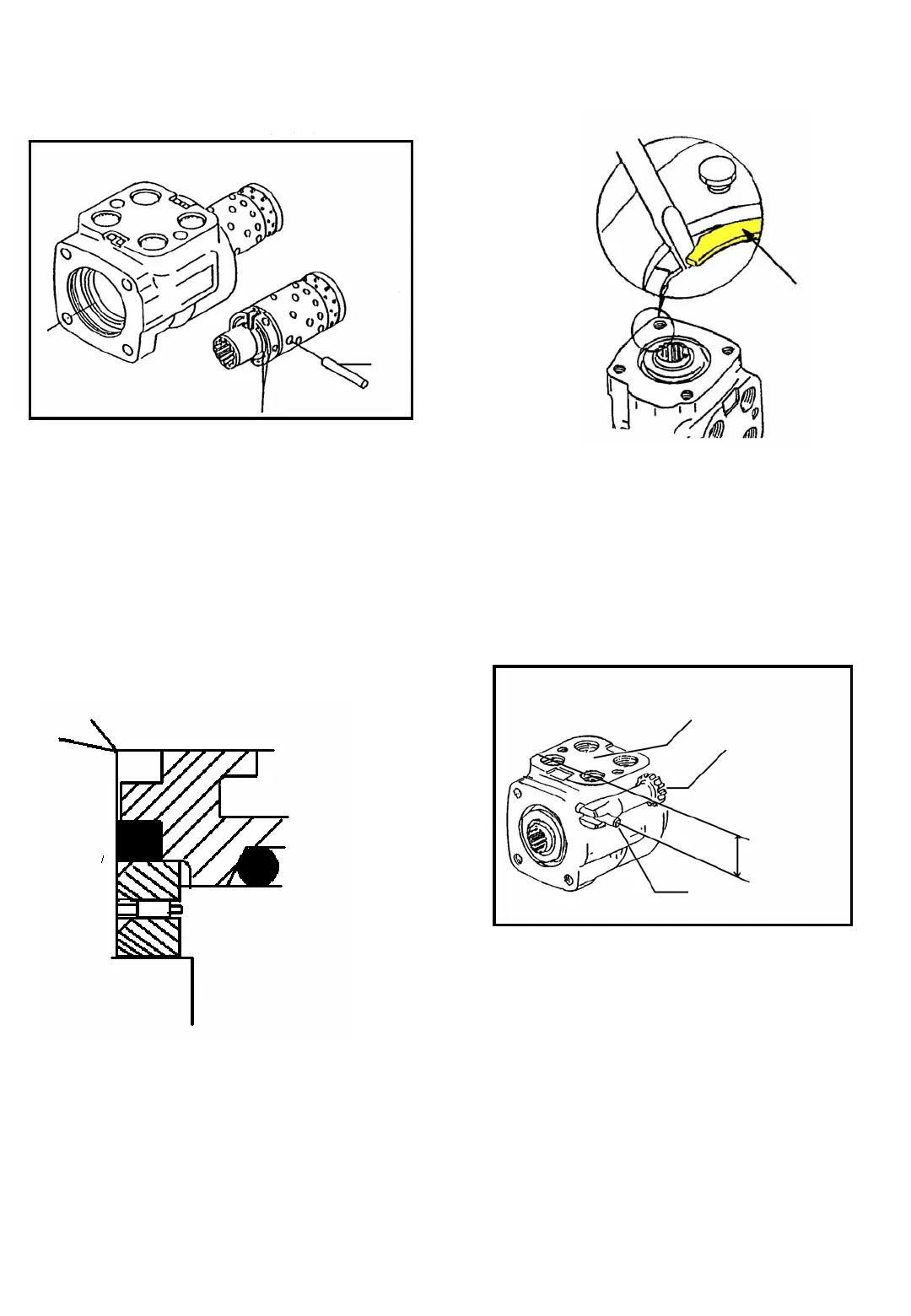

STEP 13
install pin into sleeve assembly and install sleeve
into the pump body.
NOTE:Heat from your hands may expand spool
and sleeve assembly,preventing the assembly
being installed,DO NOT use force to install spool
and sleeve assembly.Allow the assembly to cool
and repeat STEP 13.
STEP 14.
Install thrust washer,thrust bearing and thrust
washer onto spool.lubricate a new o-ring and seal
ring.install o-ring into the pump body and install
seal ring onto spool.Install the seal bushing with a
slight twisting motion,use a soft faced hammer and
tap the bushing into position against the thrust
washer.
Install spiral retaining ring into the the groove in the
pump body.Use a screwdriver to make sure the
spiral retaining ring is located correctly into the
groove in the pump body.
STEP 16.
Carefully turn sleeve assembly until pin is
parallel to hydraulic fitting mounting face as
shown.
Pin
STEP 15.
