Align the marks made in STEP 2,and install the
end cap.Install and evenly tighten the torx hand
screws in two stages to a torque of 17 Nm(12 lb ft)
then to 25 to 30 Nm (19 to 22lb ft) in the sequence
shown.
NOTE: The torx head bolts must by dry and clean
of oil.
STEP 23

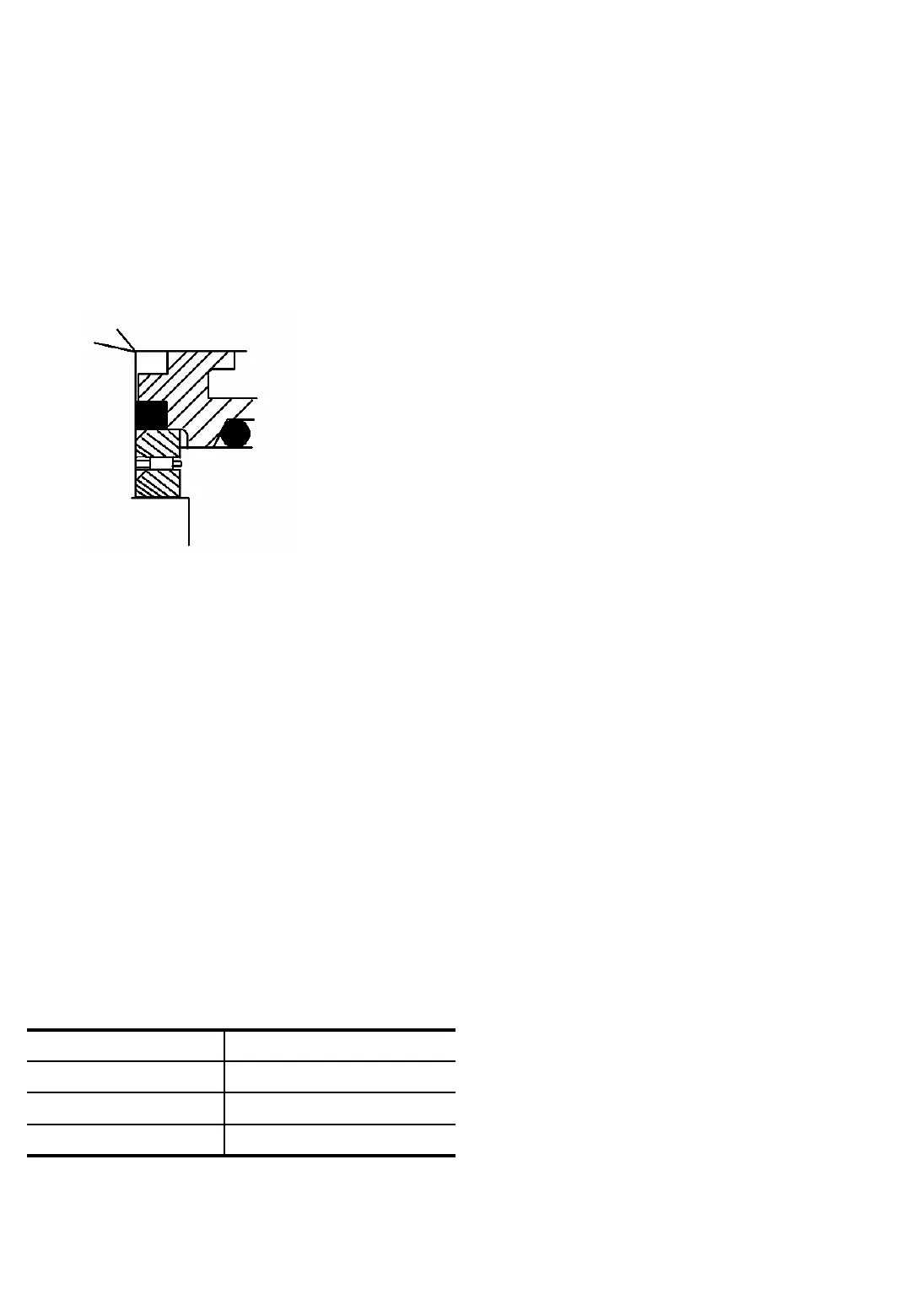

Install a new dust seal into seal bushing.
STEP 24
Install clean transmission oil into the return port
and supply port.Cover all the ports with a clean
cloth and slowly turn the pump input shaft
clockwise and counterclockwise.
STEP 25
Repeat STEP 24 until the steering hand pump is
primed of oil.
STEP 26
Lubricate new o-rings with clean transmission oil.
Install the o-rings onto the fittings.Install and
tighten the fittings.
Volume(㏄/rev) Tighten torque(㎏f·m)
51∼230 2.3
277 2.4
369∼737 2.9
8-12
