9-7

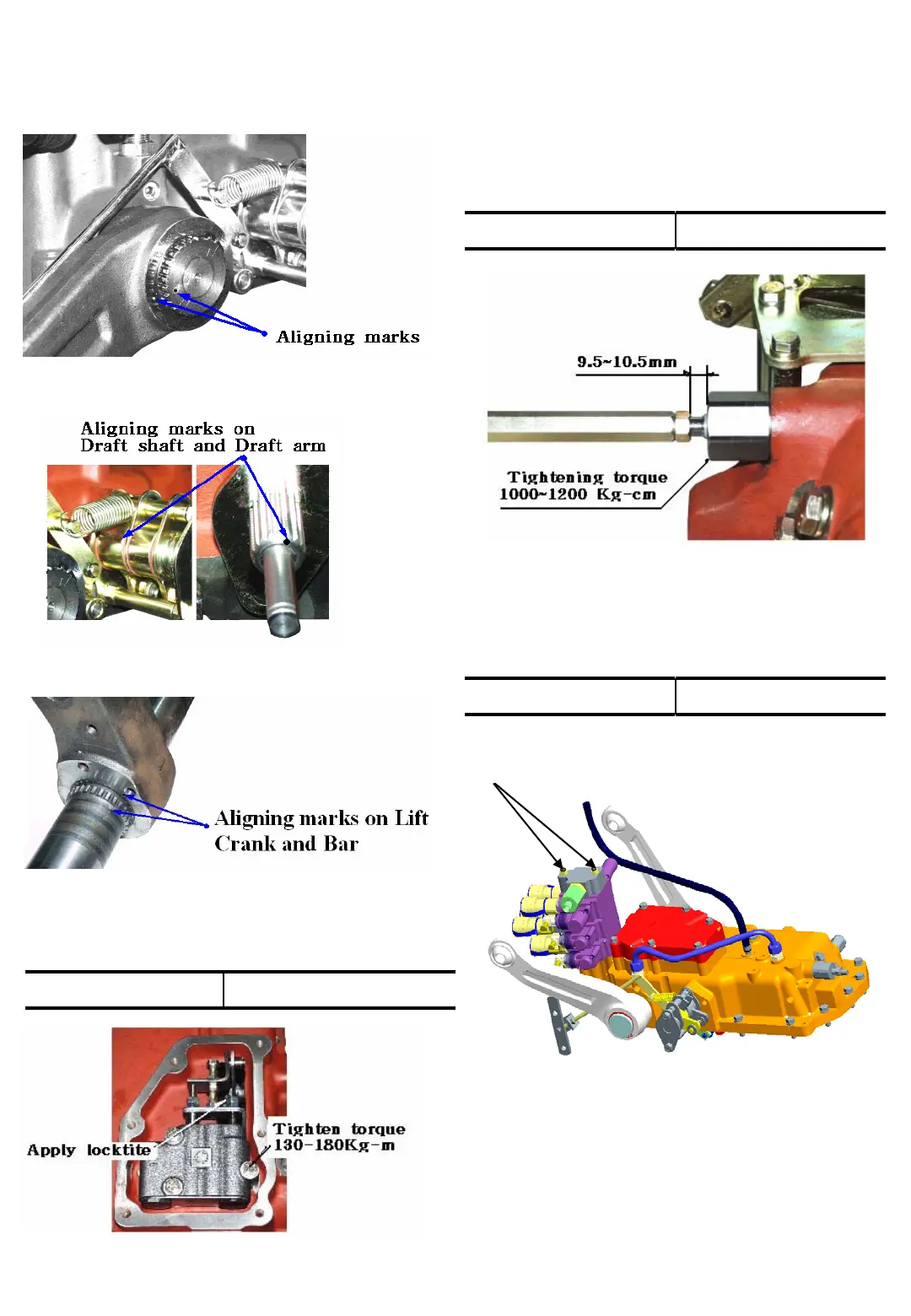

5) When assembling the lift crank on the lift
shaft,mesh their splines using the alignment
marks which were put their before Disassembly
Fig.9-13
Fig.9-14
Fig.9-15
6) Tighten the Main valve securely to the specified
torque
Fig.9-16
Tightening torque 130~180 Kg.cm
7) When installing the control valve,apply grease
to the o-rings and avoid their dislocation or
binding during tightening the valve to the
specified torque
8) Tighten the slow return check valve to the
specified torque
Fig.9-17
Tightening torque 1000~1200 Kg.cm
Fig.9-18
9) Tighten the Exterior valve
(remote control valve) to the specified torque
Tightening torque 200~250 Kg.cm
Tightening:200~250kg
