VENTILATION
The ventilation unit is housed in the cab ceiling.
To switch it on and adjust it, turn the electrical fan switch to the desired speed.
The cab becomes slightly pressurized when the ventilation system is in operation, so that fresh air can
enter only by way of the filter installed in the rear section of the cab roof.
The fan switch can be operated only after the ignition key is inserted.
The air flow can be regulated and directed by suitable positioning of the air diffusers.
Air can be taken in fresh from outside or re-circulated from within the cab by way of the relative side
inlets
Re-circulation inlets fully closed: air is taken in entirely from outside the cab through the rear grille
and filtered through a paper element positioned behind the grille.
N.B-it is very important that the air diffusers never be completed closed so as to allow for a steady air
flow.
To obtain greater pressurization inside the cab, it is necessary to take air from the outside, therefore
the inside air re-circulating grille should be fully closed.

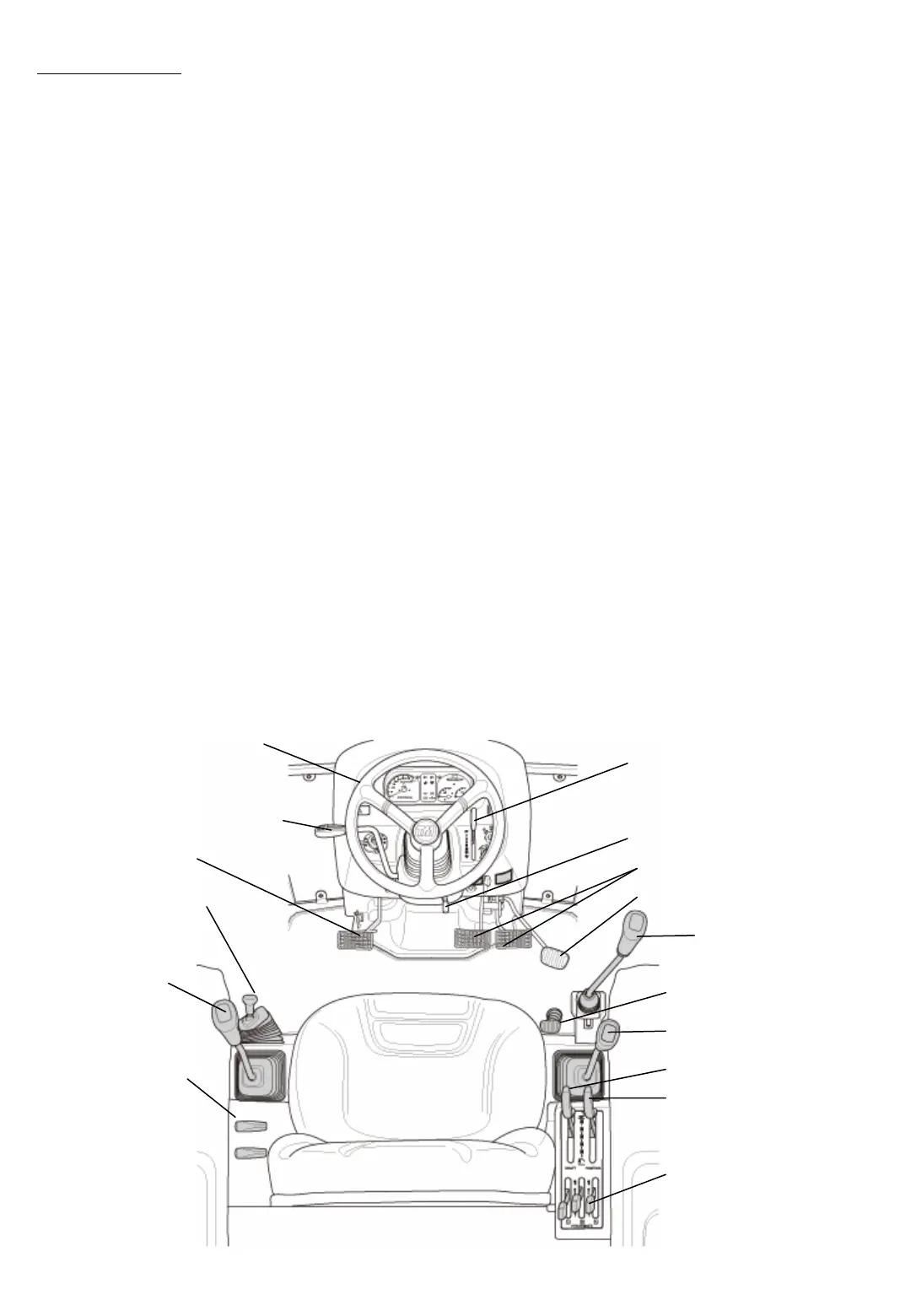

Steering Wheel
Shuttle Shift Lever
PTO Shift Lever
Sub Shift Lever
4WD Shift Lever
Throttle Lever
Tilt Pedal
Brake Pedal
Acceleration Pedal
Clutch Pedal
Joy Stick Lever
Diff-Lock Pedal
Main Shift Lever
Draft Control Lever
Position Lever
Auxiliary Valve Lever
