TYM T723 User Manual

5) Disconnect the battery cables and fuel line.
6) Disconnect the wiring couplers from the
main harness
7) Remove the three hoses for the power steering
system
8) Remove the heater hose and the quick coupler
(Freezer hose)

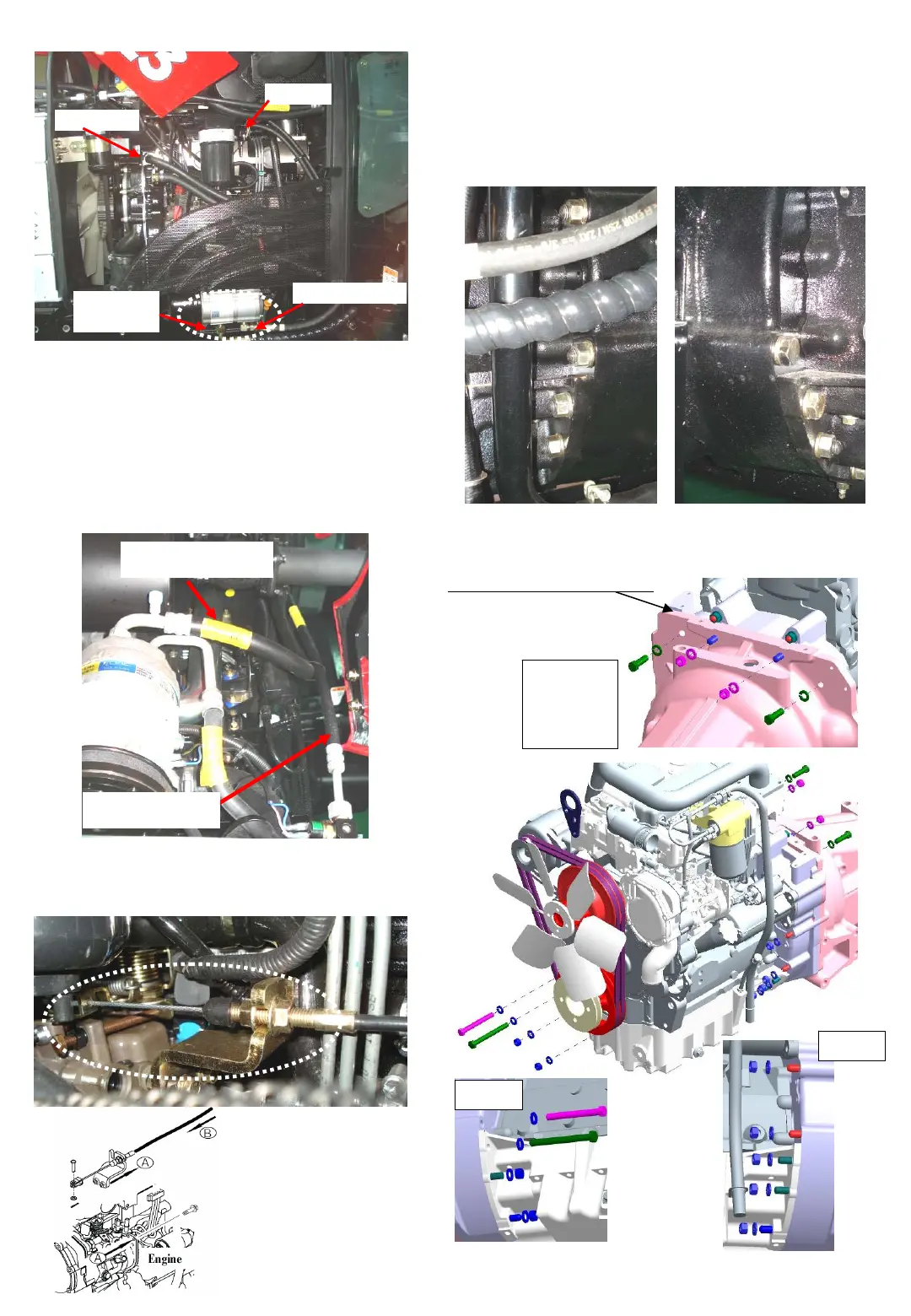

Fig.2-14
9) Remove the accelerator wire
10) Remove the hydraulic hose from the gear pump
11) Remove the muffler from the engine assembly
12) Separate the engine from the transmission
assembly after removing the bolts to the below
description.
LH:5x Nuts RH:2x bolts, 2x Nuts
2-8
Fig.2-16
Fig.2-17
Fig.2-19
RH
LH
Upper :
2x bolts
2x Nuts
The point to be separated
Fig.2-18
Heater hose
Hydraulic
hose
Steering hose
Fuel line
High pressure
Low pressure
