2. Radiator
The radiator consists of radiator cores, a tank
to Flow coolant,side plates to install the radiator,
and a fan guide.
Fin-tube type cores are used and the cores and
tank is made of anti corrosive copper and
Copper alloy.

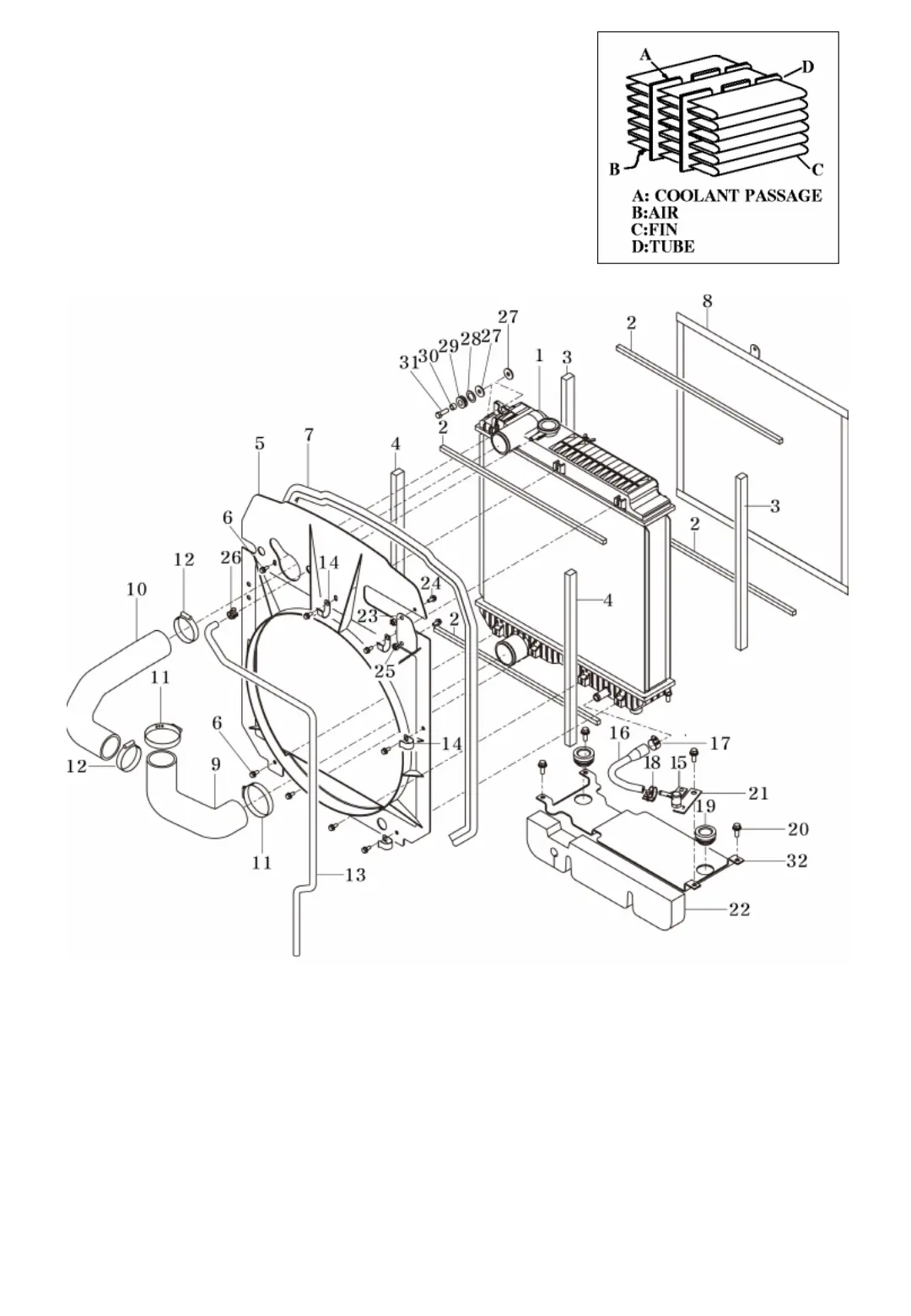

1. Radiator assy 5. Shroud 9. Hose (Radiator/Outlet)
10. Hose (Radiator/Inlet) 11. Clip 12. Clip
15. Connector 16. Hose 17. Clip
3-2
Fig.3-3
