UAV-1004234-001, AV-30-E Installation Manual 49
Rev H

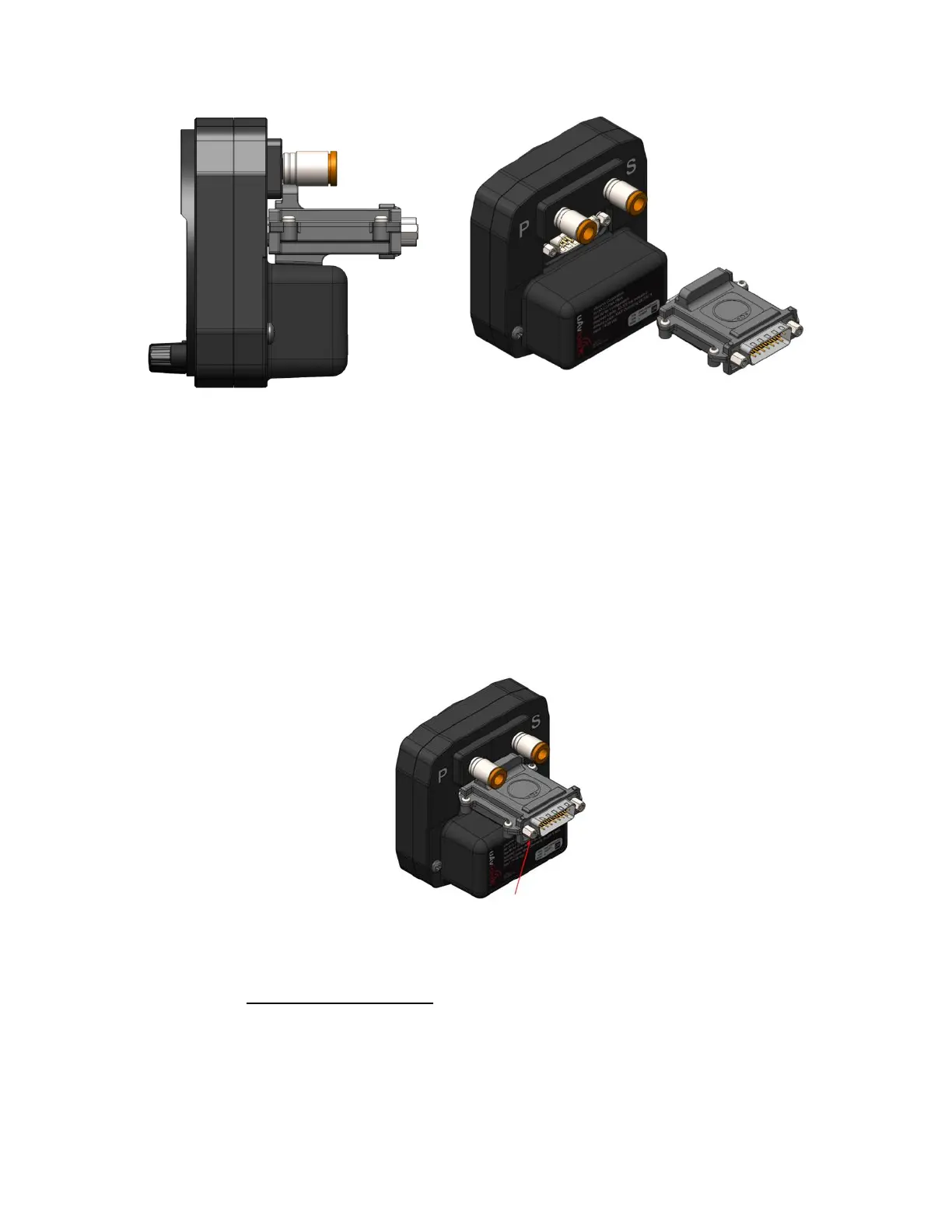

Figure 18 - AV-Link attachment
Do not push against the Jack Screws as they will stop against the screw
bosses on the AV-30 connector preventing proper seating of AV-Link.
Also, make sure to seat AV-Link completely before tightening the Jack
Screws.
Do not attempt to use the Jack Screws to pull AV-Link into the AV-30
connector. AV-Link should seat firmly into the AV-30 as shown in Figure
19.
Figure 19- AV-Link installed
in-lbs.
maximum. Do Not Overtighten!
Reattach the original AV-30 Backshell Connector. Using a flat
screwdriver, tighten the two [2] screws to 5 in-lbs. maximum.
