31. Connect red, white and black wires (1,2 & 3 in Fig. 16) from cable (P/N 126-
0208G1) to Tap wire #6 on all three coils of transformer with Burndy
connectors as shown below. It does not matter which color wire goes in which
position. Securely wrap each Burndy connector with electrical tape.

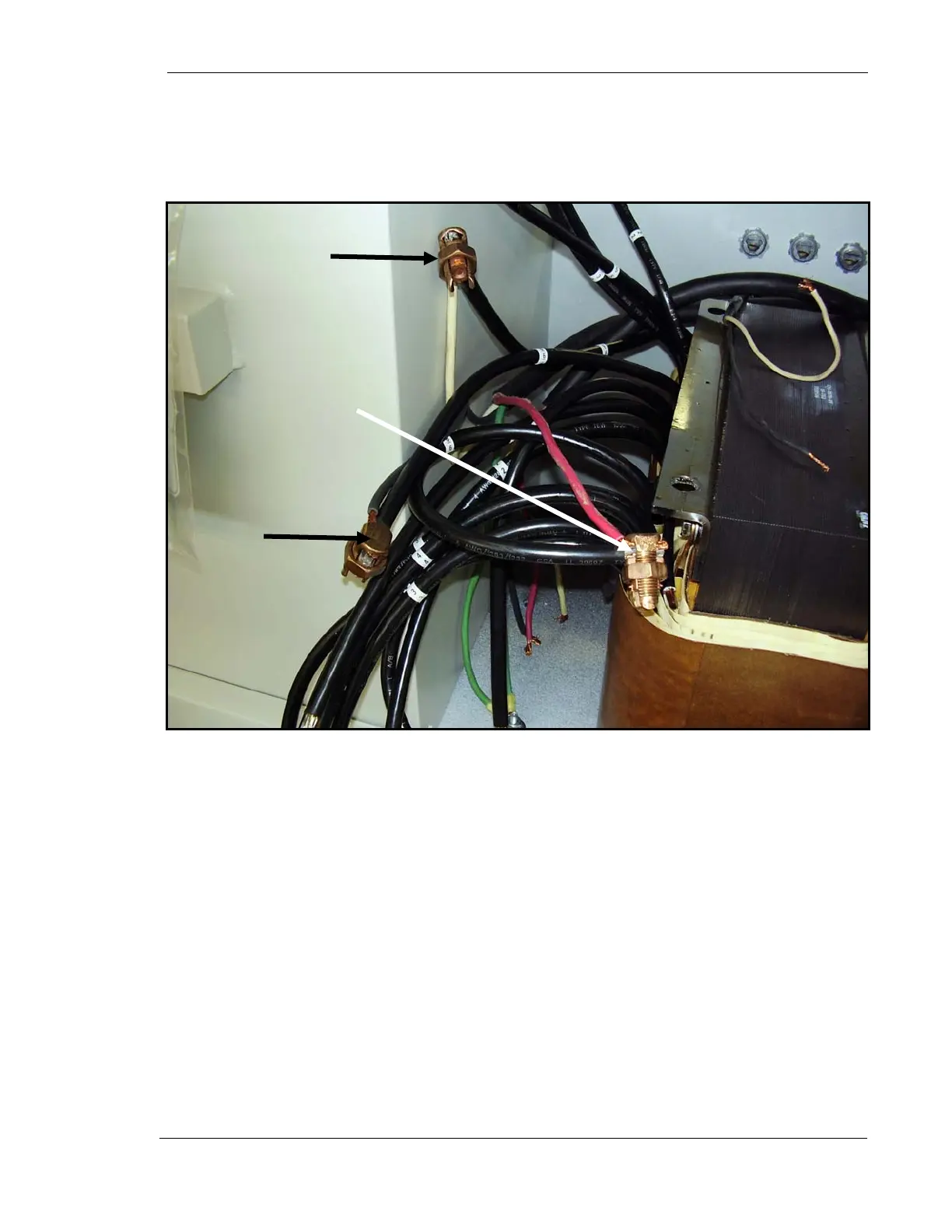

Figure 16. Main Cable Connections
1
3
2
