APX 525/625 Generator Revision C Pre-Installation
©
2005 Del Medical Imaging Corporation
7/5/2005 Page 93
32. Connect black and white wires (1 & 2 in Fig. 17) from cable (P/N 126-
0211G1) to Tap wire #4 on any two coils of transformer with Burndy
connectors as shown below. It does not matter which color wire goes in which
position. Securely wrap each Burndy connector with electrical tape.

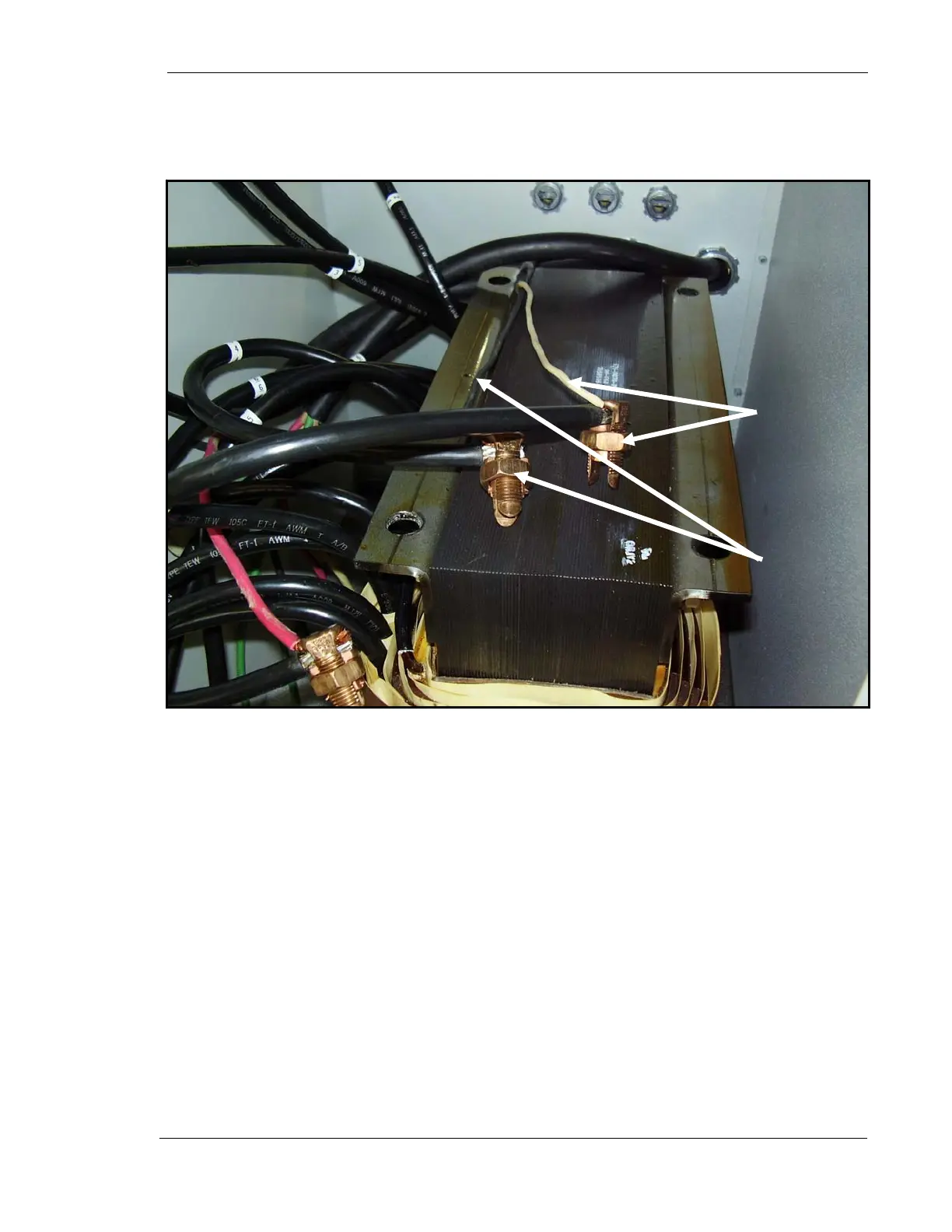

Figure 17. Secondary Cable Connection
1
2
