Universal APX 525

To Next Page

To Previous Page

APX 525/625 Generator Revision C Service Adjustments

2005 Del Medical Imaging Corporation

7/5/2005 Page 109

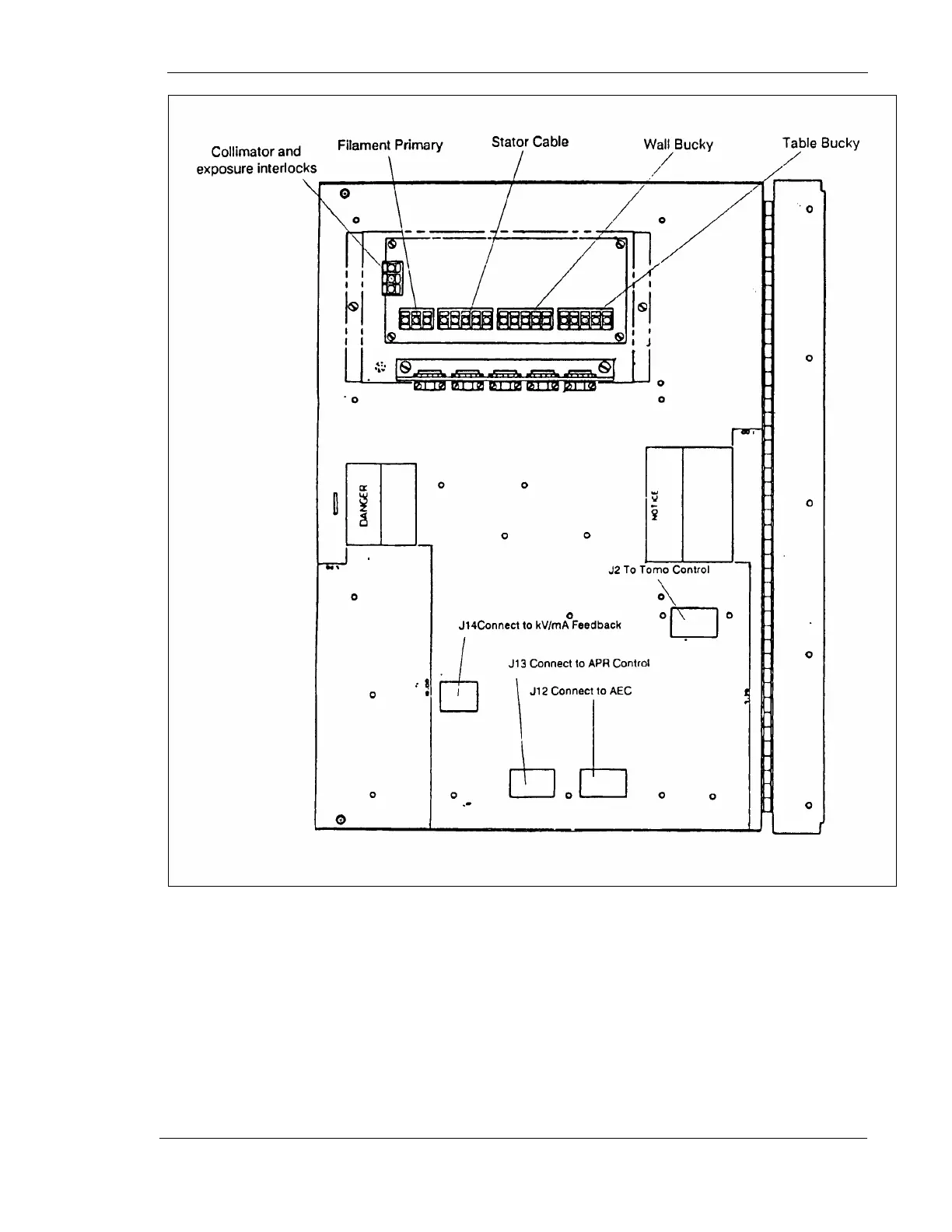

Figure 51 - Power Module Front Panel
