APX 525/625 Generator Revision C Service Adjustments
© 2005 Del Medical Imaging Corporation
7/5/2005 Page 110
1. – Auxilliary
2. – mA/Rotor
3. – mAs Regulator
4. – Data
5. – kV Regulator
6. – Logic

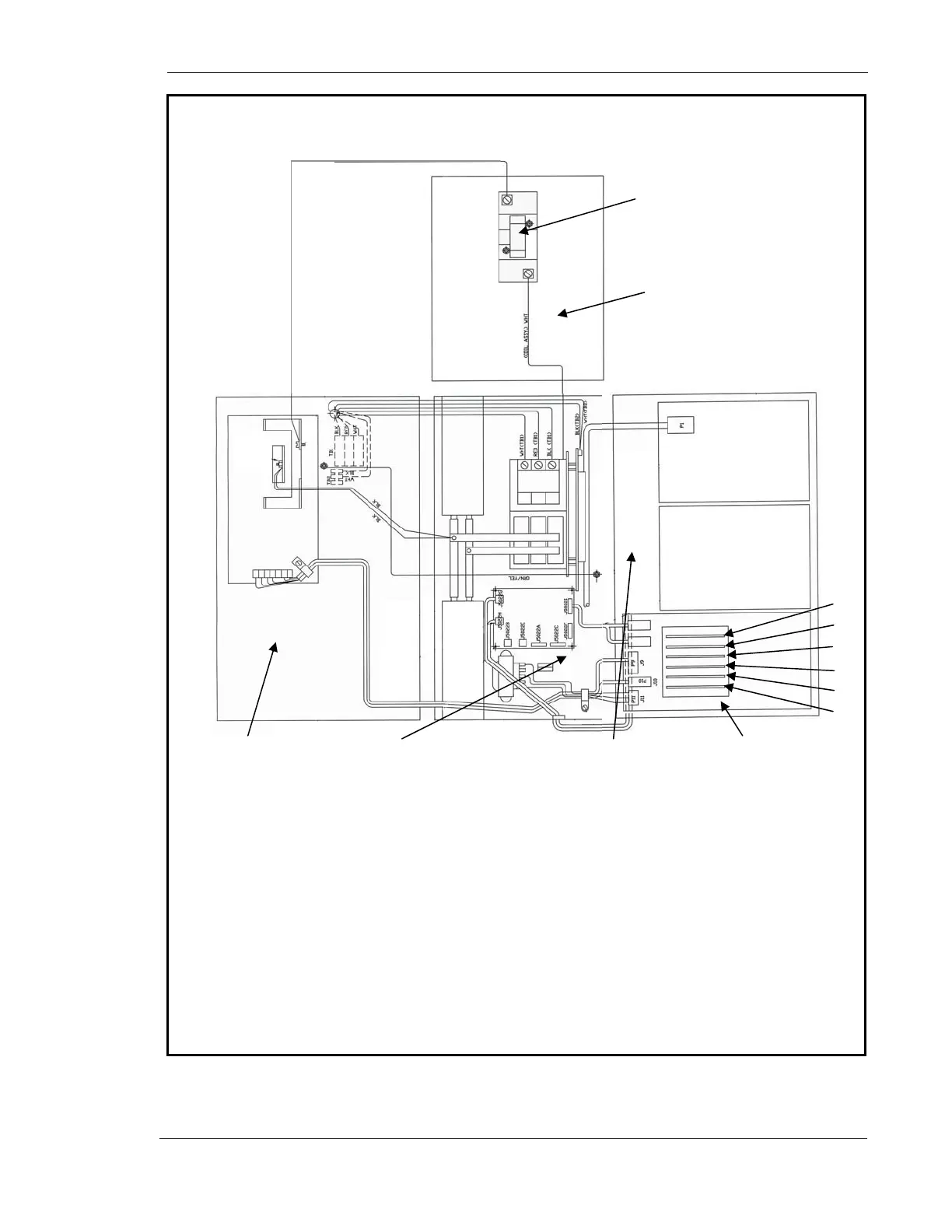

Figure 52 - Power Module Top View (open)
Inverter Fuse (F1)
Right Side
I/O Board
Power
Supply
Rear
Panel
Bottom
Panel
Front
Panel
Mother
Board
1.
2.
3.
4.
5.
6.
