APX 525/625 Generator Revision C Service Adjustments
© 2005 Del Medical Imaging Corporation
7/5/2005 Page 118

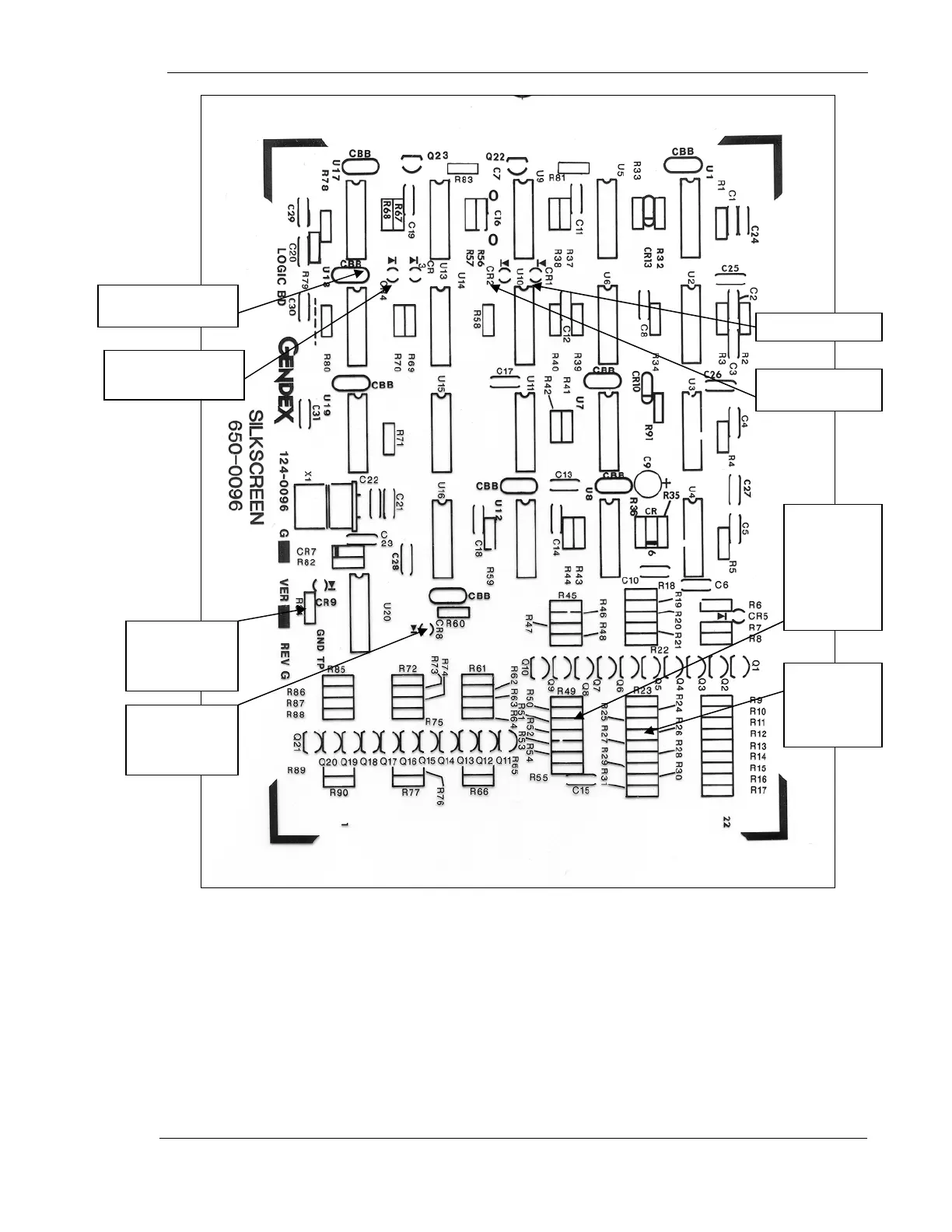

Figure 60 - Logic Board
CR8 – X-Ray
Signal in from
Memory Bd.
CR9 – Ready
Output to
Control
CR4 – Wall Bucky
Feedback
CR3 – Table
Bucky Feedback
CR1
–
kV Fault
CR2 – Filament
Fault
kV Above
75% (Low)
from kV
Board
(R50&R51
junction)
Rotor OK
(Low)
(R26&R27
junction)
