30. Connect one of incoming 208 VAC power lines to lead #1 on in-line
transformer with Burndy connector as shown in Figure 14 below. Do not
wrap connection with tape yet.
31. Connect other incoming 208 VAC power line to lead #2 on in-line
transformer with Burndy connector as shown in Figure 14 below. Securely
wrap connection with electrical tape.
32. Connect lead #1 on line matching transformer to white wires from cables
126-0214G2 and 126-0211G1 with Burndy connector as shown in Figure
14 below. Securely wrap connection with electrical tape.
33. Connect lead #3 on line matching transformer to black wire from cable
126-0211G1 with Burndy connector as shown in Figure 14 below.
Securely wrap connection with electrical tape.
34. Connect lead #4 on line matching transformer to black wire from cable
126-0214G2 with Burndy connector as shown in Figure 14 below.
Securely wrap connection with electrical tape.
35. Connect green ground eyelet from cable 126-0214G2 and green ground
eyelet from incoming power line to ground lug as shown in Figure 14
below.
Procedure is Complete.

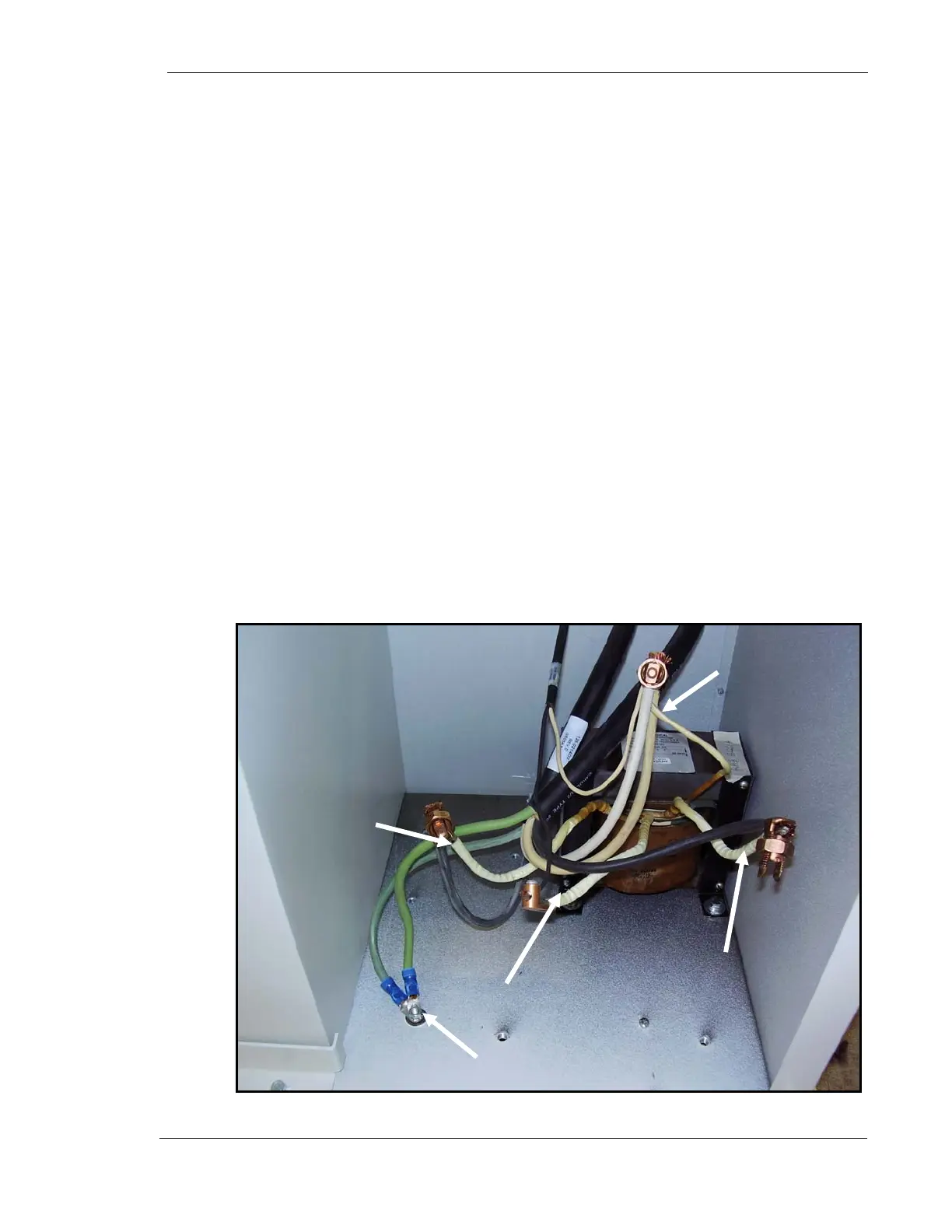

Figure 14. Transformer Connections
Lead #4
Lead #3
Lead #2
Lead #1
Ground E
elets
