APX 525/625 Generator Revision C Pre-Installation
©
2005 Del Medical Imaging Corporation
7/5/2005 Page 81
39. Connect red, white and black wires (1,2 & 3 in Fig. 15) from main cable to 480
VAC Burndies on in-line transformer as shown below. It does not matter
which color wire goes in which position. Securely wrap each Burndy
connection with electrical tape.
40. Connect ground wire to lug (4 in Fig. 15) on bottom of cabinet.

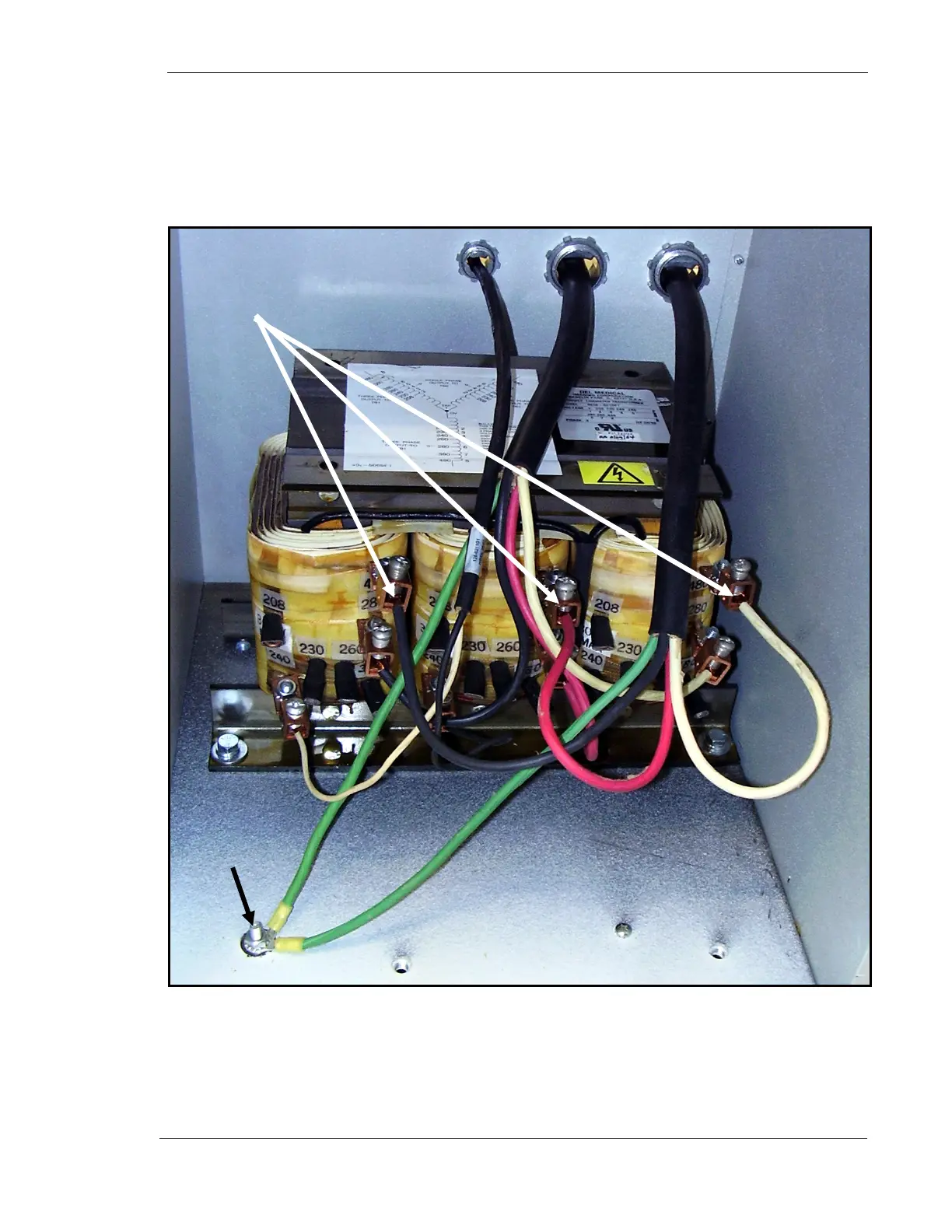

Figure 15. 480 VAC Power Hookup
1, 2 & 3
4
