3. Unscrew four inline-transformer mounting bolts and washers (1) and save for
later use.

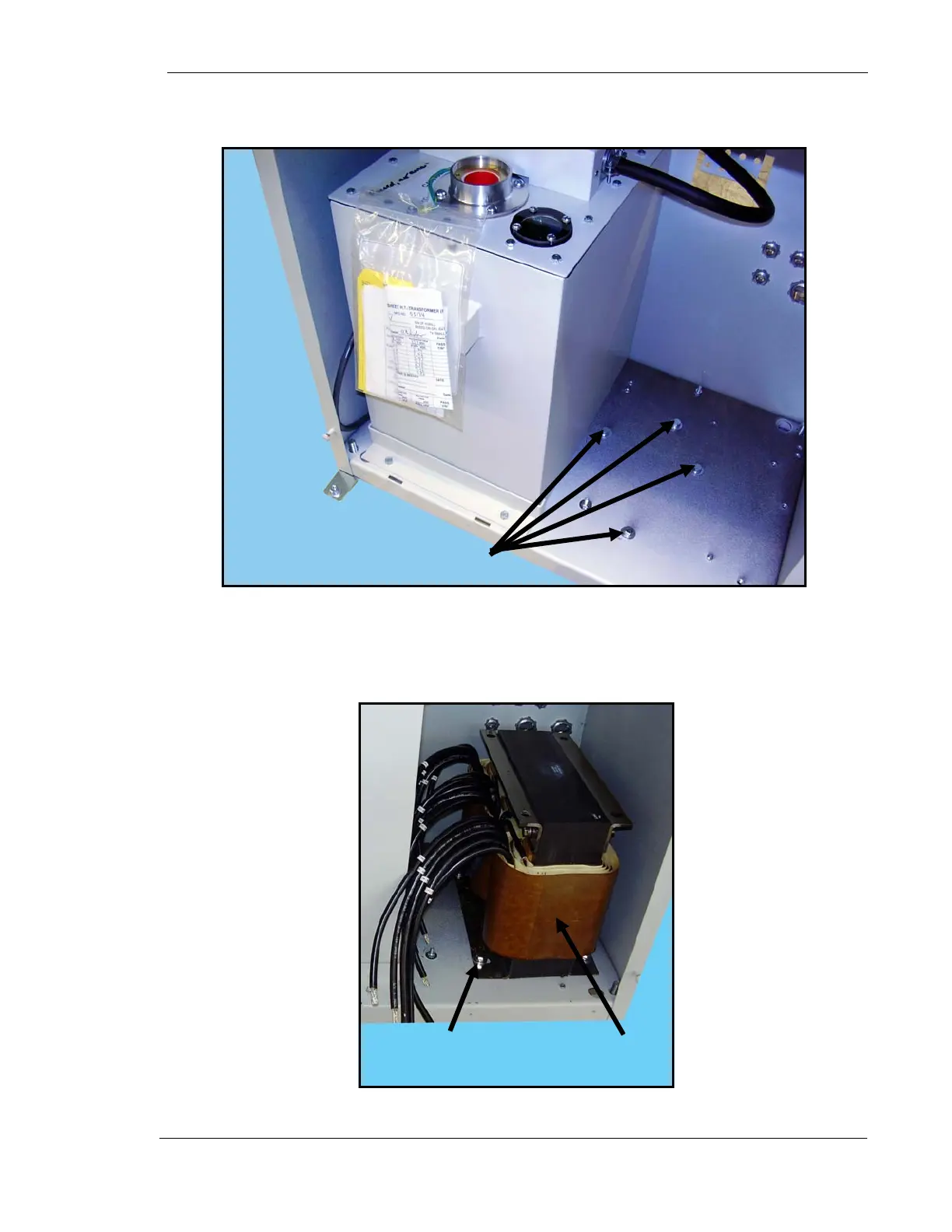

Figure 2. Transformer Mounting Screws
4. Place in-line transformer (1 in Fig. 3) in position shown and secure in place
with four bolts and washers (2) removed in step 3.
Figure 3. In-Line Transformer Mounting
1
1
2 (x4)
