Vaisala AWS310-SITE - Mounting HMP155 inside Radiation Shield DTR13

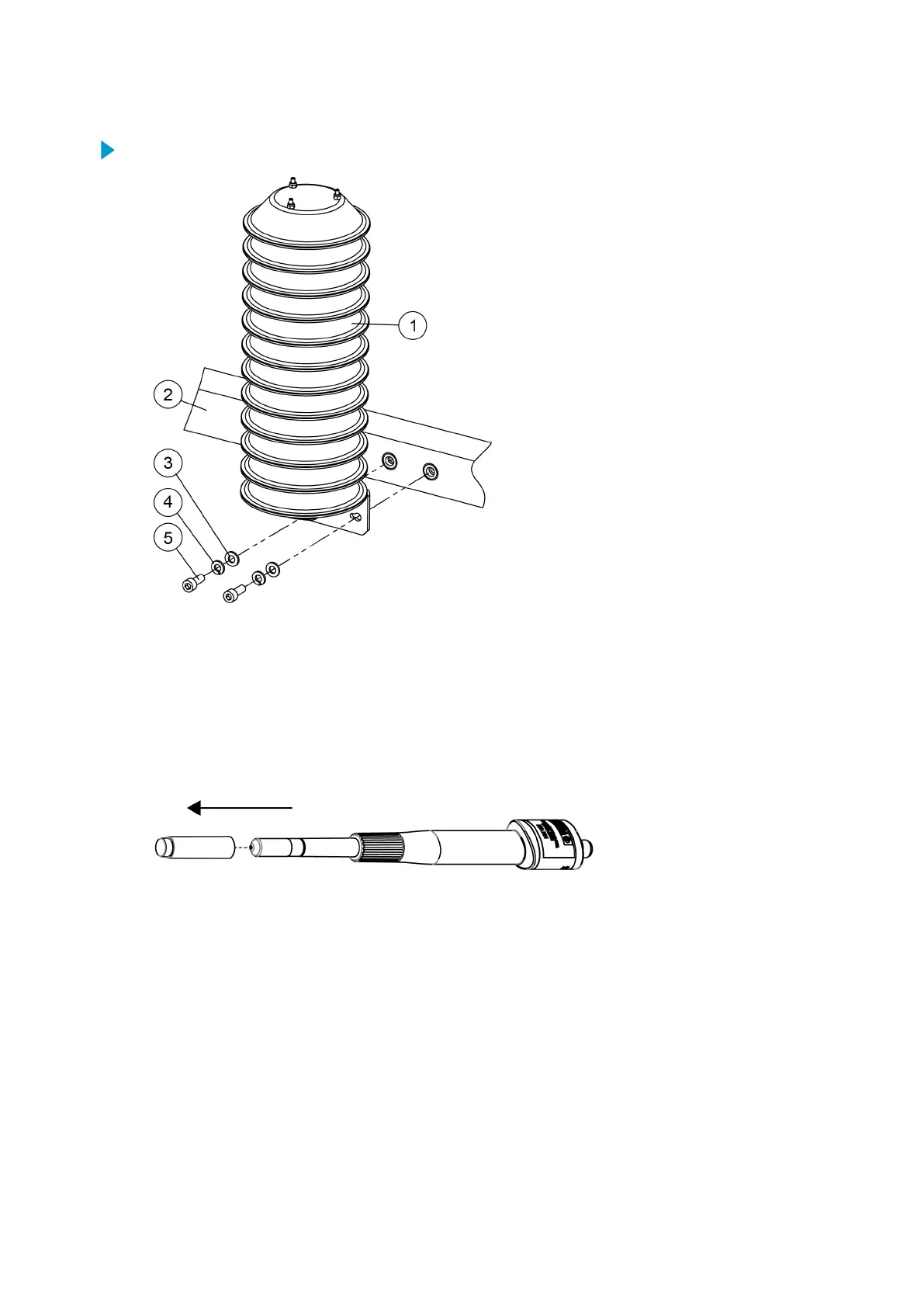

1. Install the radiation shield on the sensor support arm.
1 Radiation shield
2 Sensor support arm
3 Flat washer A6.4 DIN125 A4 (2 pcs)
4 Spring lock washer B6 DIN127 A4 (2 pcs)
5 Hex screw M6×16 DIN912 A4 (2 pcs). Tightening torque 5 Nm.
2. Remove the protective cover from the probe.
