Vaisala AWS310-SITE - Aligning WMT700

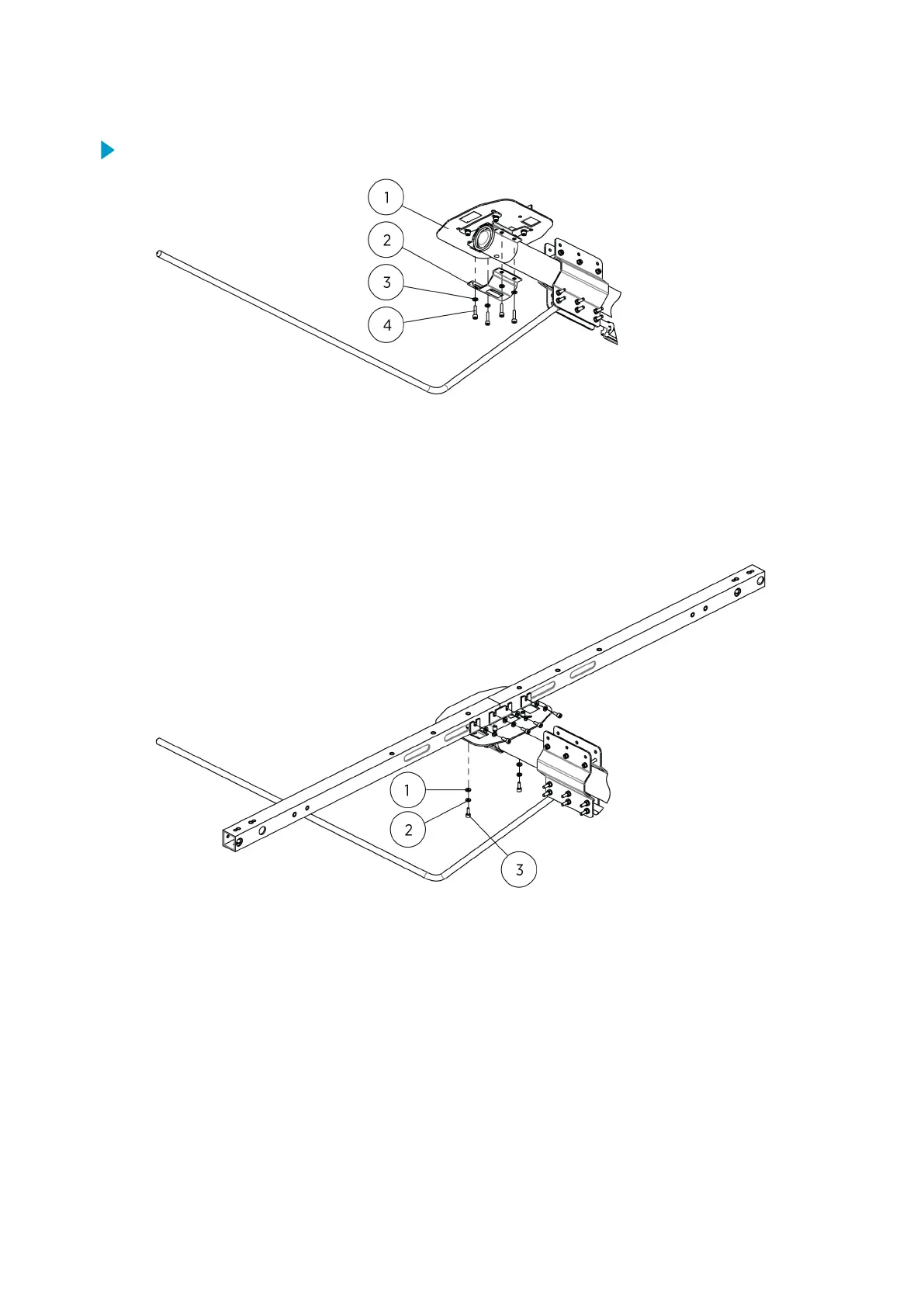

1. Attach the sensor support arm mounting plate to the mast.
1 Mounting plate
2 Clamp
3 Spring lock washer M6 DIN127 A4 (4 pcs)
4 Hex screw M6×25 DIN912 A4 (4 pcs). Tightening torque 5 Nm.
2. Attach the sensor support arms to the mounting plate.
1 Flat washer A6.4 DIN125 A4 (6 pcs)
2 Spring lock washer A6.4 DIN127 A4 (6 pcs)
3 Hex screw M6×16 DIN912 A4 (6 pcs). Tightening torque 5 Nm.
