MM101 – D-4E HOT MELT UNIT 20
VALCO MELTON S.L.U. Pol. Ind. Agustinos C/G 34 3116 0 ORCOYEN, NAVARRA
TEL: +34 948 321580 Fax: +34 948 326584 melton@melton.es www.valcomelton.com
To connect the hot melt hoses to the unit, follow these steps:
1. Using a pair of wrenches, one on the fluid outlet fitting and
the other on the fluid cap, remove the protective caps from
the fluid outlet fittings.
2. Ensure that the fluid outlet fitting is tight into the machine.
3. Ensure that the fluid outlet ports are clean.

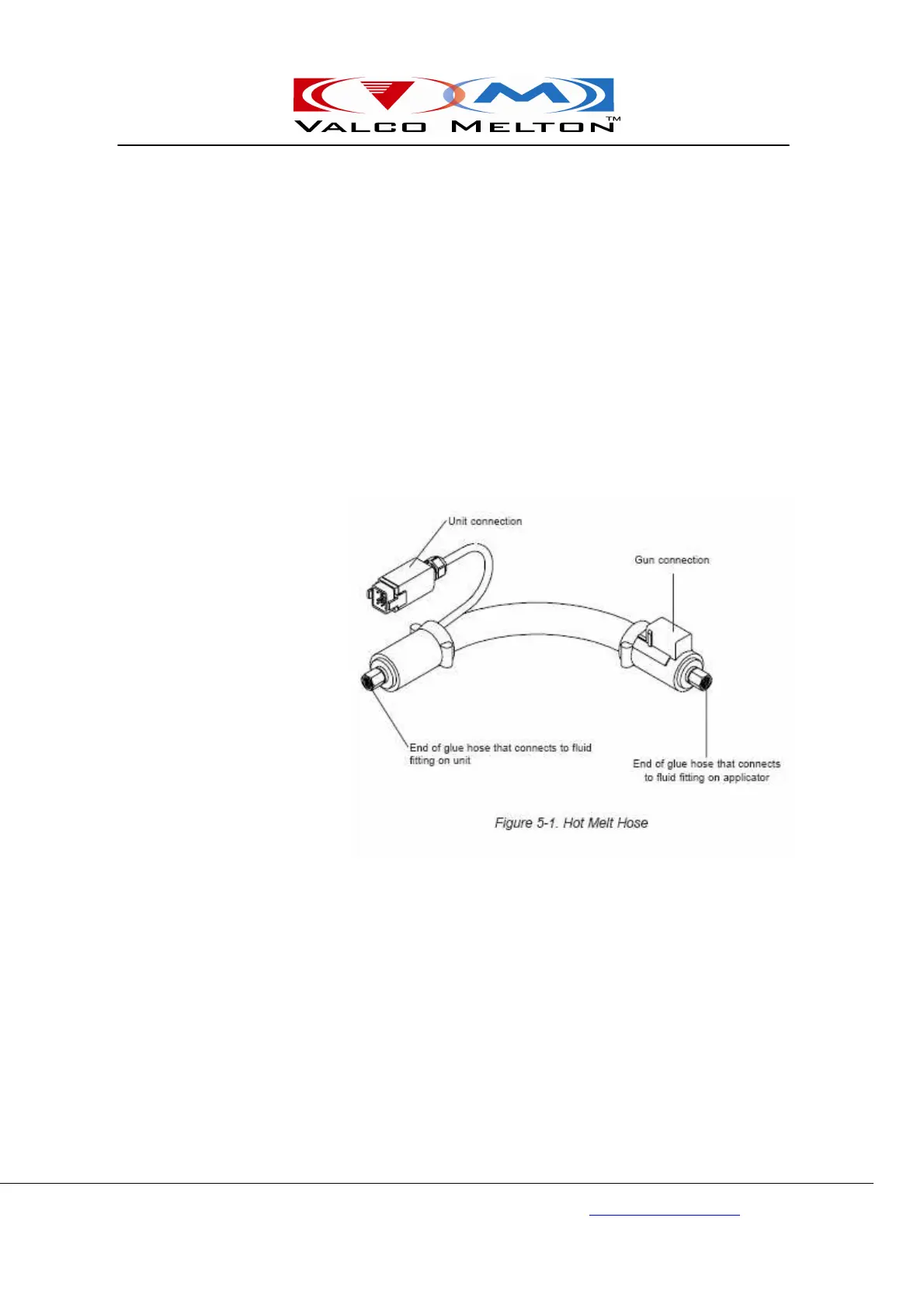

4. Select the end of the glue hose that has the lead assembly
with the male electrical connector (Figure 5-1).
