2500 Automatic Tank Gauge
94 Installation and Operations Manual
Table 9: Negator Cassette Kit and Individual Parts List

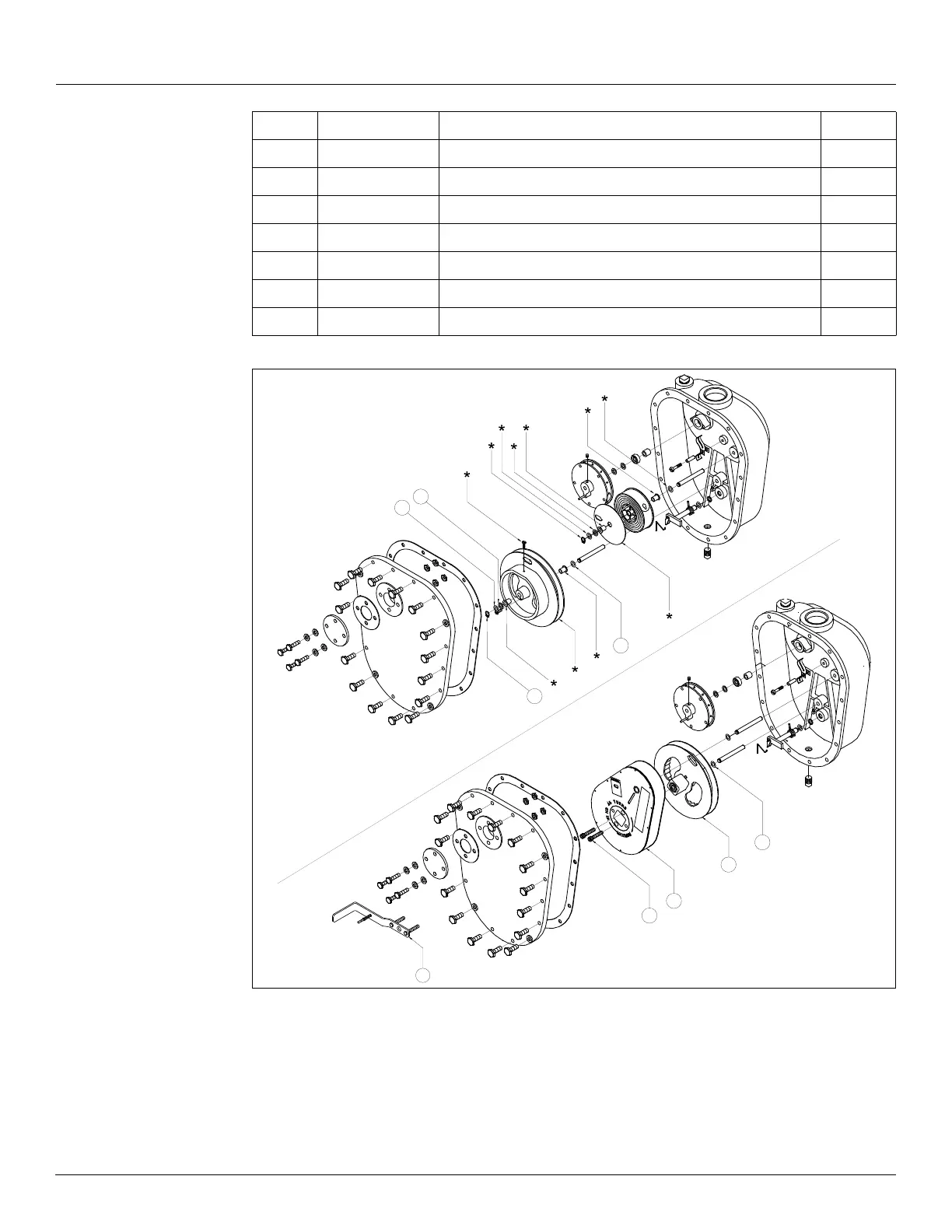

Figure 21: 2500 ATG (Type B Gauge Head Shown) Negator Cassette Conversion Kit Parts Diagram
(Item 68)
4 B7415-093 Teflon Washer (Not shown - as used on older models) 2
23 P10-2 Retaining Ring, 5/16 SS 1
44 P31-1 Washer 9/16X21/64X1/16 SS. 1
45 P31-13 Shim washer 562X.316/.313X.005SS 6
49 P031-11-1807 HSCS 1/4-20X1-1/4 2
50 06-10368 Negator Cassette 1
51 06-10364 Tape Storage Sheave Assembly - Cassette 1
52 06-10490 Handle (Crank) 1
52
23
44
45
45
Standard Gaugehead
The Negator Cassette Conversion Kit
replaces all the parts highlighted *
from a standard gaugehead
Note Use items 44 and 45 as required
49
45
51
50
Negator Cassette
Gaugehead
