Varec, Inc. 105

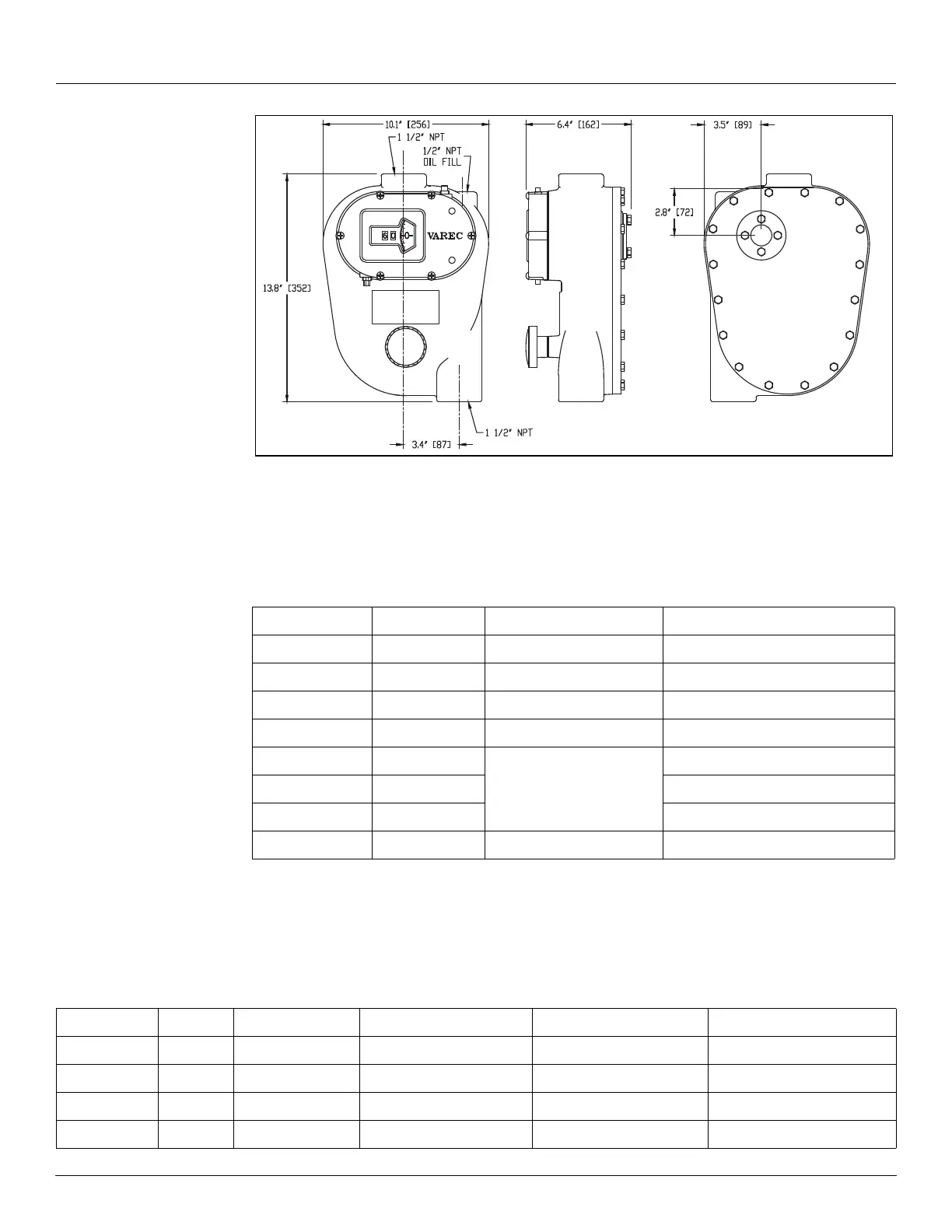

Figure 29: 2500 Cast Iron Gauge Head Product Dimensions
Floats
Table 15: Floats
Conduit Elbows
Part # Material Net Weight Size
BM9074-000 316 S.S. 8.8 lb (4 kg) 17” (432 mm) Flat
BM12339-000 Alloy 20 10.7 lb (4.9 kg) 17” (432 mm) Flat
BM12338-000 Monel 10.5 lb (4.8 kg) 17” (432 mm) Flat
BM12411 316 SS 11 lb 8" (203 mm) Multi-sphere
BM17777-006 316 SS Depends on specific
gravity of product -
contact factory
8" (203 mm) Sphere (interface)
BM17782-006 316 SS 6" (152 mm) Sphere (interface)
BM17783-006 316 SS 10" (254 mm) Sphere (interface)
P29-43 Fiber glass 9 lb 17" (432 mm) Flat
Part # Angle Description Pressure Rating Conduit Material Wheel Material
BM3661 90° Elbow 150 PSIG (1.1 MPa) Cast iron 316 SS
BM3491 90° Elbow 300 PSIG (2.2 MPa) Cast iron 316 SS
BM3490 45° Elbow 300 PSIG (2.2 MPa) Cast iron 316 SS
BM3489 30° Elbow 300 PSIG (2.2 MPa) Cast iron 316 SS
