2500 Automatic Tank Gauge
2 Installation and Operations Manual
Getting Acquainted with the 2500 Automatic Tank
Gauge Systems
The 2500 series of Automatic Tank Gauges (ATG)
are float and tape operated instruments designed
to provide continuous liquid-level measurement
in bulk storage applications.
The gauge can be installed on the tank roof or at
the tank side (at grade), which would facilitate
ground level reading by the operator and is
available with a wide variety of accessories for
virtually every tank gauging application.
The level measurement is displayed using a dial
and counter built into the gauge head. If
electronic transmission of level data or
temperature measurement integration is
required in the control room, the gauge can be
fitted with an optional tank gauging transmitter.

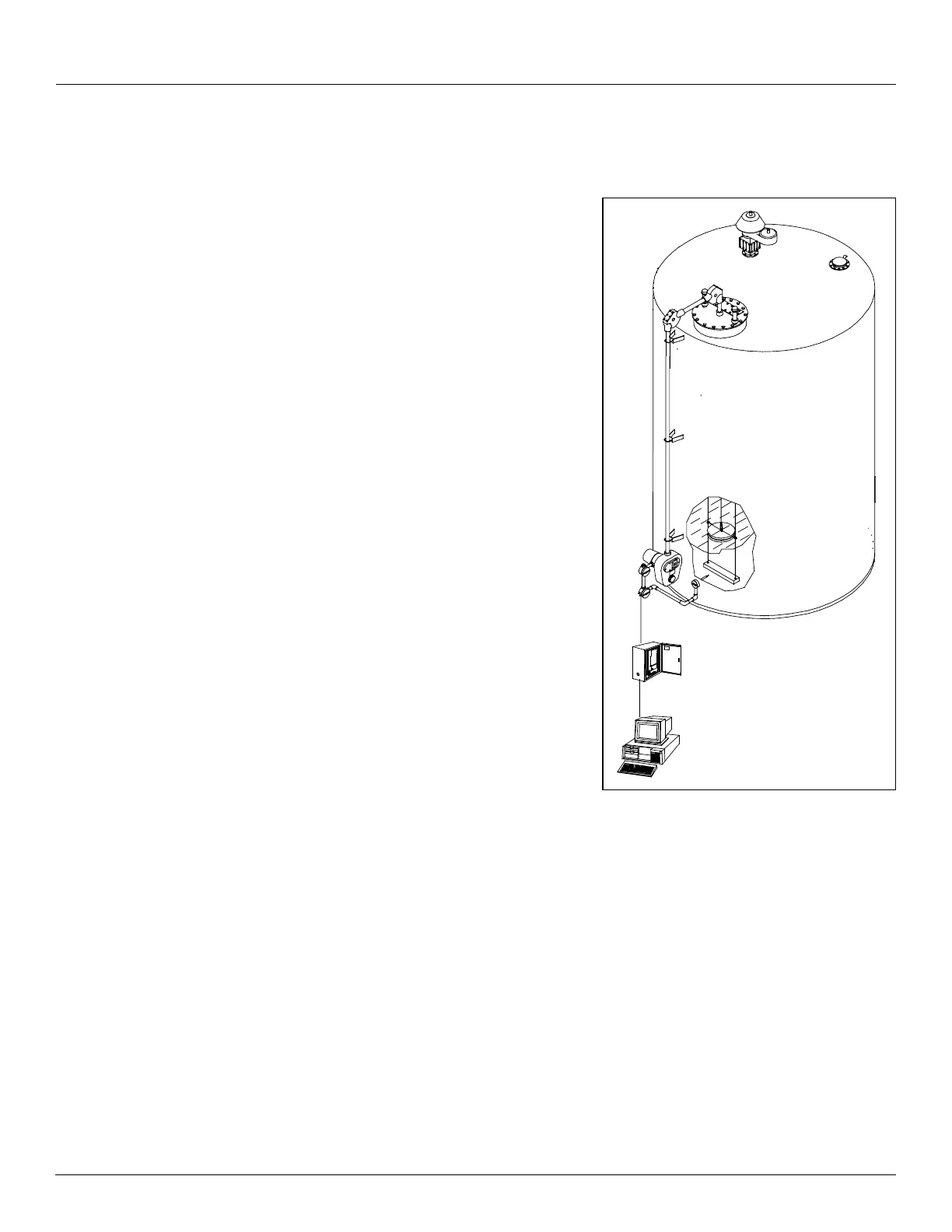

Figure 1: Typical 2500 ATG Installation
Inventory Management System
e.g. FuelsManager
Tank Gauge Interface
e.g. 8130RTU
2500 Automatic Tank Gauge
and Transmitter
