Floats
For new installations, locate the float in the tank where it will be
exposed to a minimum of agitation. If the product stream is close to
the float, install a deflector. If agitators will cause excess float
disturbances, contact Varec before proceeding with installation.
The 2500 ATG is provided with a standard 14.5” (368 mm) float
diameter (with 17” (432 mm) guides) Type 316 stainless steel
hollow shell float. Depending on the type of service kit selected —
moderate, severe, or extreme — an alternative float may be
supplied.

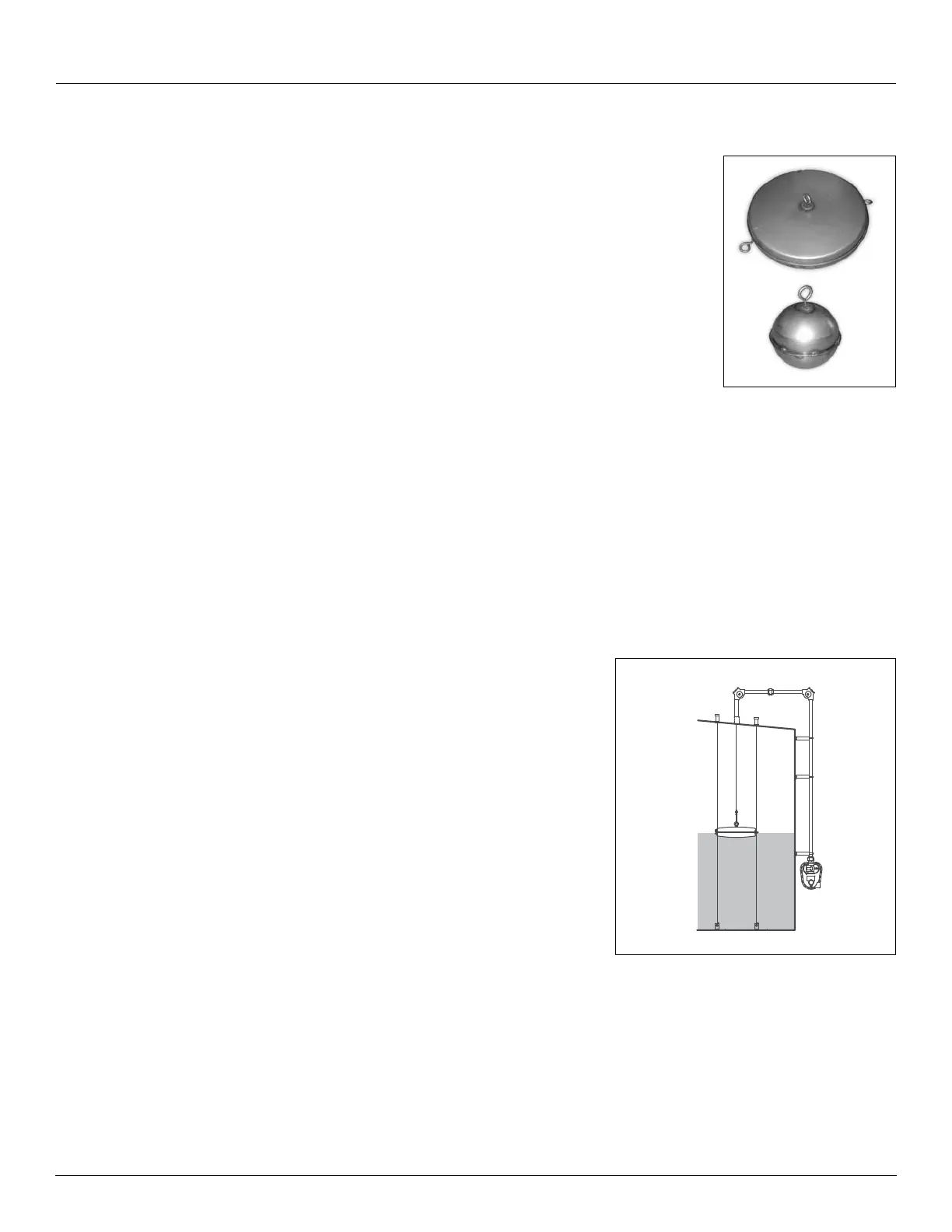

Figure 4: Standard 2500 ATG Flat Hollow Shell Float and 6" Interface
Float
Identifying Your Installation Type
Various accessories are provided, depending on the installation type selected, in the product
order codes.
Cone Roof Tank
Order Code T01, T11, T21, T22, T23, T24, T31, T33,
T34 T41, T42
Installation parts supplied include:
• 90° Elbow assembly (x2)
• Gauge 'U' bolt kit
• Guide Wire bottom anchor
• Guide Wires
• Support bracket (x6)
• gauge head and tape
• Float
• Guide Wire top anchors (x2)
• Tape connectors
Figure 5: Cone Roof Tank
