Specifications and Reference Data
Device Designation/Nameplate

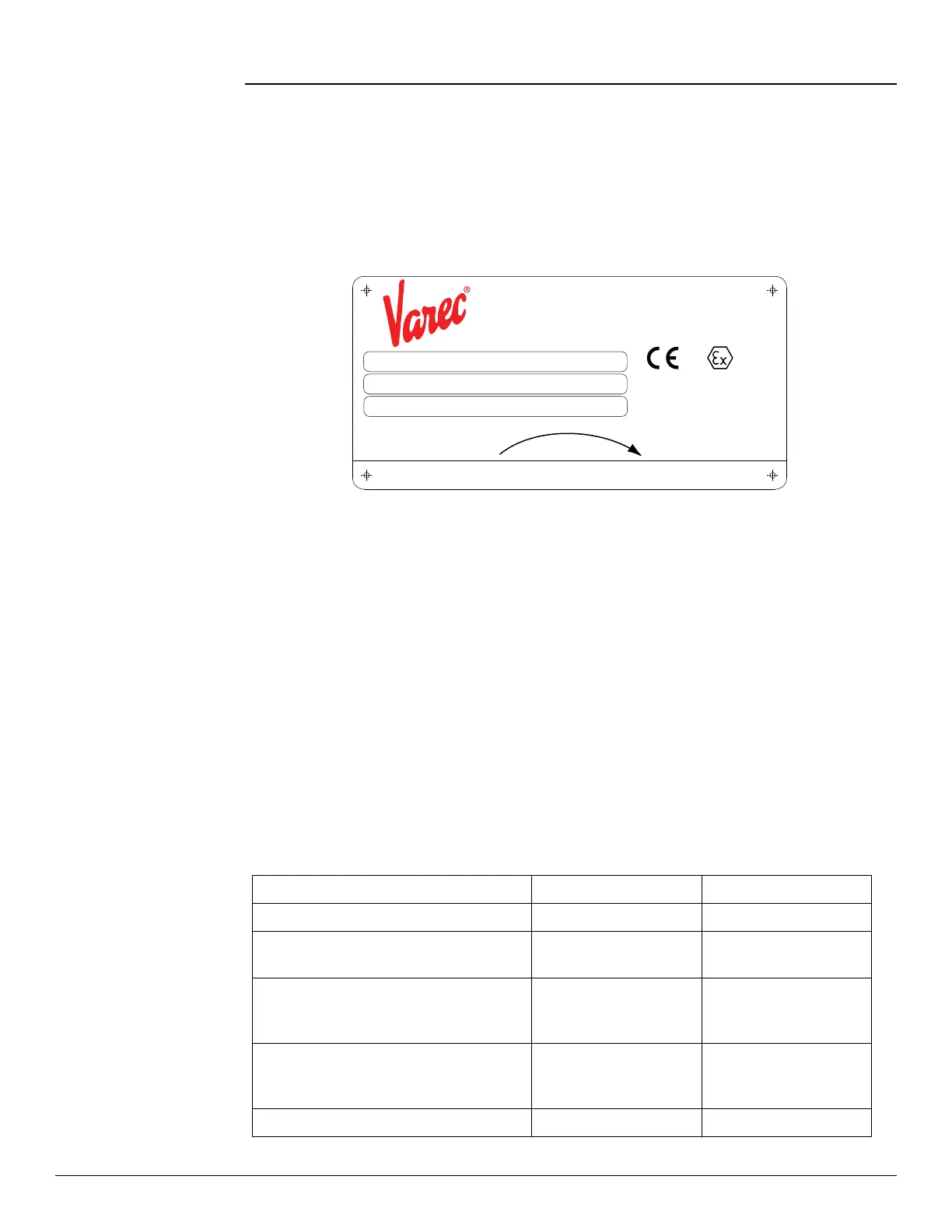

Figure 27: Nameplate for the 2500 ATG
CE Marks, Declaration of Conformity
The instrument is designed to meet state-of-the-art safety requirements, has been tested, and
left the factory in a condition in which it is safe to operate. The instrument complies with the
applicable standards and regulations in accordance with EN 13463-1 “Non-electrical
equipment for use in potentially explosive atmospheres - Basic method and requirements”.
The instrument described in this manual thus complies with the statutory requirements of the
EC directives. Varec confirms the successful testing of the instrument by affixing to it the CE
mark.
2500 ATG Gauge Head
Table 14: 2500 ATG Gauge Head Materials
Varec, Inc.
5834 Peachtree Corners East, Norcross (Atlanta) Georgia 30092 USA
2500
Automatic Tank Gauge
EX16-013188 REV. B
Gaugehead Type C
G
A
U
G
E
C
H
E
C
K
Serial No.
Model No.
Date Of Mfr.
1725 II 1 G
FM 06 ATEX 0009
Ambient Temperature Limits:
-40 °C TO +85 °C.
Reference the Installation and
Operations Manual for Details
Description Aluminium Gauge Head Cast Iron Gauge Head
Gauge Head Aluminium Cast Iron
Counter housing & cover Aluminium Cast Iron housing
Aluminium cover
Sprocket, Motor Storage and Tape storage
sheaves
Cast aluminum Cast Iron sprocket
Mild steel motor storage
hub with 304SS flange
Negator spring, Perforated tape and
Sprocket Pins
Type 301 stainless steel
Type 316 stainless steel
Type 303 stainless steel
Type 301 stainless steel
Type 316 stainless steel
Type 303 stainless steel
Bearings Stainless steel Teflon
