Varec 2500 - Overhaul;Refurbishing Kit

2500 Automatic Tank Gauge
88 Installation and Operations Manual

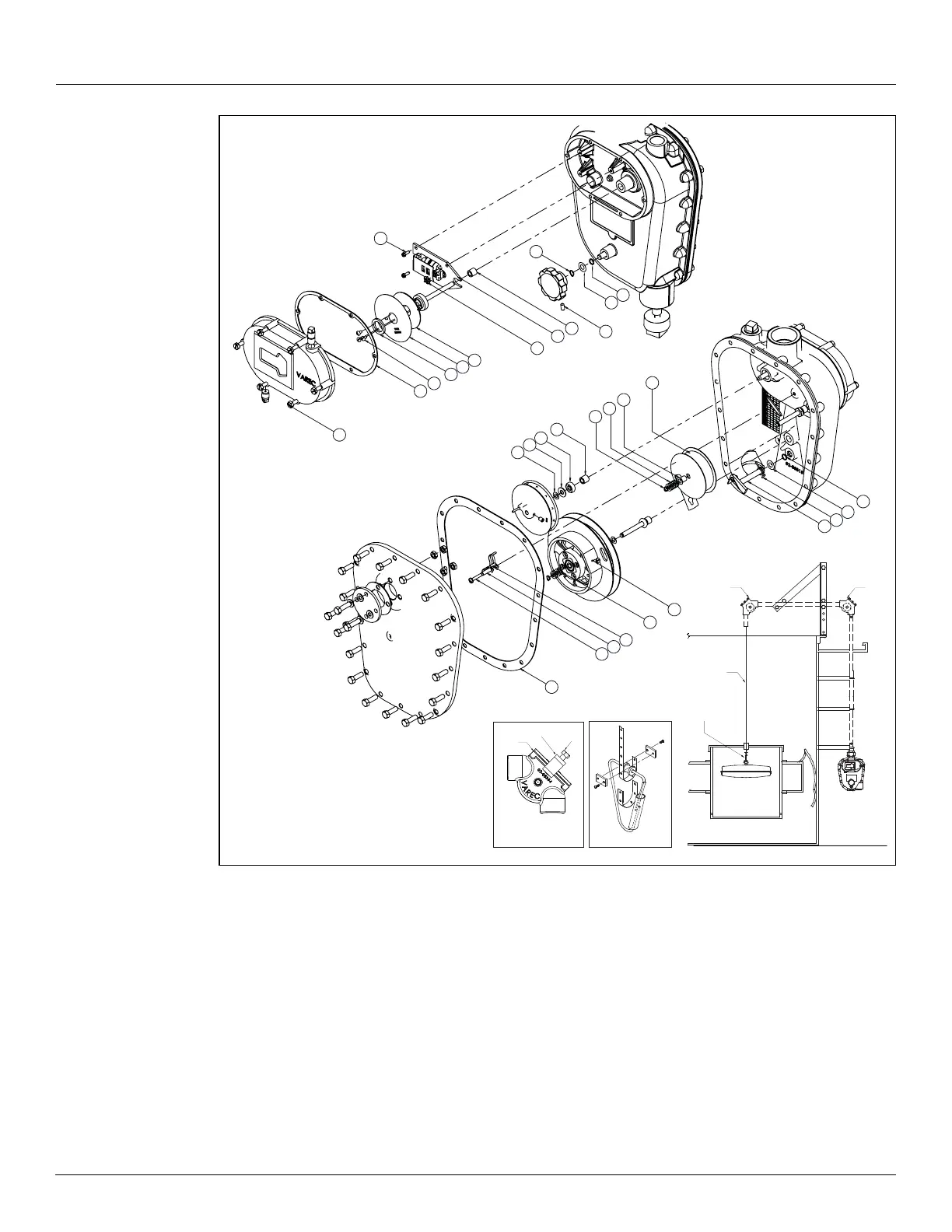

Figure 17: 2500 ATG (Type C Gauge Head Shown) Extended Maintenance Kit Parts Diagram
Overhaul/Refurbishing Kit
The Refurbish/Overhaul Kit provides all the parts required for overhaul maintenance on the
2500 ATG. Depending on your selection, you will receive the metric or imperial parts required,
listed in Table 18
