1. System
1.1 Main Features
• Master-Slave relationship between Master gauge and other instruments
• Up to 16 Slave functions on one Master instrument or 32 with the use of two Master instruments
• CAN protocol flexibility ( processing two protocols simultaneously)
• Modular "plug & play" as needed
• Analogue sensor compatible
• Frequency inputs
• Dot-matrix information display
• Switch outputs available
• Flexible to customer needs

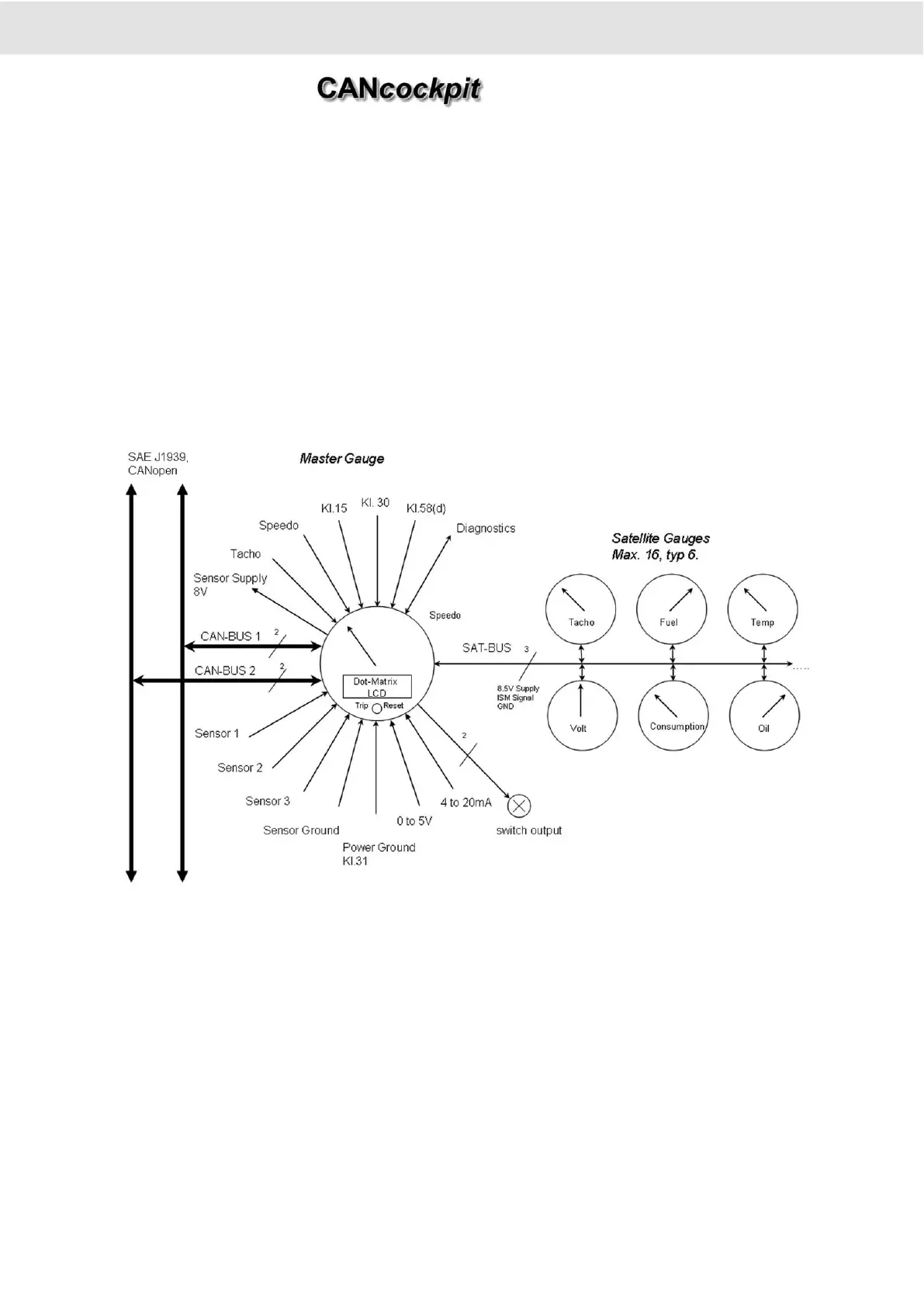

1.1.1 Block Diagram CANcockpit
1.2 Mechanical Concept
The Masters are 80, 85 and 100 mm in diameter, the Satellite gauges dia. 52, 80 and 100 mm.
The dials are translucent backlighted. The illumination of the gauges is realised with white LED's.
The backlighting of the LCD has a yellow LED. The warning lamp in the slave can have a red or yellow LED.
The housing and bezel are made of non-flammable plastic, the design is like a triangle with the black color RAL 9005. The be-
zel is clipable. The lens is flat and frosted. The pointer has a PC hub in black and the pointer arm is OL 5105 (white -coated on
the underside). The pointer type is translucent illuminated.
The housings have an indent in the thread at 6 o'clock position, so that an optional key can be
used according to SAE J1226 and SAE J 1399.
The movements are front-mounted stepper motors MW2000, only clockwise indication.
2. Functional Specification
Product Manual
Technische Änderungen vorbehalten Technical details subject to change
2 - 3
TU00-0736-0000002
0609
