Technische Änderungen vorbehalten Technical details subject to change
2 - 5
TU00-0726-0000002
0609
2. Master Gauges
2.1 General Features
The design concept for this design includes:
• 2x High-speed Full-CANbus interface V2.0B compatible.
• Half-duplex serial link to satellite gauges.
• VMC SCAL CDVV Microcontroller with identical firmware.
• Stepper motor MW2000 directly controlled by Microcontroller.
• Satellite gauges use SM2 stepper motor driven by ISM IC.
• LED illumination concept.
• 132 x 33 dots matrix LCD.
• Wide input voltage range switch mode power supply.
• Diagnostic Interface for configuration.

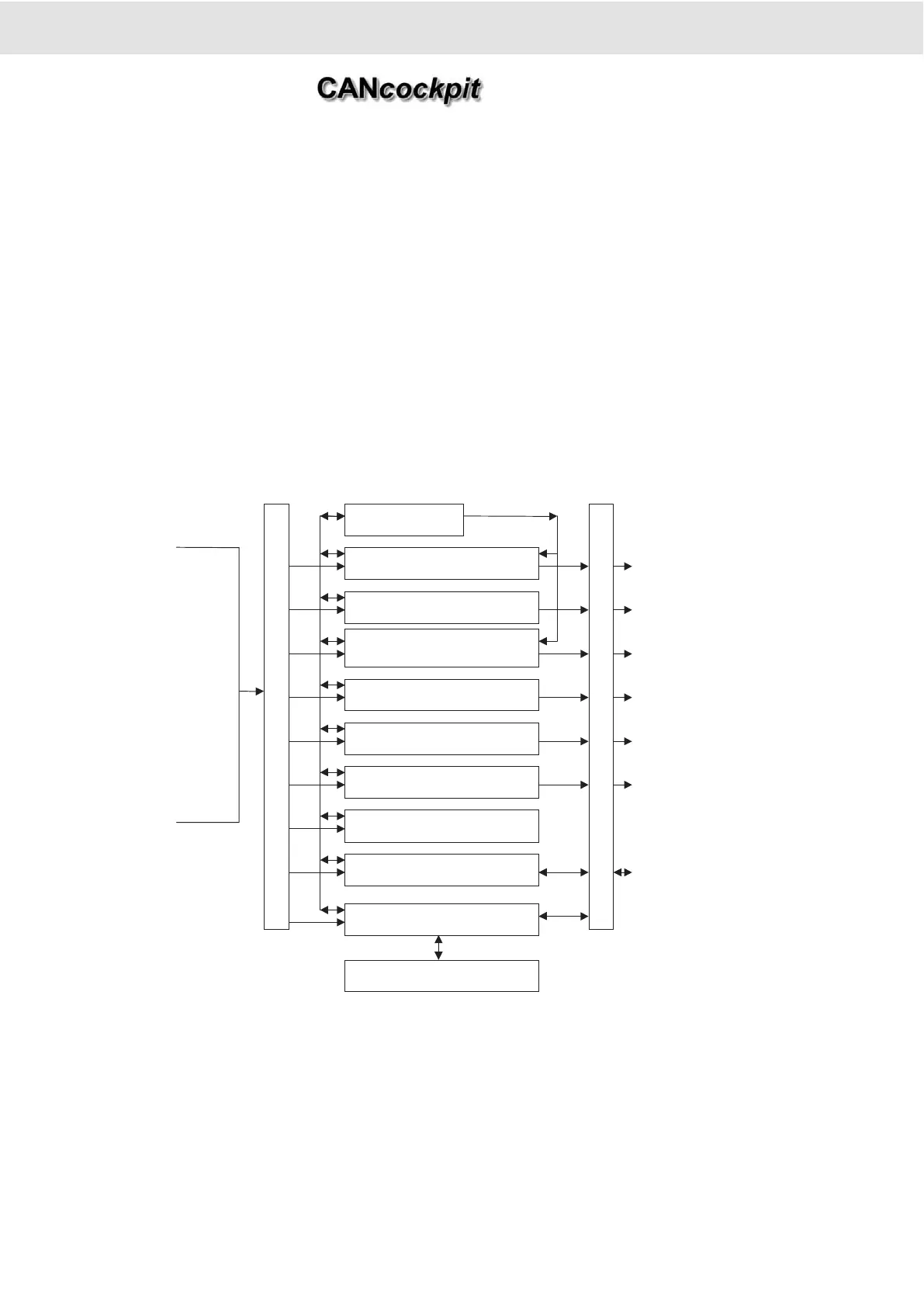

2.1.1 Main Functions
2. Functional Specification
Product Manual
