3. Satellite Gauges

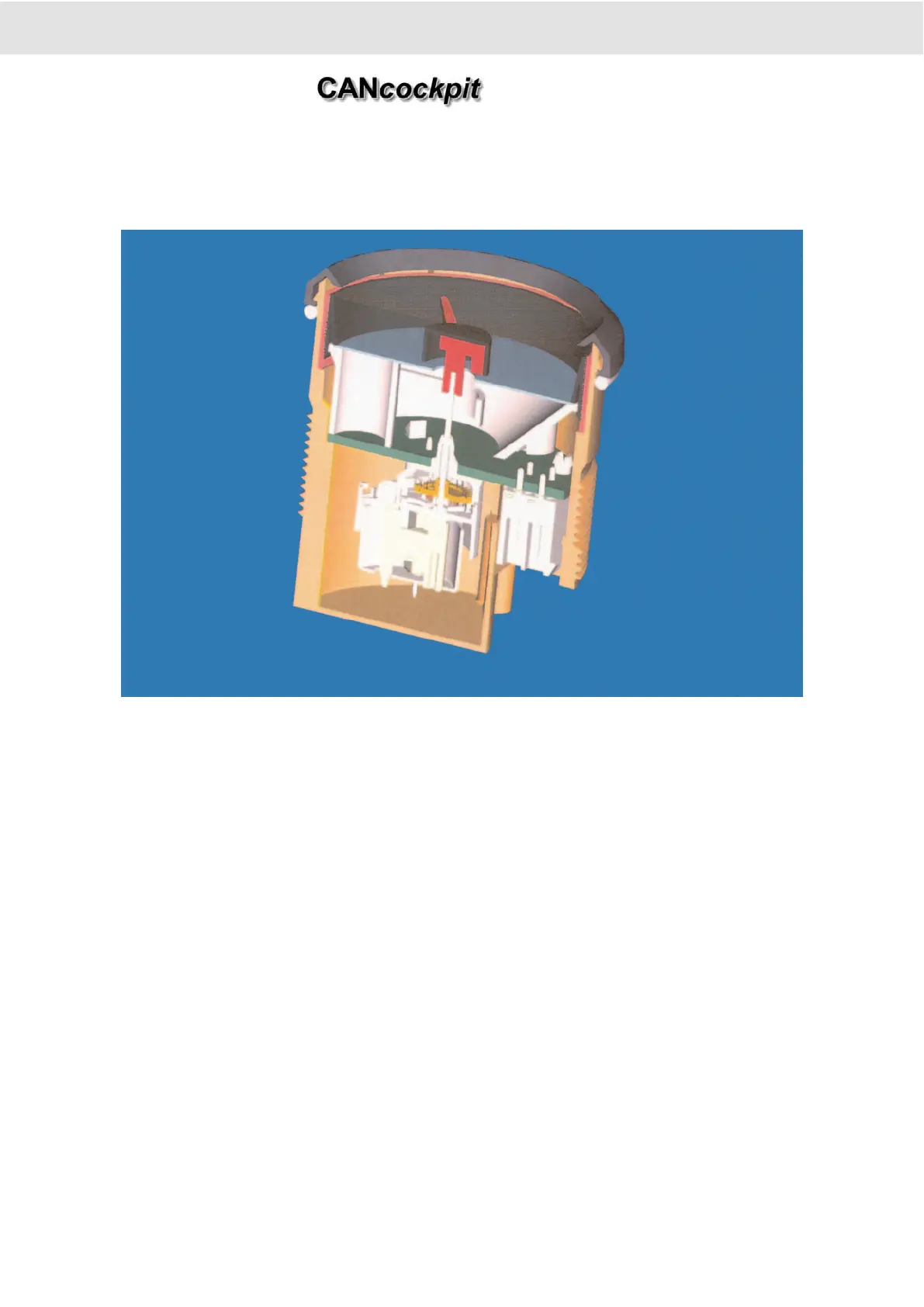

3.1 Mechanical concept
The movements are front mounted stepper motors SM2, only clockwise indication.
Connectors: AMP 6 Pin MATE-N-LOK
The dials have a 240° scale and a black panel effect for the warning lamps, so without activating of the warning lamp no sign
is visible.
3.2 Fault modes
When ignition is off, the pointers are positioned 6° below the left side of the scales. With ignition on the pointers are moving to
the scale start value. When the gauges receive wrong informations or the analog signals are out of range (configured by
WINgauge), the pointers are moving 6° below the scale start value
2. Functional Specification
Product Manual
Technische Änderungen vorbehalten Technical details subject to change
2 - 28
TU00-0726-0000002
0609
