2.3.3 Input Signal Processing for CANbus messages

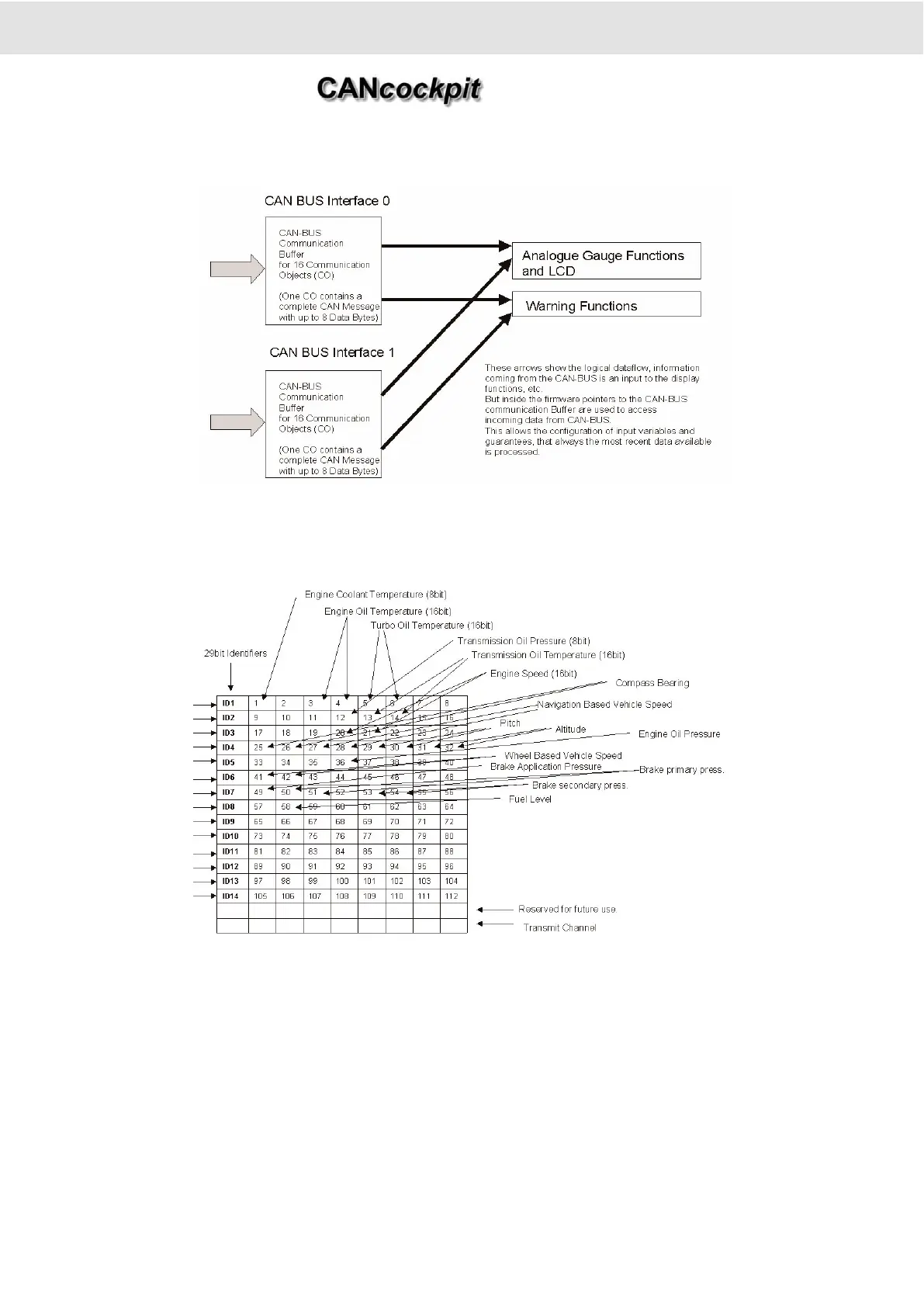

Example of SAE J1939 Messages received on one of the two CANbus Interfaces.
The Master Gauge CANbus interface conforms to CAN 2.0B specification and supports extended (29Bit) identifiers. The
Gauge acts as a "Standard ECU, which is non-configurable as defined in SAE J1939. The application layer is based on SAE
J1939/71 Rev 2008-01.
Additional communication protocol is CAN Open
For this the different CANbus data bases will be provided by the WINgauge configuration.
