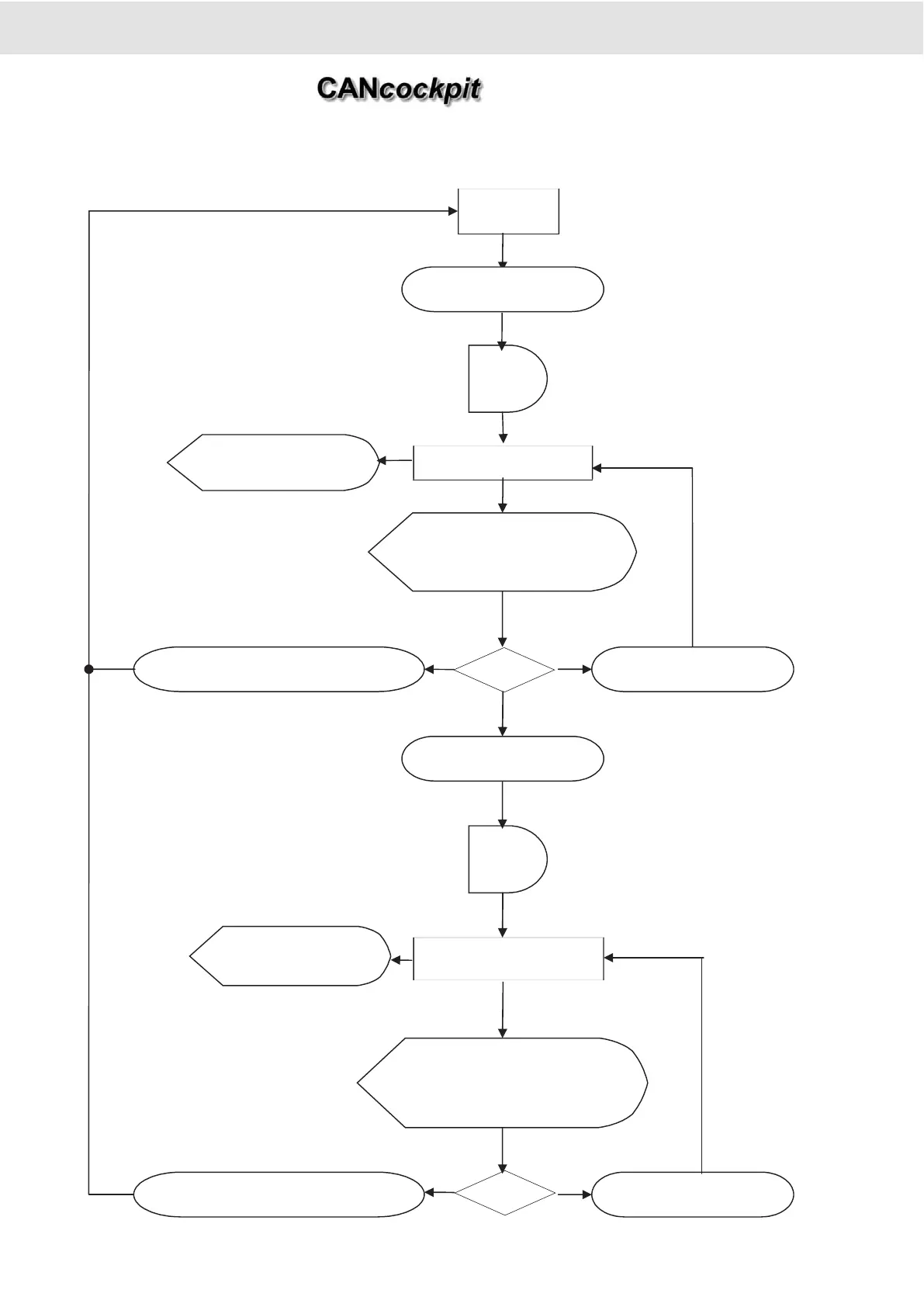

Alarm and Warning State Diagram (Minimum Value Algorithm)
2. Functional Specification
Product Manual
VALUE
Warning
Time
delay
Time
delay
Display Warning
Indication *
Alarm
Value <= WarnLevel
Value <= AlarmLevel
Display Alarm
Indication *
Reminder: Alarm list and
flashing Alarm symbol
and WINgauge "Alarm
Action"
Reminder: Warning list
and WINgauge "Alarm
Action"
?
Value <= WarnLevel
Value < WarnLevel - Hysteresis
Value <= AlarmLevel
?
Value > AlarmLevel + Hysteresis
Technische Änderungen vorbehalten Technical details subject to change
2 - 20
TU00-0726-0000002
0609
