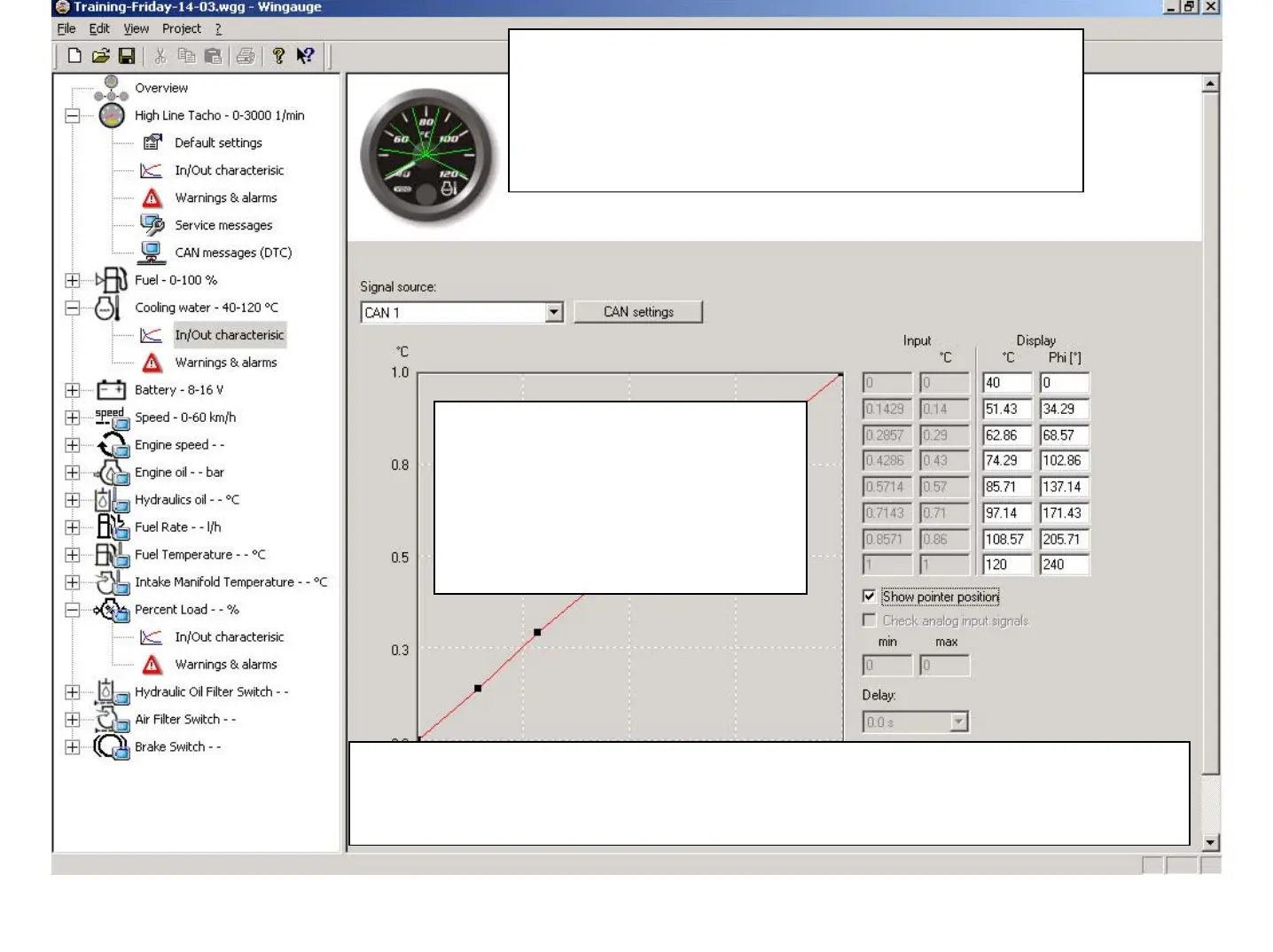

The green lines are shown when the "Show pointer
position" box is checked. They shows the values in
degree for the angle Phi [°] from the table below. This
can be used as test if the values in the table seem to be
correct.
Satellite instruments do require as an additional specification the pair relationship
between the physical measured values (mA, Ohm, V, Hz, ) and the unit ( %,
km/h, °C..).
For Signal Sources delivering
their information via the CAN-
BUS System, it’s enough to build
the pair relationship for unit in (%,
km/h, bar, °C) to the angle Phi [°]
for the Pointer position.
June 2009
Training WinGauge Software
page 36
