VeEX VePal TX130M+ - E1 Rx Data; E1 Vf

The Round Trip Delay (Propagation Delay) measurement works by sending a test pattern. An error is transmitted in the pattern.
The time it takes for the error to reach the receiver is the propagation time through the network.

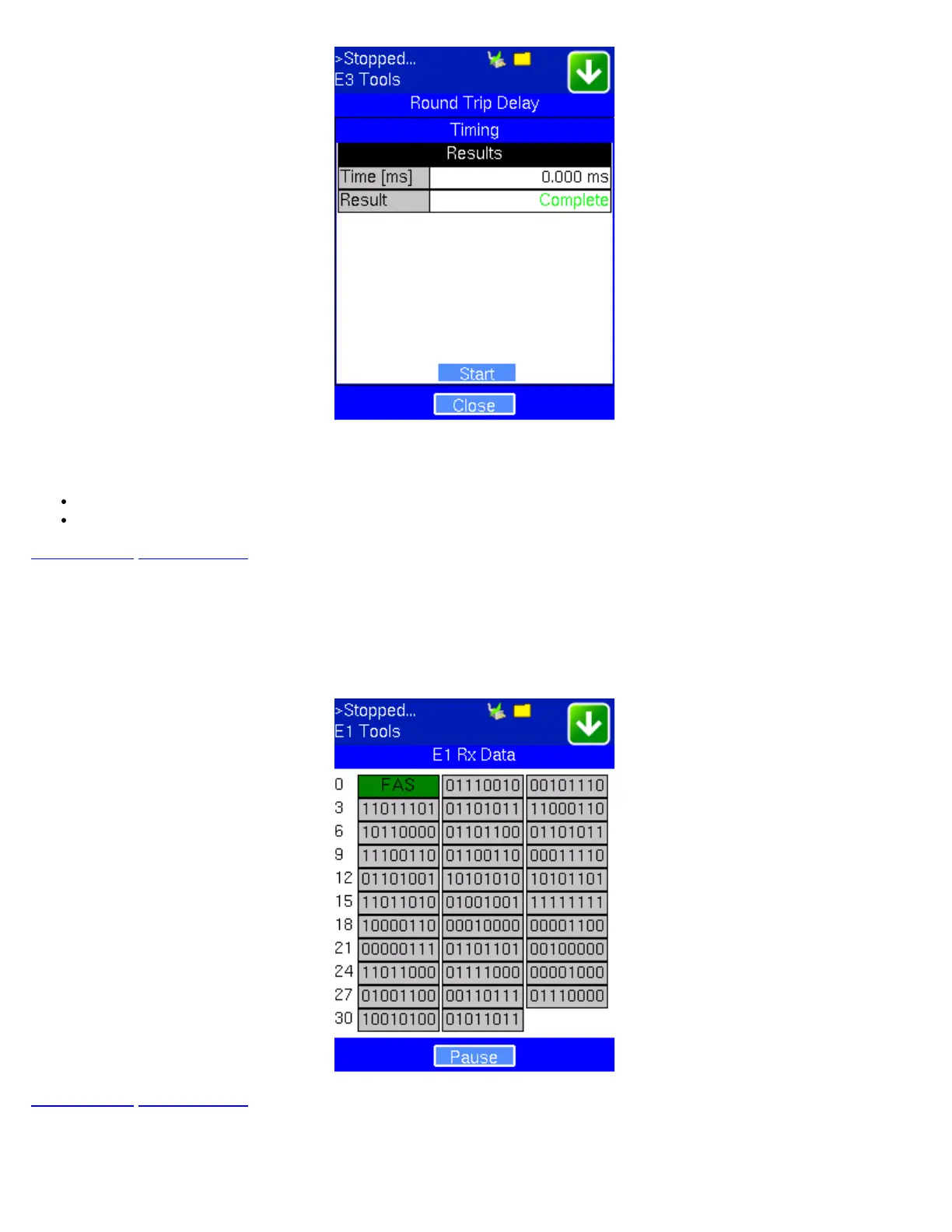

View the Round Trip Delay of a looped back signal
Set check box on Setup Rx pattern to Out-of-Service
Go back to top Go back to ToC
21.5 E1 Rx Data
Tapping the E1 Rx Data the E1 Tools screen displays the PDH E1 Rx Data showing received data and captures the current
timeslots.
E1 Rx Data
Go back to top Go back to ToC
21.6 E1 VF
Tapping the VF the E1 Tools screen displays the VF Tasks showing The VF menu performs a variety of talk/listen functions.
