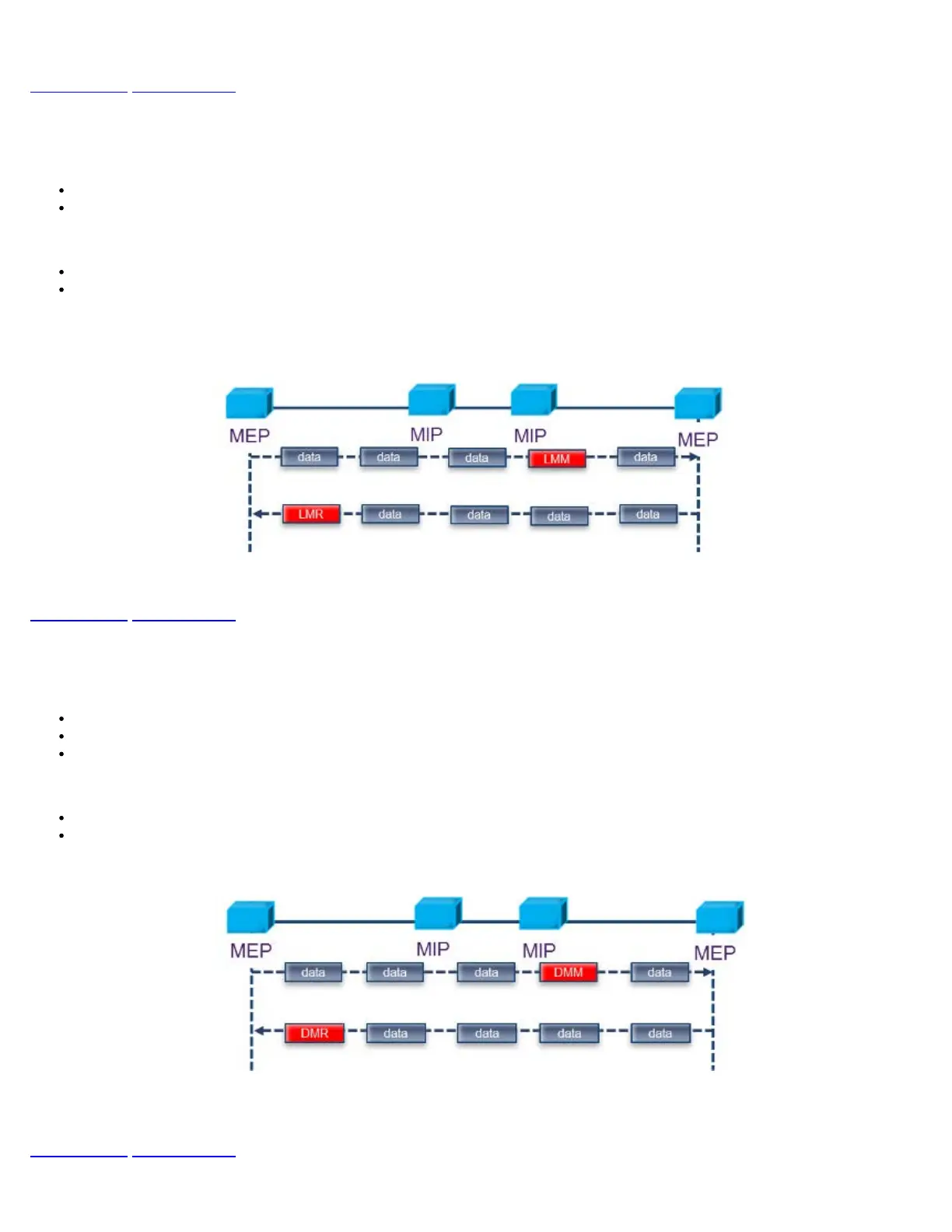

10.3.6 Frame Loss Measurement
Two local counters for each peer MEP:
TxFCf: Counter for in-profile data frames transmitted towards peer MEP
RxFCf: Counter for in-profile data frames received from peer MEP
Single-ended ETH-LM:
On demand OAM
MEP sends LMM frame (Unicast DA or Multicast Class 1 DA) and receives LMR frame (Unicast DA) with counters
CCM frames contain frame counters.
Single Ended Frame Delay Measurement
LMM frames contain frame counters.
Go back to top Go back to ToC
10.3.7 Delay Measurement
On demand OAM for measuring Frame Delay (FD) and Frame Delay Variation (FDV):
TxTimeStampf = Timestamp transmission of DMM frame
RxTimef = Reception time of the DMM frame
RxTimeb = Reception of DMR frame
Two-way ETH-DM:
DMM frame (Unicast DA or Multicast Class 1 DA for multipoint measurement) & DMR frame (Unicast DA)
FD = RxTimeb – TxTimeStampf
Dual Ended Frame Delay Measurement
DMM and DMR frames contain timestamp info.
