Errors tab: The following Errors (Current and Total) are displayed:
Bits: Indicates errors related to test pattern (Bit Error or LSS (Pattern Loss))
BER: Bit Error Ratio
Symbol: Declared when an invalid code-group in the transmission code is detected
FCS/CRC: Number of received frames with an invalid FCS
IP Checksum (Layer 3 only)
Jabber frames: Number of received frames larger than 1518 bytes containing an invalid FCS
Runt frames: Number of received frames smaller than 64 bytes containing an invalid FCS
Giant frames: Number of received frames larger than 1522 bytes containing an invalid FCS
BERT Results - Summary BERT Results - Errors
Go back to top Go back to ToC
7.2.3 Events
Events tab: A time stamped record or log of anomalies, alarms, test status (start/stop) and test application are displayed.
Go back to top Go back to ToC
7.2.4 Alarms
Alarms tab: The following Alarms (Current and Total) are displayed:
LOS: Loss of Signal
LOS Sync
Pattern Loss: Indicates errors related to test pattern
Service Disruption:
Current
Total
Min/Max
Times

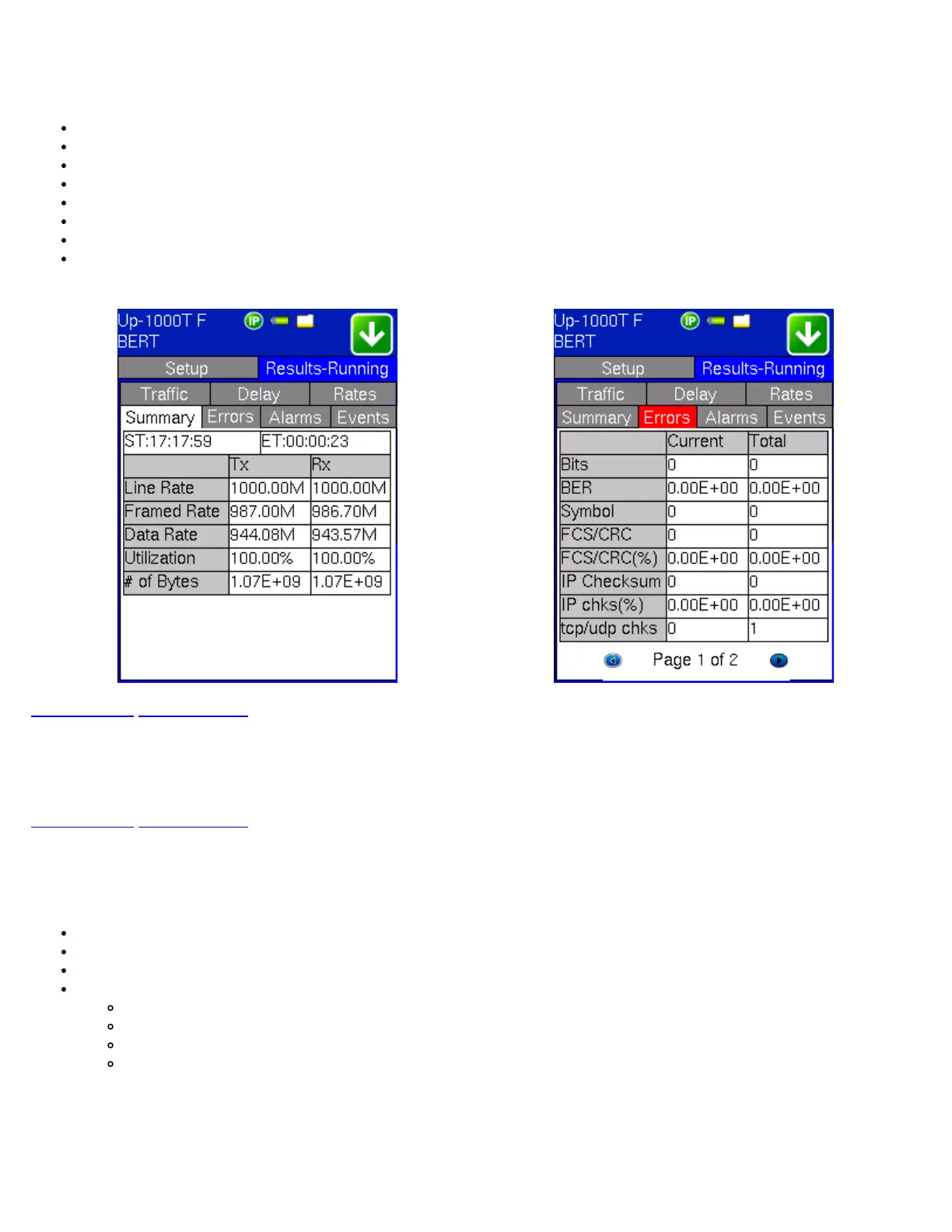

BERT Results - Events BERT Results - Alarms
