10.0 OAM Testing
Overview
Setup
Link Level 802.3ah OAM Setup
Service Level OAM: 802.1ag/Y.1731
General Setup Process
Service Level OAM Configuration Parameters
Results
Link OAM Results
OAM Service Results
Definitions
802.3ah OAM Discovery
IEEE 802.1ag Definitions
Continuity Check Messages (CCM)
802.1ag/Y.1731 Connectivity Fault Management Functions
Link Trace and Loopback Messages
Frame Loss Measurement
Delay Measurement
Go back to top Go back to ToC
Overview

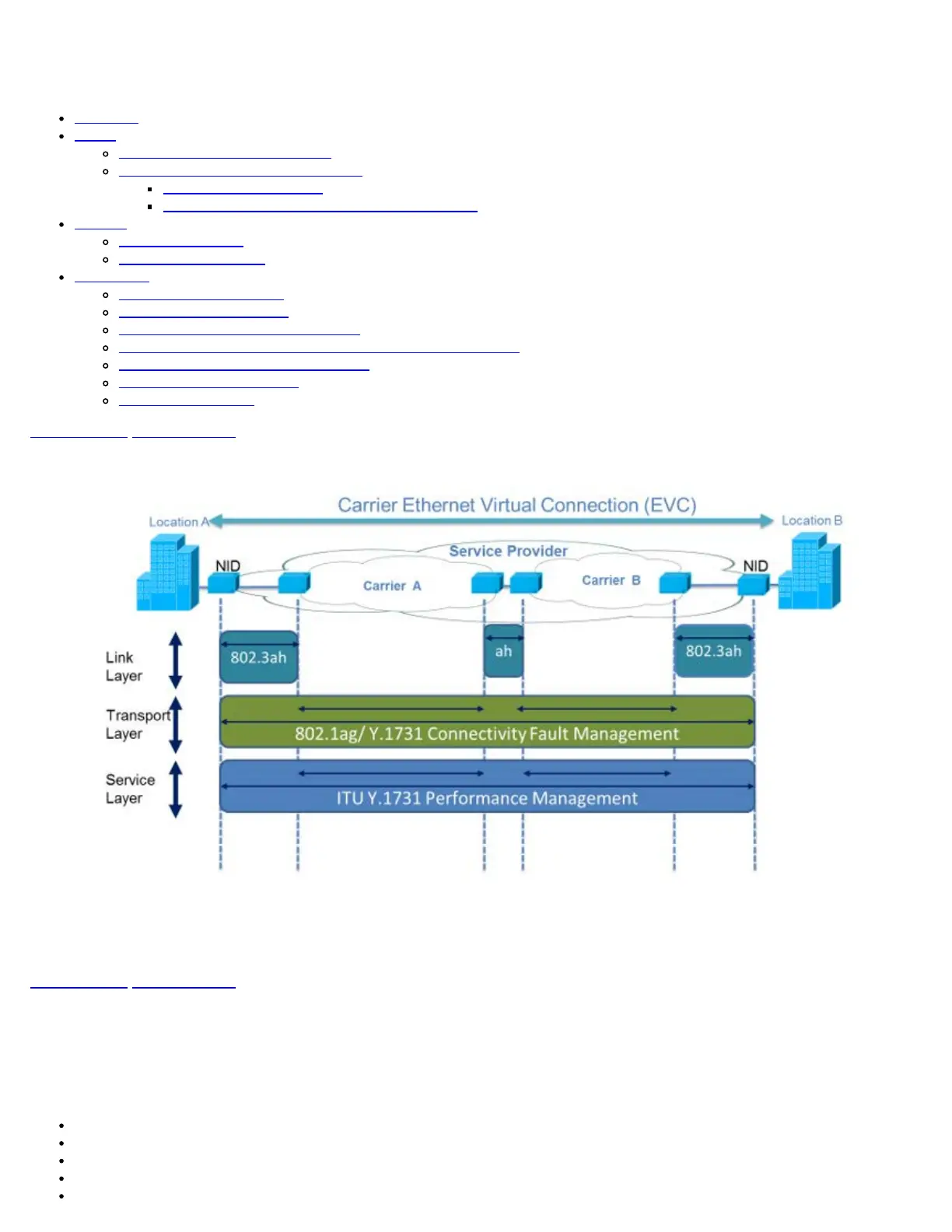

Ethernet OAM provides automatic defect detection, fault management and performance monitoring tools for network links and end-to-end
Ethernet Virtual Circuits (EVC). The OAM service supports IEEE 802.3ah, IEEE 802.1ag, and ITU-T Y.1731. The OAM feature can be
accessed through the Throughput menu (Throughput > Setup > OAM).
Go back to top Go back to ToC
10.1 OAM Setup
10.1.1 Link Level 802.3ah OAM Setup
802.3ah functions include:
Discovery
Link Performance Monitoring
Remote loopback
Fault detection
Collecting Performance Statistics (function not supported in current software release)
TX130M+_e-manual_D07-00-051P_RevD00
