and 4 are also displayed with the test options.
Select the available test options on Page 3 and 4.
For 802.1ag the following are available:
Continuity Check Messages (CCM), Loopback Message (LBM) and Link Trace Message (LTM)
For Y.1731 the following are available:
Continuity Check Messages (CCM), Loopback Message (LBM), Link Trace Message (LTM), Frame Loss (LM) and Delay (DM).
Tap Start to start the test.

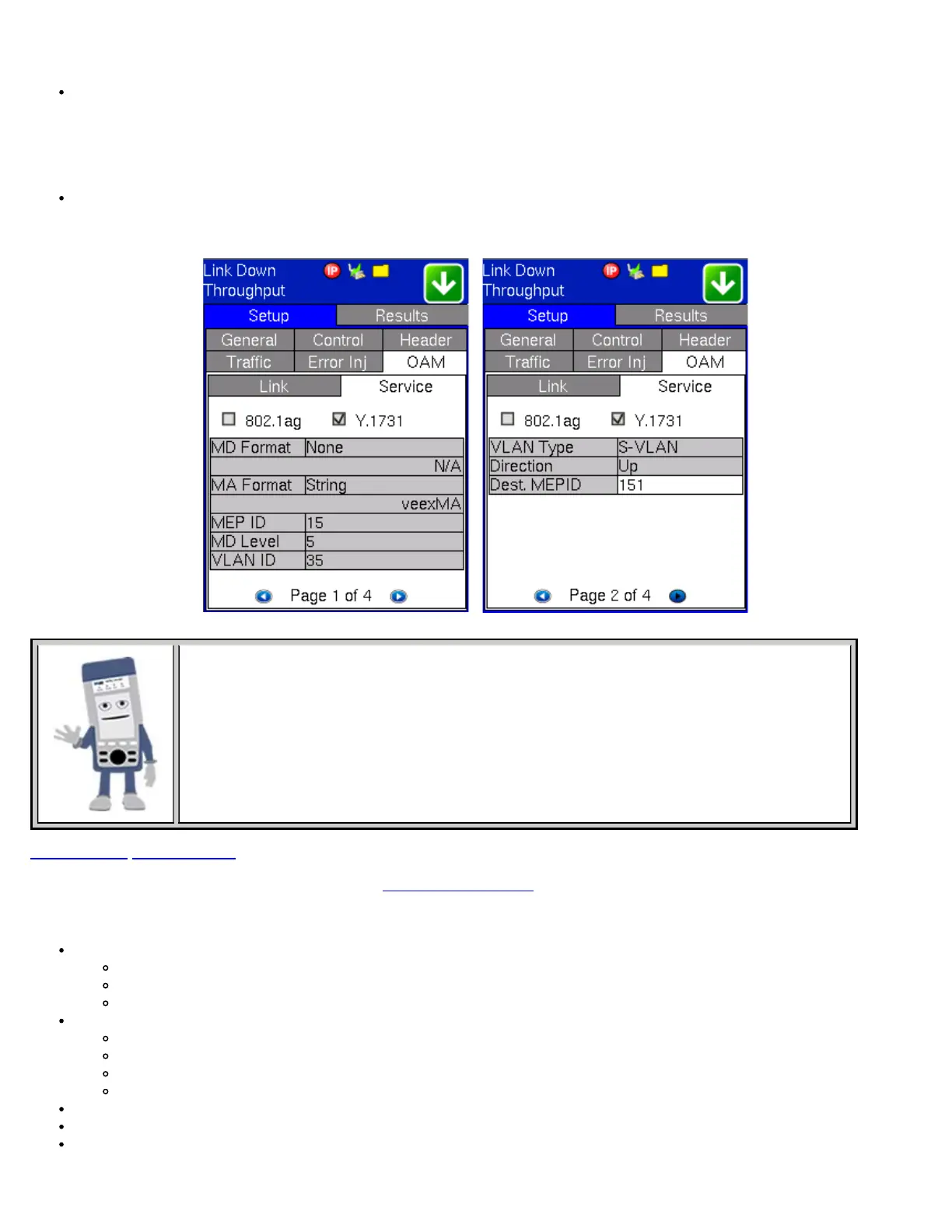

OAM Service Level (Page 1) OAM Service Level (Page 2)
Difference between 802.1ag and Y.1731
802.1ag enables Continuity Check Messages (CCM), Loopback Message (LBM) and Link Trace
Message (LTM). ITU-T Y.1731 provides all of the 802.1ag functionality with additional performance
monitoring capabilities including Frame Loss (LM) and Delay (DM).
Go back to top Go back to ToC
Service Level OAM Configuration Parameters (see
section 10.3 Definitions for more details)
Page 1:
MD Format: Configure the format of the Maintenance Domain name
None: Null field. No maintenance domain name present
MAC+2octet: User configurable MAC address + 2 octets
String: User configurable ASCII character string
MA Format: Configure the format of the Maintenance Association name
VID: User configurable VLAN ID, as configured in the Primary VLAN ID level
String: User configurable ASCII character string
2 octet: 2 octet integer
ICC-Based: User configurable ITU-T Y.1731 ITU Carrier Code (ICC) based
MD Level: Maintenance domain level. 0 to 7.
MEP ID: End point identifier of local device. 1 to 8191.
VLAN ID: VLAN ID associated with the MA or MEG.
Page 2:
