12.1.2 Mode (SyncE test mode)

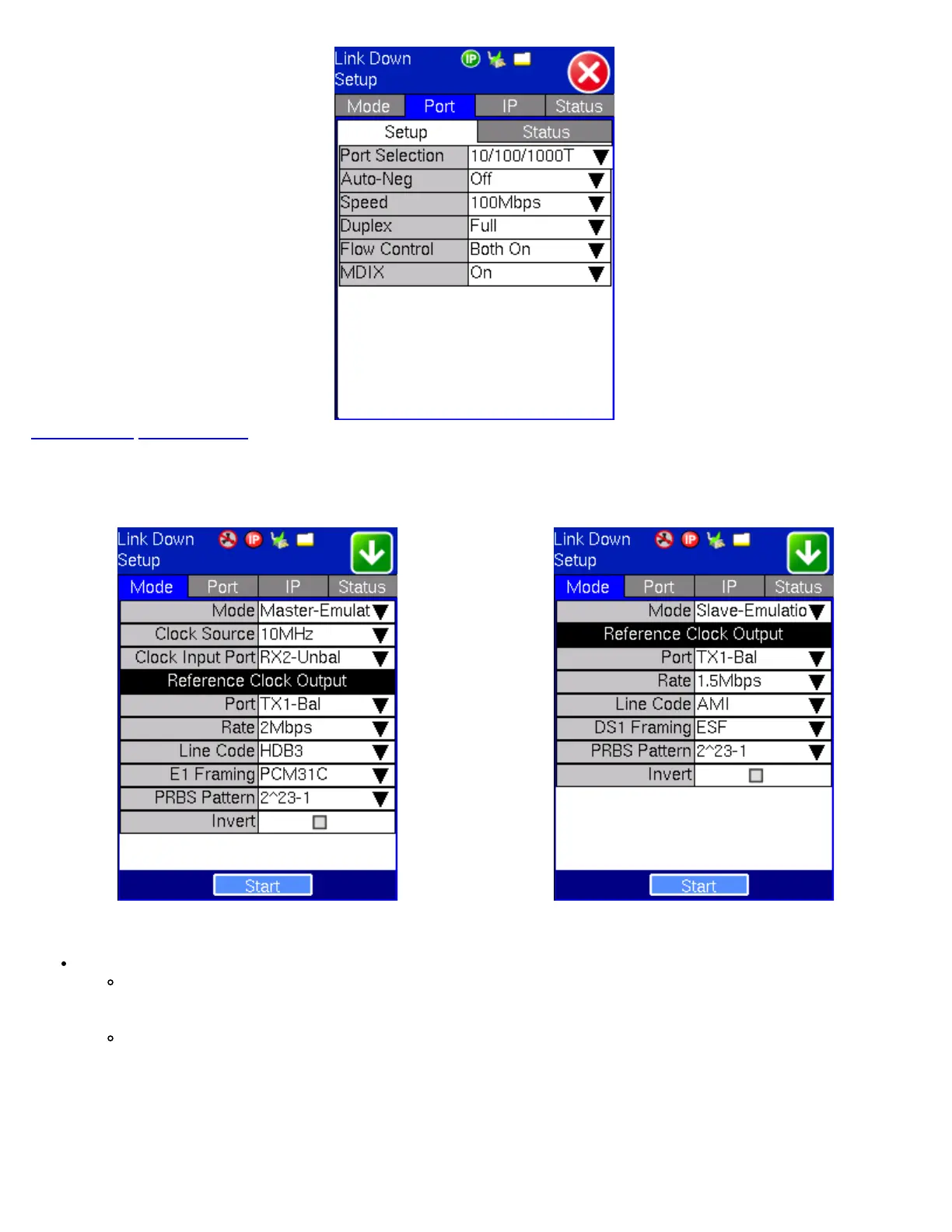

SyncE Master-Emulation Mode SyncE Slave-Emulation Mode
The Mode setup parameters are as follows:
Mode: There are four test modes available: Master Emulation, Slave Emulation, Master Sync, and Slave Sync.
Master Emulation - Emulates a SyncE Master clock device out of the Ethernet test port (10/100/1000BaseT or
100/1000BaseX). Uses an internal or external reference clock. The reference clock used on the SyncE link can be
made available for other network elements out of the PDH TX port.
Slave Emulation - Emulates a SyncE Slave clock device from the Ethernet test port (10/100/1000BaseT or
100/1000BaseX). The SyncE Slave recovered clock can be regenerated out of the PDH TX port
with
a different
clock format and is synchronized.
Master Sync Mode Slave Sync Mode
