7.2.6 Rates

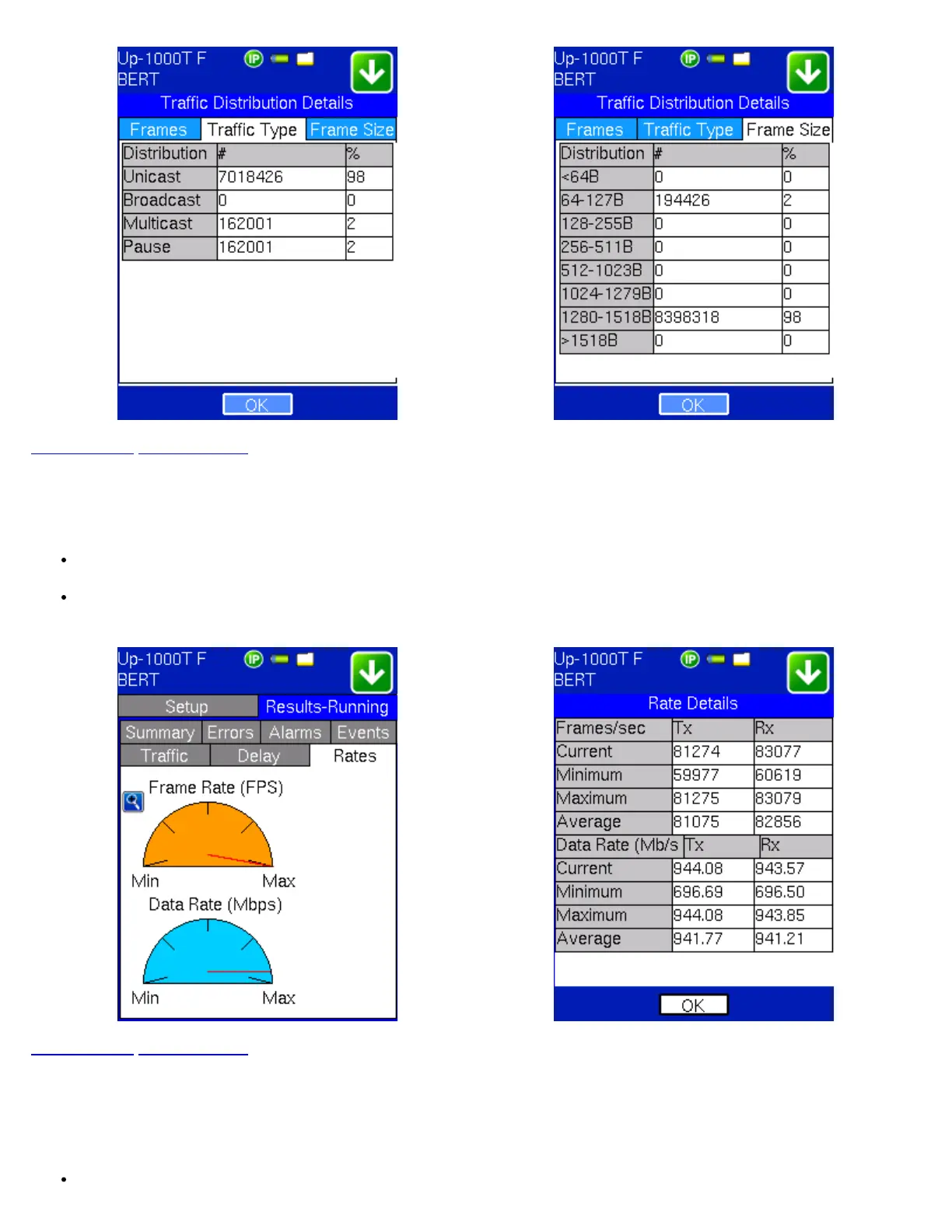

Rates tab: Rate statistics are displayed graphically and in tabular format:
Frame rate in Frames per second (FPS): Number of received frames (including bad frames, Broadcast frames and
Multicast frames)
Data rate in Mbps: Received data rate expressed in Mbps
BERT Results - Rates Graph BERT Results - Rates Details
Go back to top Go back to ToC
7.2.7 Delay
Delay tab: Delay measures the interpacket gap, start of the frame, and preamble duration. Frame arrival statistics are displayed
in tabular format:
Current
