7.2.5 Traffic
Traffic tab: The following Traffic statistics are displayed:
Frame Type: Test and non-test frames
Traffic type: Layer 2 and Layer 3 Unicast, Broadcast and Multicast frame percentage
Frame size distribution
Pause frames
Frames tab: The following Frame distribution statistics are displayed in count (#) and percentage (%):
Received (RX) frames:
Total frames
Test frames
VLAN tagged frames
VLAN stacked frames
MPLS labeled frames
MPLS stacked frames
Non-test frame
Transmitted (TX) frames:
Total frame
Paused frames: Transmitted and Received

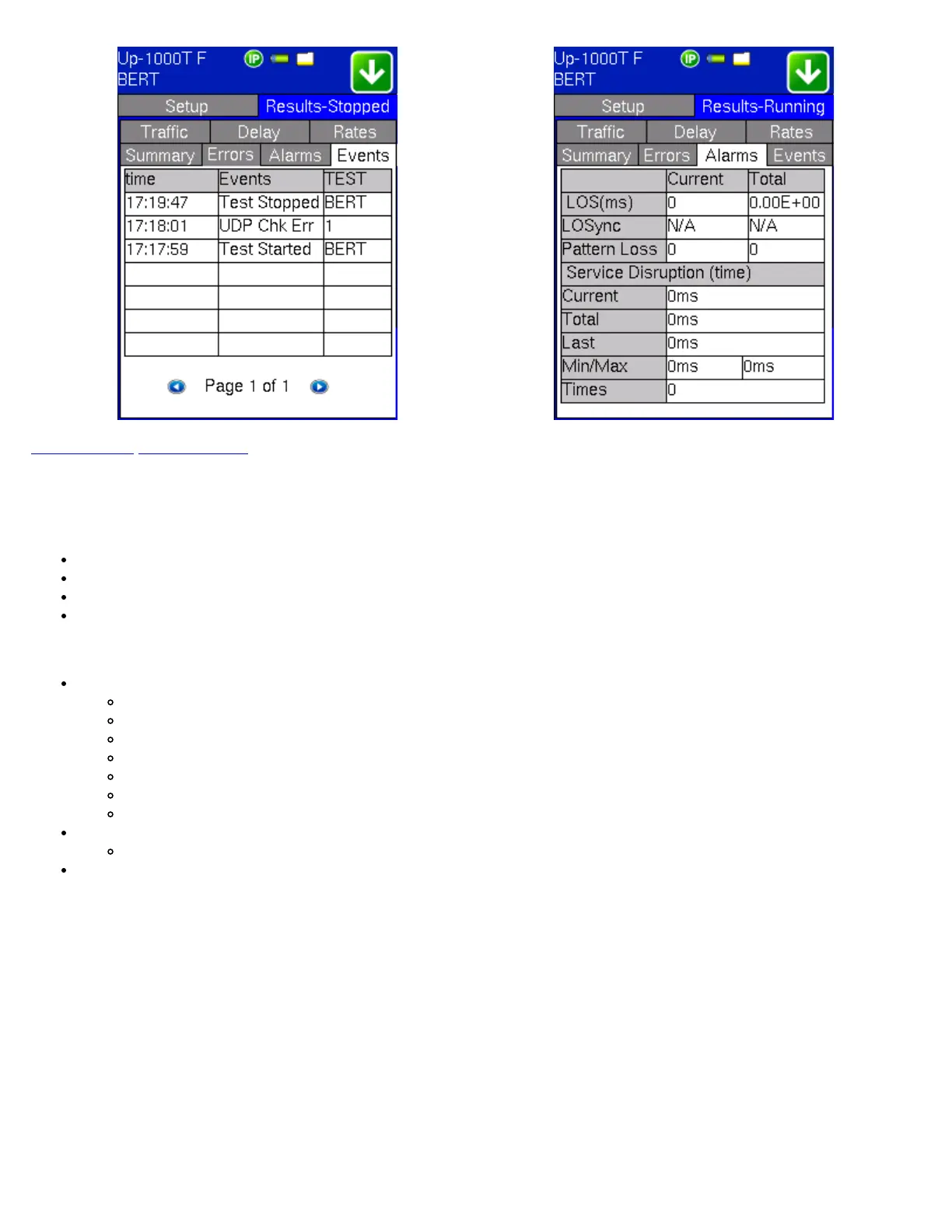

BERT Results - Traffic Graph BERT Results - Traffic / Frames
