VeEX VePal TX130M+ - Dtmf; Dbackup

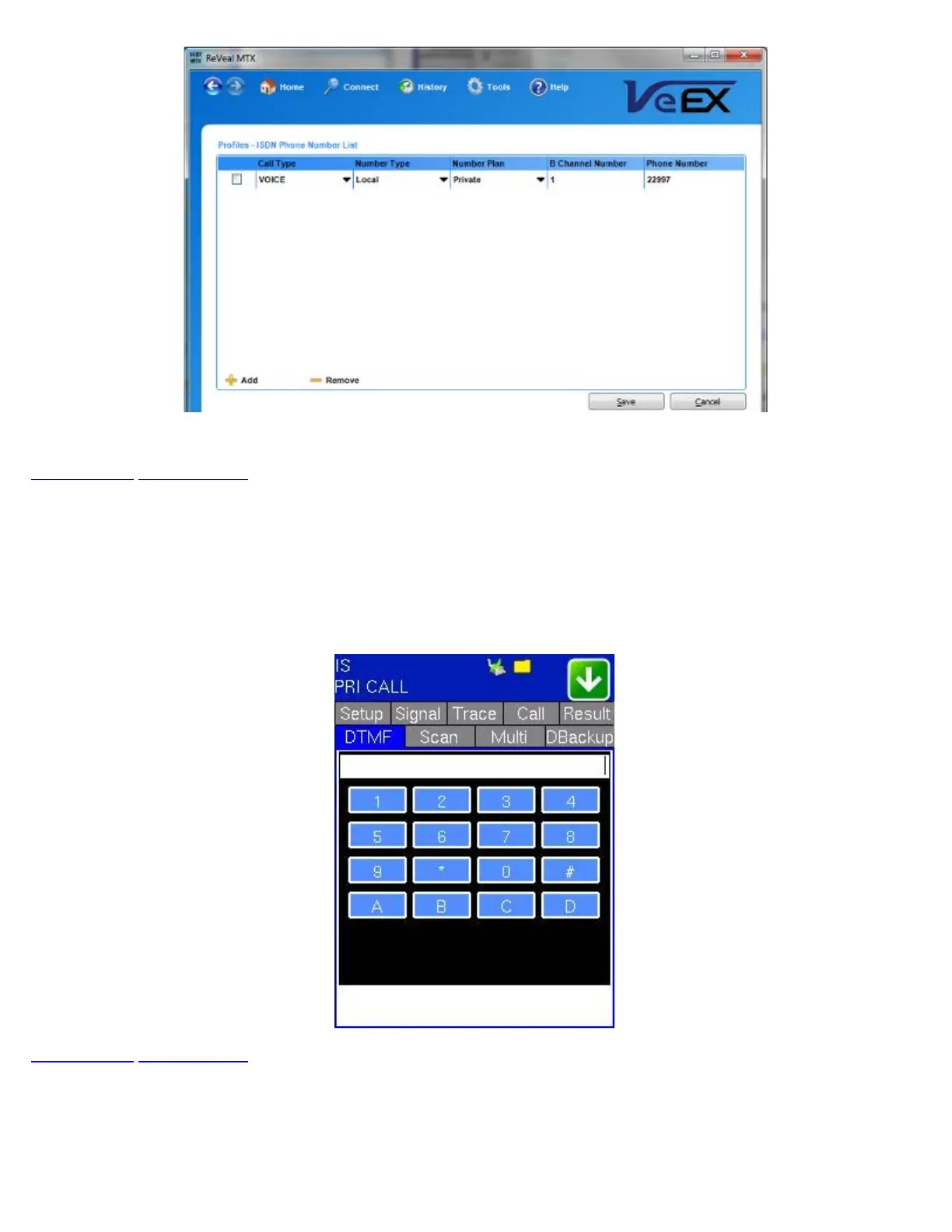

Alternatively, the user can prepare a Multi Call list using ReVeal MTX software and upload the list to the test set.
Go back to top Go back to ToC
24.1.8 DTMF
During the call DTMF tones can be transmitted.
To transmit DTMF tones, access the DTMF tab. An alphanumeric keypad will be displayed. DTMF tones are transmitted as soon
as they are typed.
DTMF
Go back to top Go back to ToC
24.1.9 DBackup
To setup a backup D Channel, go to the Dbackup tab and press Swap. This operation is only applicable for 46B+2D Channel
Config. Any other Channel Config will yield an error message when pressing Swap.
DBackup DBackup Notice
TX130M+_e-manual_D07-00-051P_RevD00
