VLAN Type: C-VLAN or S-VLAN
Direction
Up: Inward facing MEP used for MA/MEG with a wider reach (i.e., end-to-end, beyond a single link).
Down: Outward facing MEP used for MA/MEG spanning a single link.
Dest MEP ID: MEP ID of the MEP end point.
Page 3:
CCM
Enable: Enable sending Continuity Check messages
Disable: Disable sending Continuity Check messages
Priority: 802.1p priority in the CCM VLAN Tag
Tx Interval: Choose from the supported CCM intervals: 1 s, 10 s, 1 min, 10 min
Page 4 (802.1ag):
Test Function: LTM / LBM
Destination
MEP: Sends LTM/LBM to the destination MEP as configured on Page 1.
MAC: Sends LTM/LBM to a destination MAC address.
Destination MAC - Configure the destination MAC address used for the LTM/LBM. This field is only used if Destination is set to
MAC. If destination is set to MEP, this field is ignored.
Priority: 802.1p priority in the LTM/LBM VLAN Tag.
# Messages: Enter the number of Loopback messages to be sent (LBM test only).
TTL: Enter the Time to Live field in the LTM message. TTL will be decremented each time it crosses a hop (MIP) (LTM test only).
Page 4 (Y.1731):
Test Function: LTM / LBM / LMM / DMM
Destination
MEP: Sends LMM/DMM to the destination MEP as configured on Page 1.
MAC: Sends LMM/DMM to a destination MAC address.
Destination MAC: Configure the destination MAC address used for the LMM/DMM. This field is only used if Destination is set to
MAC. If destination is set to MEP, this field is ignored.
Priority: 802.1p priority in the LMM/DMM VLAN Tag.
# Send: Configure the number of LMM/DMM frames to send up to 50.
Rate : Configure the LMM/DMM frame interface rate (min: 100 ms; max: 10 seconds).

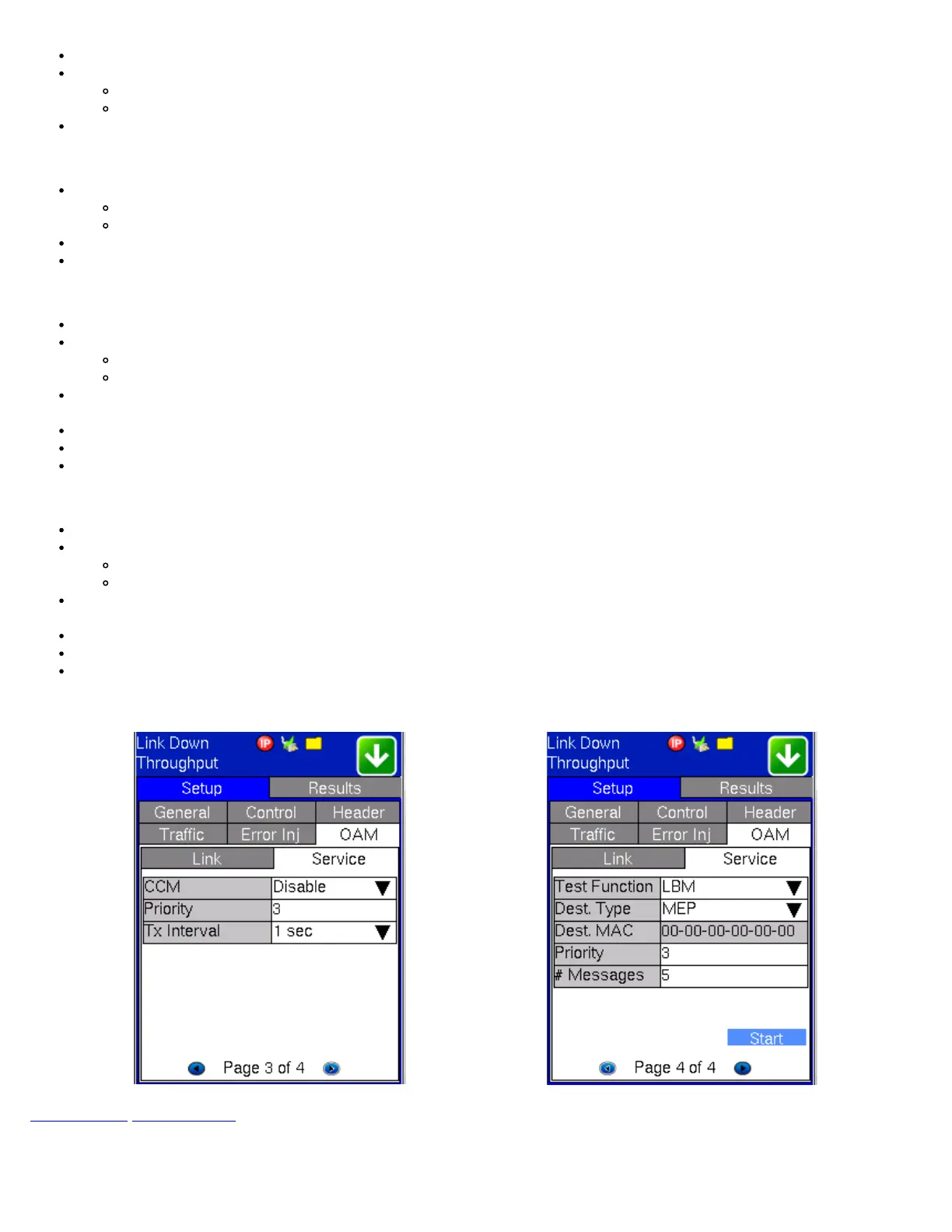

OAM Service Level (Page 3) OAM Service Level - LTM
Go back to top Go back to ToC
10.2 OAM Results
10.2.1 Link OAM Results
