Link OAM Discovery
The discovery page lists Local (the current test unit) and Remote (far-end device) parameters.

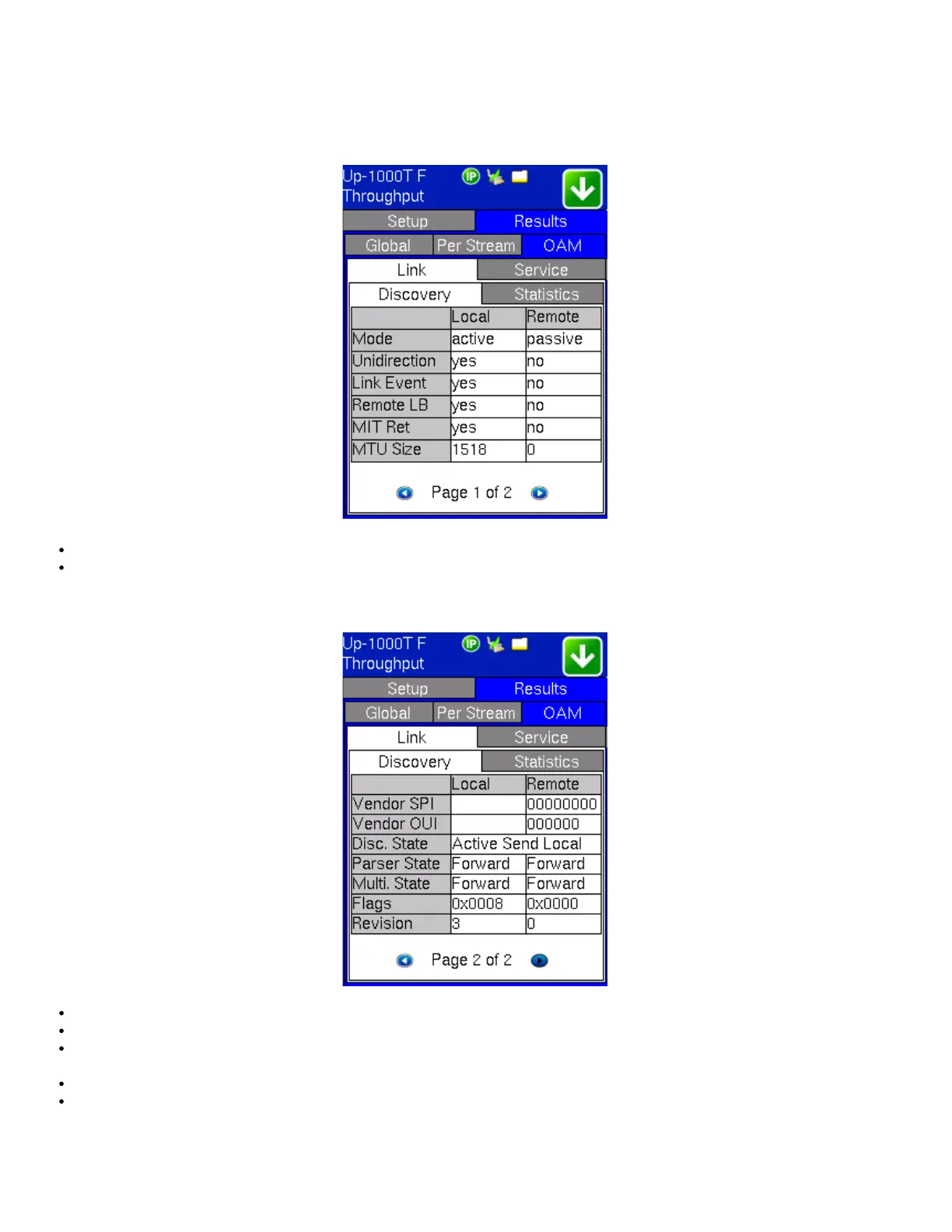

OAM - Link - Discovery (Page 1)
Mode: Lists Active or Passive mode configuration.
Supported and unsupported capabilities advertised during Discovery are listed, including: Unidirection, Link Events, Remote
Loopback, MIB Retrieval, and MTU Size.
OAM - Link - Discovery (Page 2)
Vendor SPI and OUI: Organization Unique identifier and Vendor specific information (similar to MAC address fields).
Discovery State: Send Any indicates the device was successfully discovered.
Parser/Multiplexer state: Forward indicates the device is forwarding regular traffic transmission. Loopback/drop indicates
loopback is enabled.
Flags: Flag decode is listed in the graphic below.
Revision: Number of times the configuration has been modified since discovery.
Flag Decode
TX130M+_e-manual_D07-00-051P_RevD00
