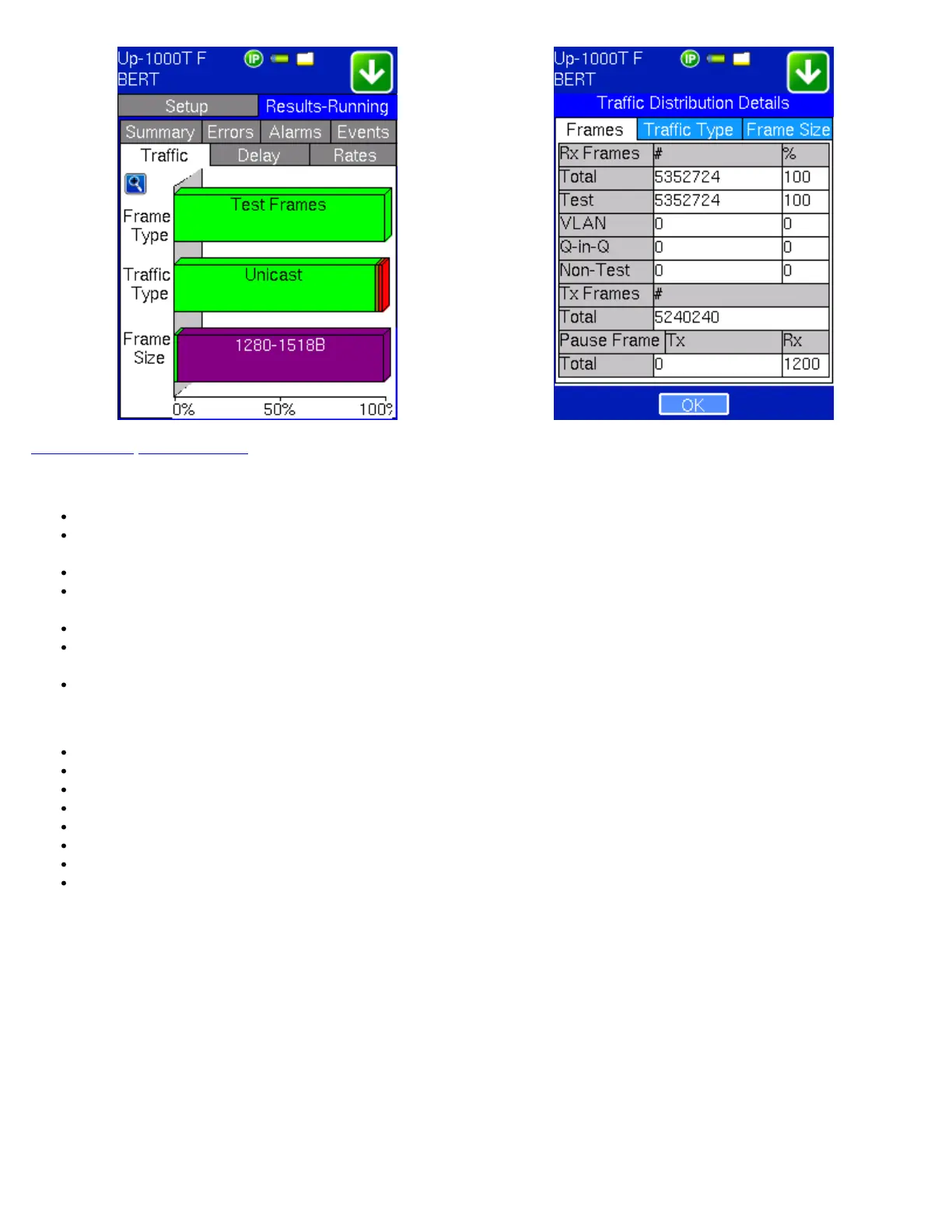

Traffic Type tab: The following Traffic distribution statistics are displayed in Count (#) and Percentage (%):
Layer 2 Unicast frames: Number of Unicast frames received without FCS errors
Layer 2 Broadcast frames: Number of Broadcast frames received without FCS errors; Broadcast frames have a MAC
address equal to FF-FF-FF-FF-FF-FF
Layer 2 Multicast frames: Number of Multicast frames received without FCS errors
Pause frames: Number of valid flow-control frames received; Frames having a type/length field equal to 8808h are counted
as pause frames
Layer 3 Unicast frames: Number of Unicast frames received without FCS errors
Layer 3 Broadcast frames: Number of Broadcast frames received without FCS errors; Broadcast frames have a MAC
address equal to FF-FF-FF-FF-FF-FF
Layer 3 Multicast frames: Number of Multicast frames received without FCS errors
Frame Size tab: The following Frame distribution statistics are displayed in count (#) and percentage (%):
< 64 byte frames
64-127 byte frames
128-255 byte frames
256-511 byte frames
512-1023 byte frames
1024-1279 byte frames
1280-1518 byte frames
> 1518 byte frames - Jumbo frames
BERT Results - Traffic Type BERT Results - Traffic Frame Size
